MatixGO BTicino

Connected 2-ways switch

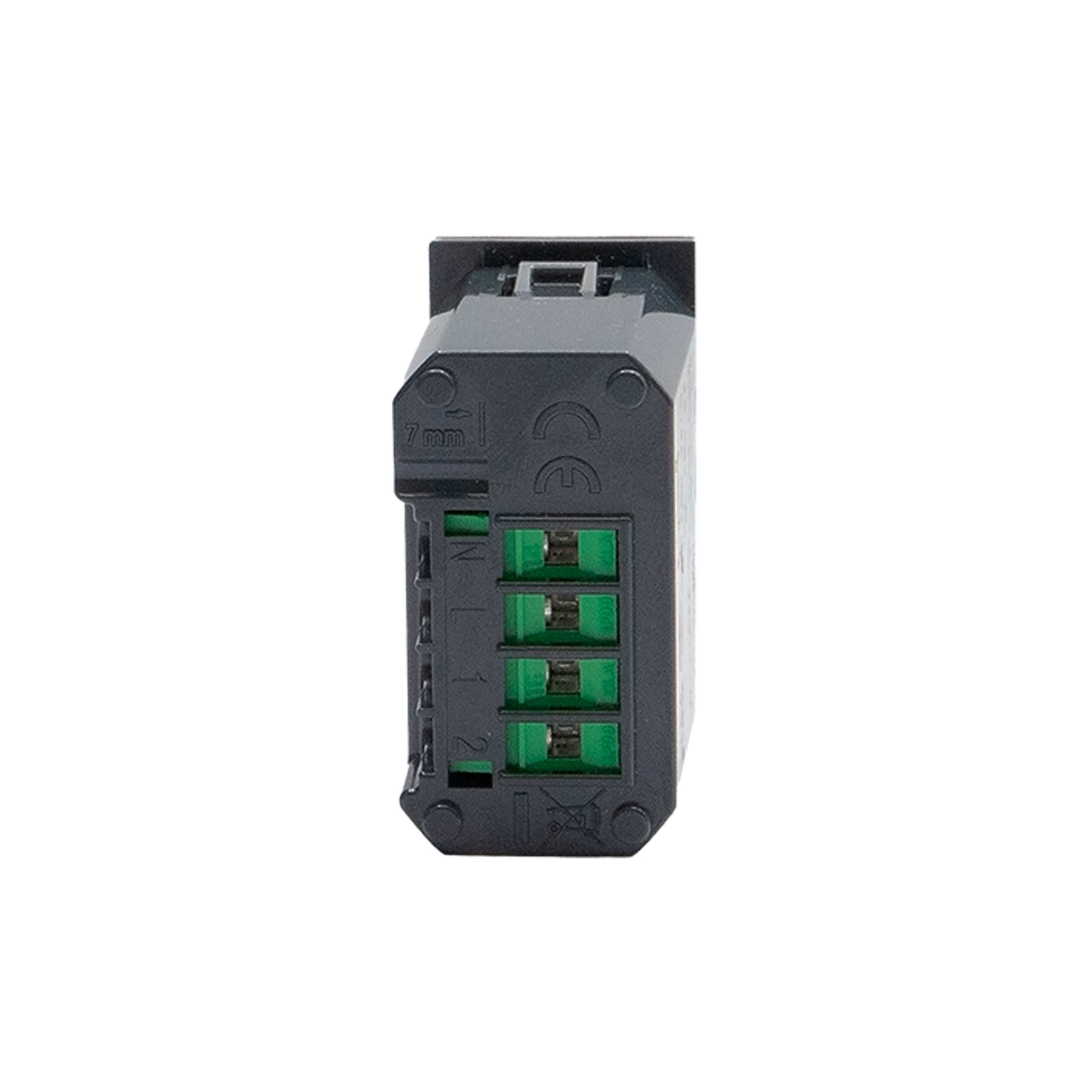

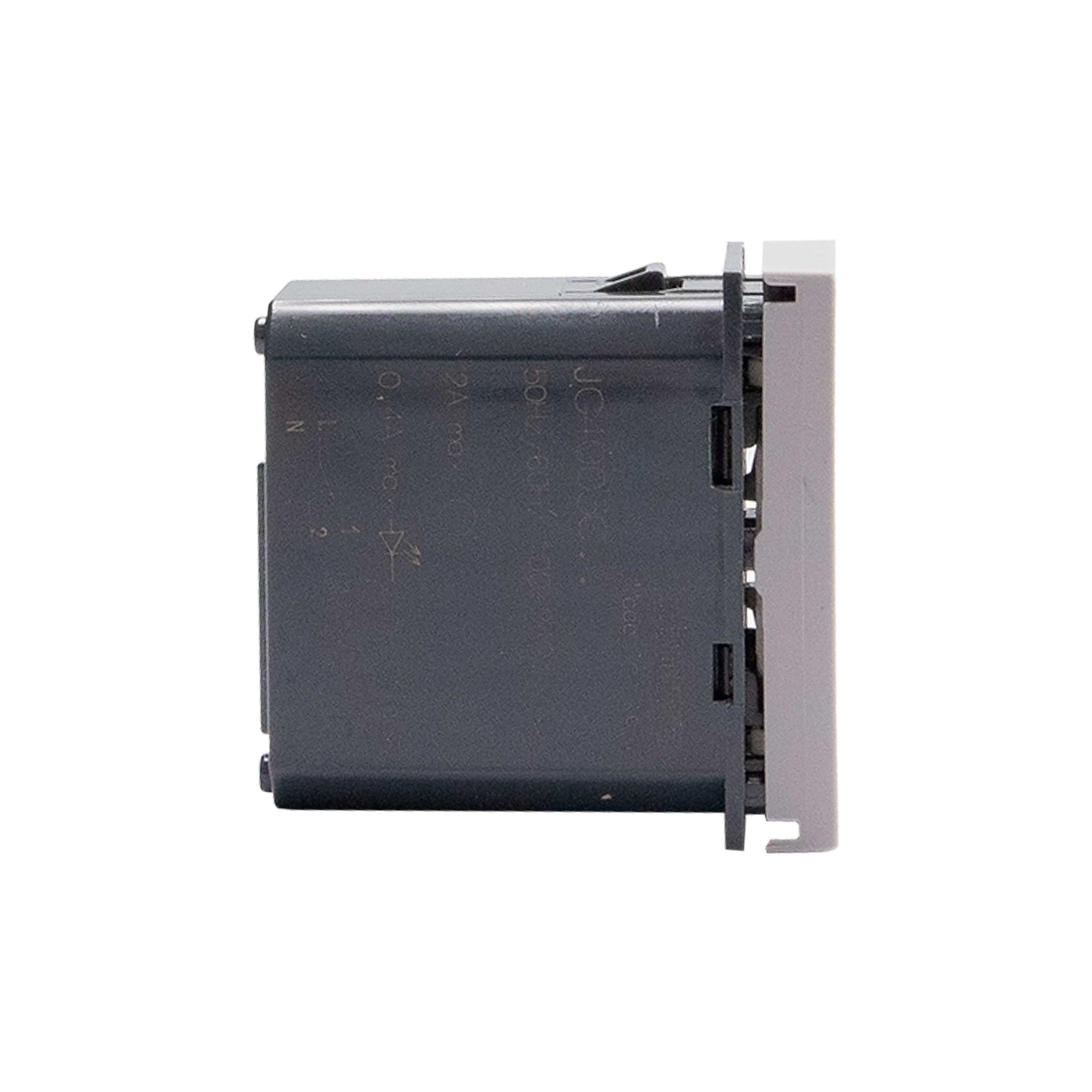

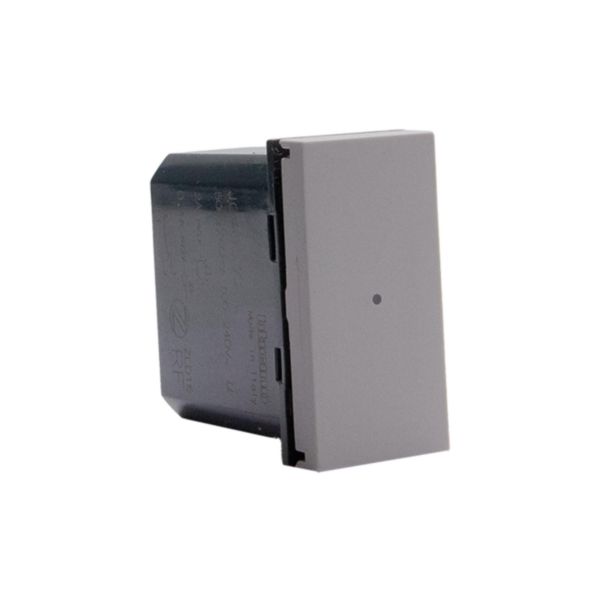

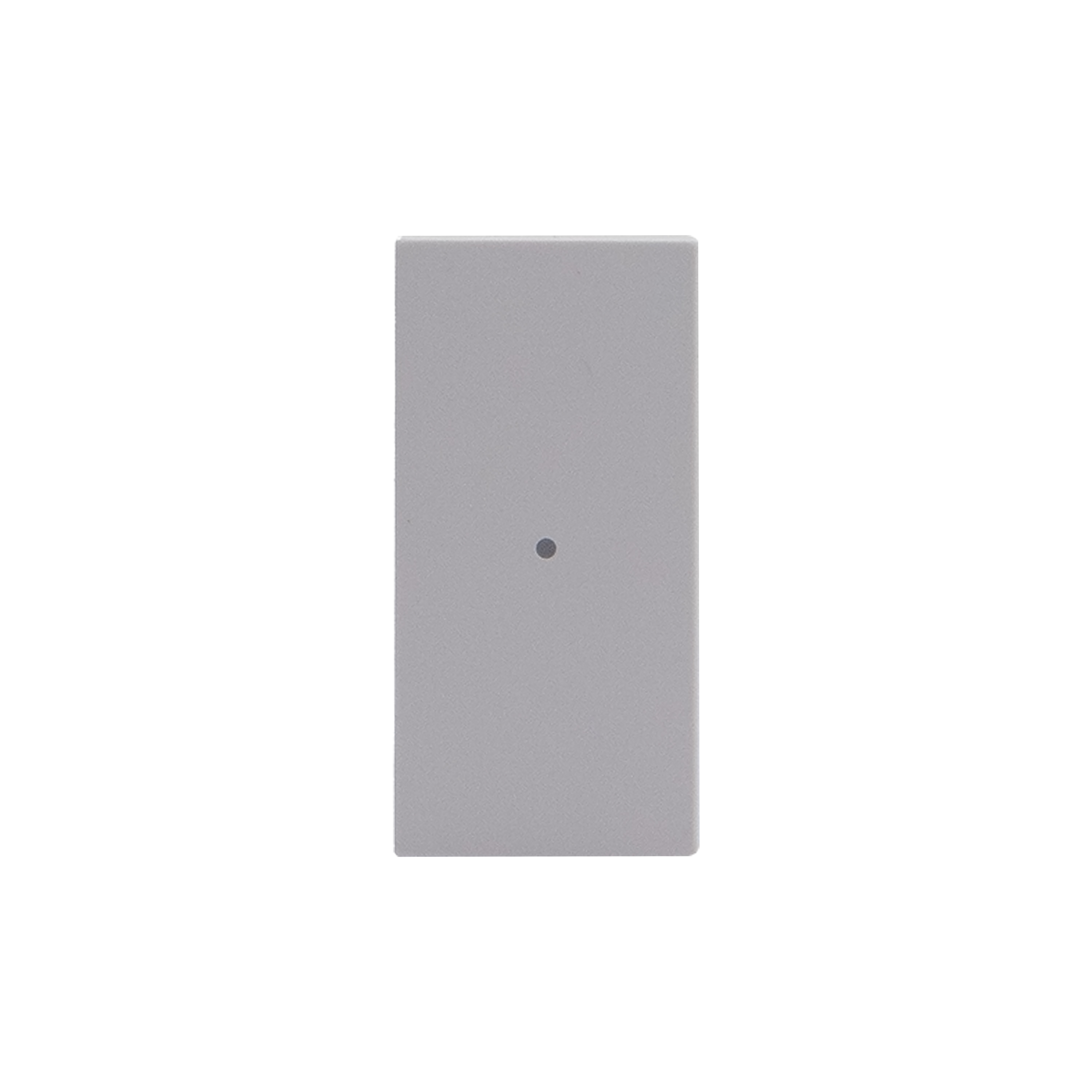

Name: Connected 2-ways switch
Brand: BTicino
SKU: BT-JG4003C
Availability: InStock

BT-JG4003C | 8005543715314

Connected 2-ways switch. It allows to control lights locally or remotely. The connected 2ways switch has the same installation and usability of a tradidional 2ways switch and it is compatible with all loads with max pover 250 W. It s equiped with a blue LED light used always on for localization modality or on, when the light is on for the load status modality. It can be associated with “wireless light switches”. Caution: Must be connected to the neutral.Power supply 110-230 Va.c. - 1 module - Grey

Compare

Description

The connected switch allows you to control your lights remotely via the Home + Control app, or by using your voice.

Product characteristics

With neutral
Compatible with all lamp types up to 250 W
LED indicator with locator function which can be activated in the app
Color Grey
Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.

Recommendations / Restrictions

To connect your switch, you first need to purchase and install a MatixGO with Netatmo connected starter pack. To control it as a two-way switch, you need to pair one or more MatixGO with Netatmo wireless switches with it.

Products benefits

Installation

The MatixGO with Netatmo connected switch is easily installed in place of an existing flush-mounting switch

Usage

Voice control of your lights via a voice assistant

Advantages

Perfect aesthetic integration with the installed wiring devices

Technical Characteristics

Assembly arrangement Basic element with central cover plate

Model Relay

Type of load Universal and LED Retrofit

Substation input Yes

Light value memory No

Applicable with button No

Applicable with movement sensor Yes

Applicable with presence indicator No

Applicable with time switch/timer Yes

Applicable with transmission button Yes

Applicable with infrared button No

Mounting method Flush-mounted

Material Plastic

Material quality Thermoplastic

Surface protection Lacquered

Surface finishing Matt

Colour Grey

RAL-number (similar) 7035

Transparent No

Nominal voltage 230 V

Frequency (Min-Max) 50-60 Hz

Rated current 2.2 A

Switch capacity (Min-Max) 0-500 W

Number of channels 1

Type of fastening Other

Min. depth of built-in installation box 50 mm

Compatible with Apple HomeKit Yes

Compatible with Google Assistant Yes

Compatible with Amazon Alexa Yes

IFTTT support available No

Width 22.5 mm

Height 45 mm

Depth 45 mm

Built-in depth 37 mm

degree of impact strength (IK) IK04

Degree of protection (IP) IP40

Operating / setting temperature (Min-Max) 5-45 °C

Storage temperature (Min-Max) 0-45 °C

Standby consumption 3.5 mA

Mandatory neutral Yes

Terminal marking indication Yes

Stress test conformity (1000V) No

Halogen free Yes

Antimicrobial treatment No

Connection type Screwed terminal

Number of terminals 4

Terminals capacity (Min-Max) 1.5-2.5 mm²

Cable section (Min-Max) 1.5-2.5 mm²

Label space/information surface No

Contains Batteries and/or Accumulator No

Connected object Yes

Operating method Zigbee

Application store for download App Store, Google Play Store

Programming way Smartphone apps

With voice command Yes

Programmable Yes

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri

Application name Home + Control

Product use function Lighting management

Documentation

Instruction Use

LE14086AB | PDF (915 KB) | IT · EN · FR · DE · ES · NL · PT · RU · AR

Agreement

LGUWBNODNT | FILE (529 KB) | EN · FR

Catalog Commercial Page

CAT_MTXGO | PDF (24.9 MB) | EN
