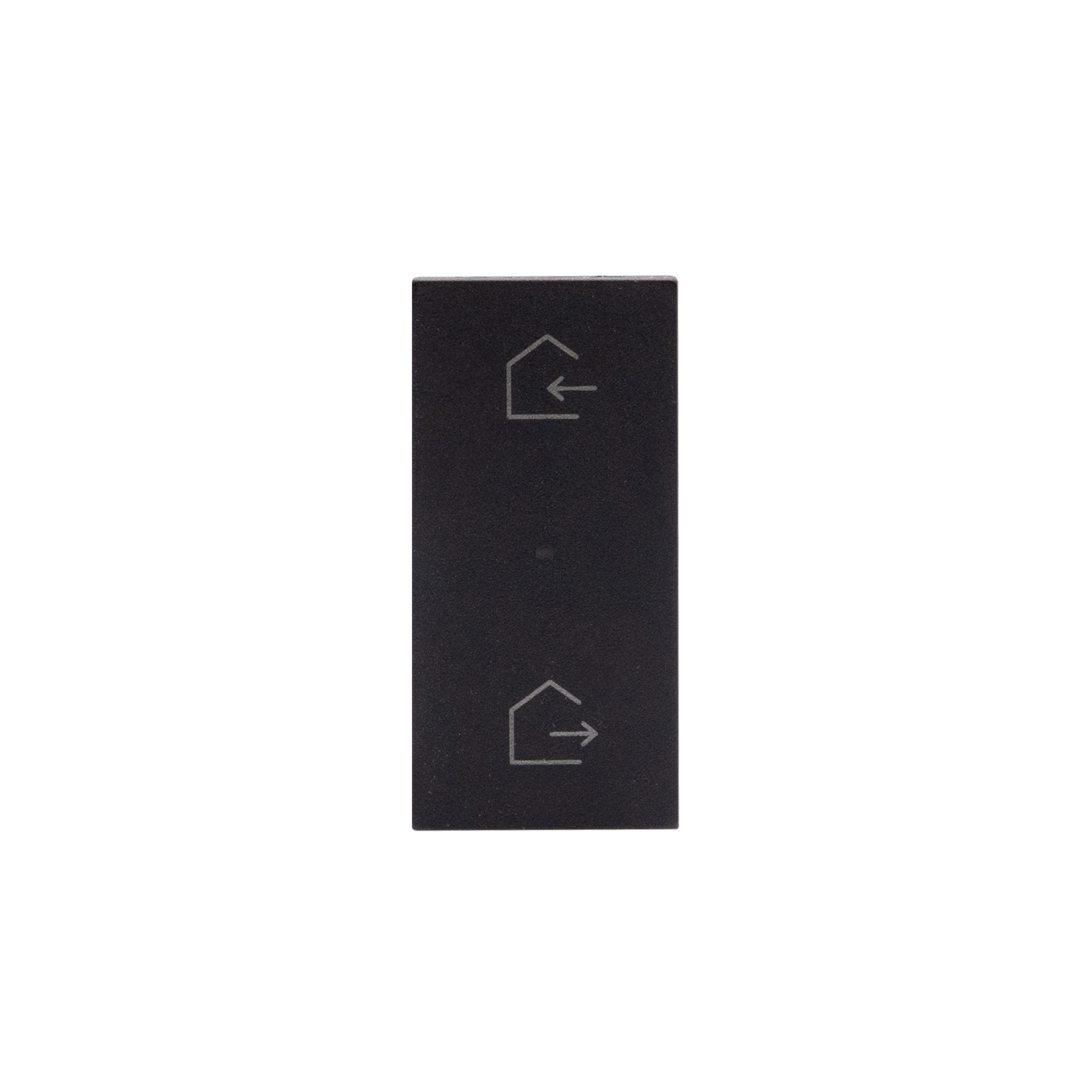

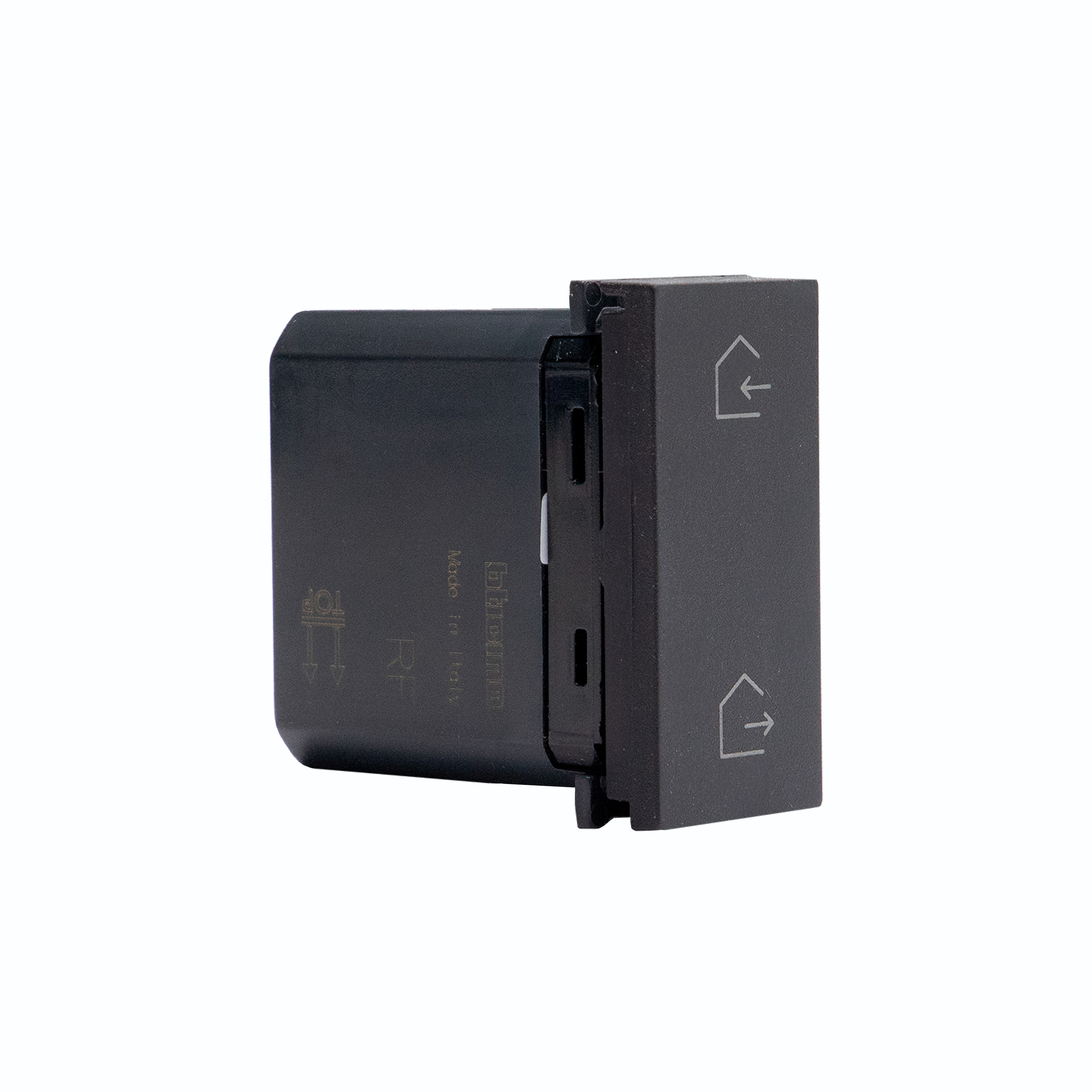

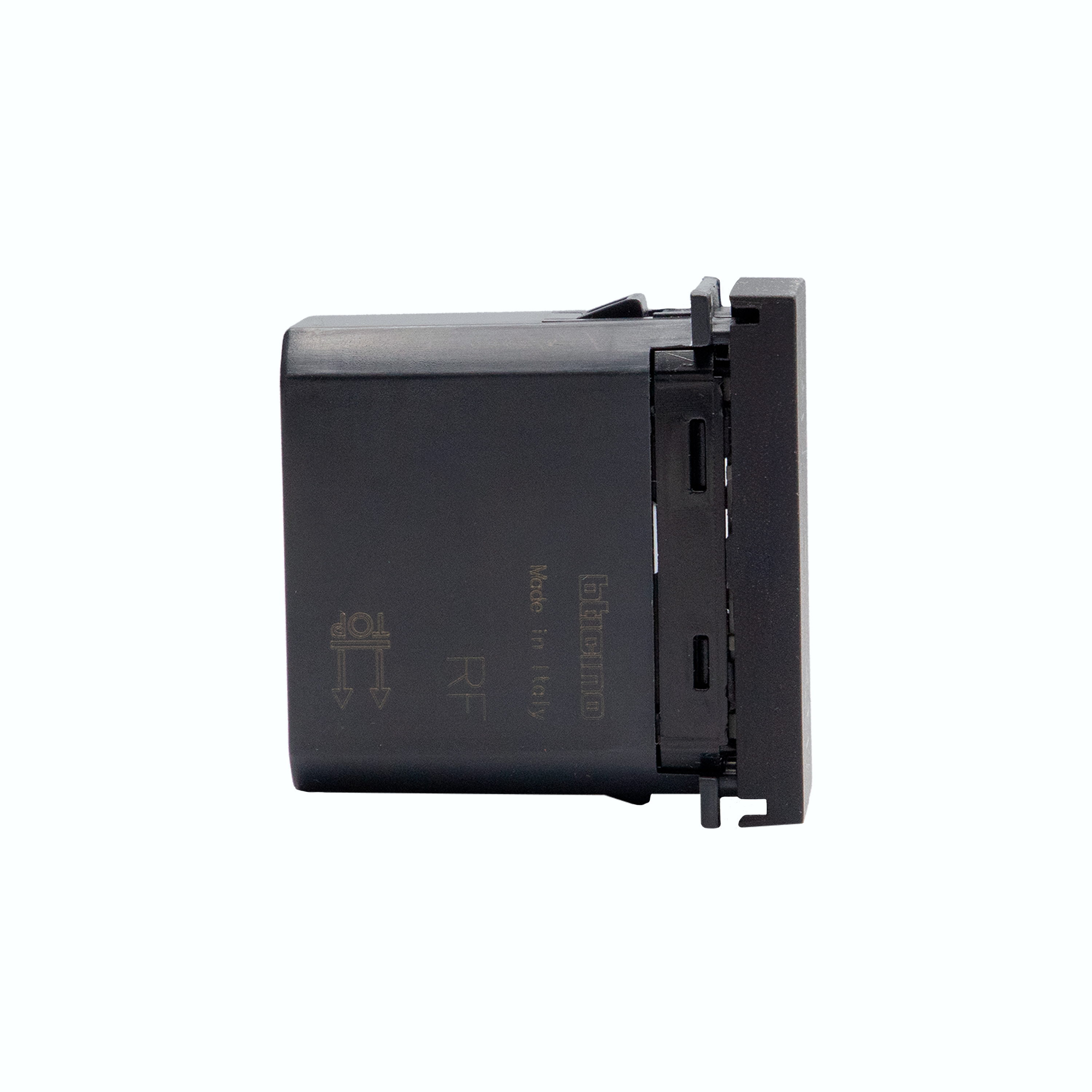

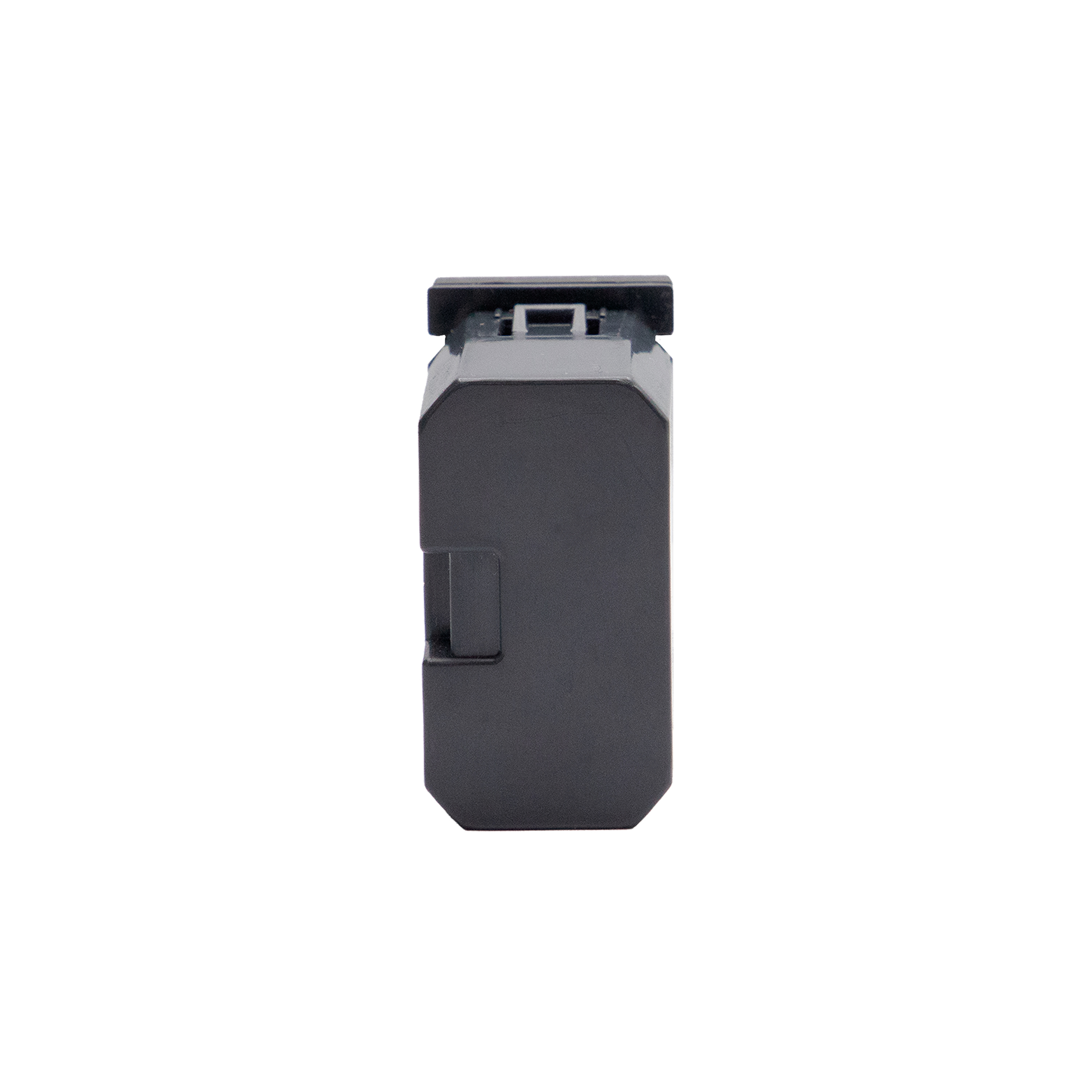

Home / Away wireless switch
BT-JB4570CWI
|
8005543715789
Description
The Home/Away wireless master switch allows you to add an extra Home/Away wireless switch. In the Home + Control app, choose which lights, roller shutters or electrical appliances you wish to control via the Home and Away scenarios,
Product characteristics
- Predefined Home/Away scenarios which can be customized from the Home + Control app. Manage them with a single press on your wireless master switch
- LED indicator with low battery warning
- 1 module
- Color Black
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- To add your Home/Away wireless master switch to your connected installation, you first need to purchase and install a MatixGO with Netatmo gateway, as well as one or more MatixGO with Netatmo connected switches, power outlets or lighting micromodules.
Products benefits
Installation
- The wireless switch has the same dimension of traditional 1module switch. It can be installed onto a flush-mounting box.
Usage
- The Home/Away wireless master switch complements the one included in the MatixGO with Netatmo gateway. You can therefore place each of these switches at different entrances to your home
Advantages
- Perfect aesthetic integration with the installed wiring devices
Technical Characteristics
Radio frequency
2400 MHz
Rolling code system
Yes
Code length (Bit)
128
Range
185 m
Number of commands
2
With manual radio transmitter
Yes
Flush-mounted radio transmitter
Yes
Surface mounted radio transmitter
No
With radio coding device
Yes
Degree of protection (IP)
IP40
Keyboard protection cover
No
Current supply
Battery
Width
22.5 mm
Height
45 mm
Depth
44 mm
Built-in depth
36 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
0-45 °C
Standby consumption
0 mA
Mandatory neutral
No
Stress test conformity (1000V)
No
Colour
Black
RAL-number
9011
Halogen free
Yes
Antimicrobial treatment
No
Mounting method
Flush-mounted
Contains Batteries and/or Accumulator
Yes
IEC code (Pack1)
CR2032
Battery ou Accumulator (Pack1)
Battery (not rechargeable)
Element Composition (Pack1)
Lithium (battery or accumulator)
Number of Pack 1
1
Number of Single Element (Pack1)
1
Single Element weight (Pack1)
3 g
Pack1 Location
Product includes a battery
Regulation Type (Pack1)
P : Portable (Standard format)
Connected object
Yes
Operating method
Zigbee
Application store for download
Google Play Store, App Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Compatible voice assistants
Google Assistant, Amazon Alexa, Apple Siri
Application name
Home + Control
Product use function
Lighting management
Documentation
1 documents
Technical Sheet
IDP001782 | PDF (208 KB) | EN
2 documents
Agreement
LGVZBTTLGS | FILE (618 KB) | EN · FR
Agreement
LGNHHUPYPB | FILE (564 KB) | EN
1 documents
Catalog Commercial Page
CAT_MTXGO | PDF (24.9 MB) | EN
