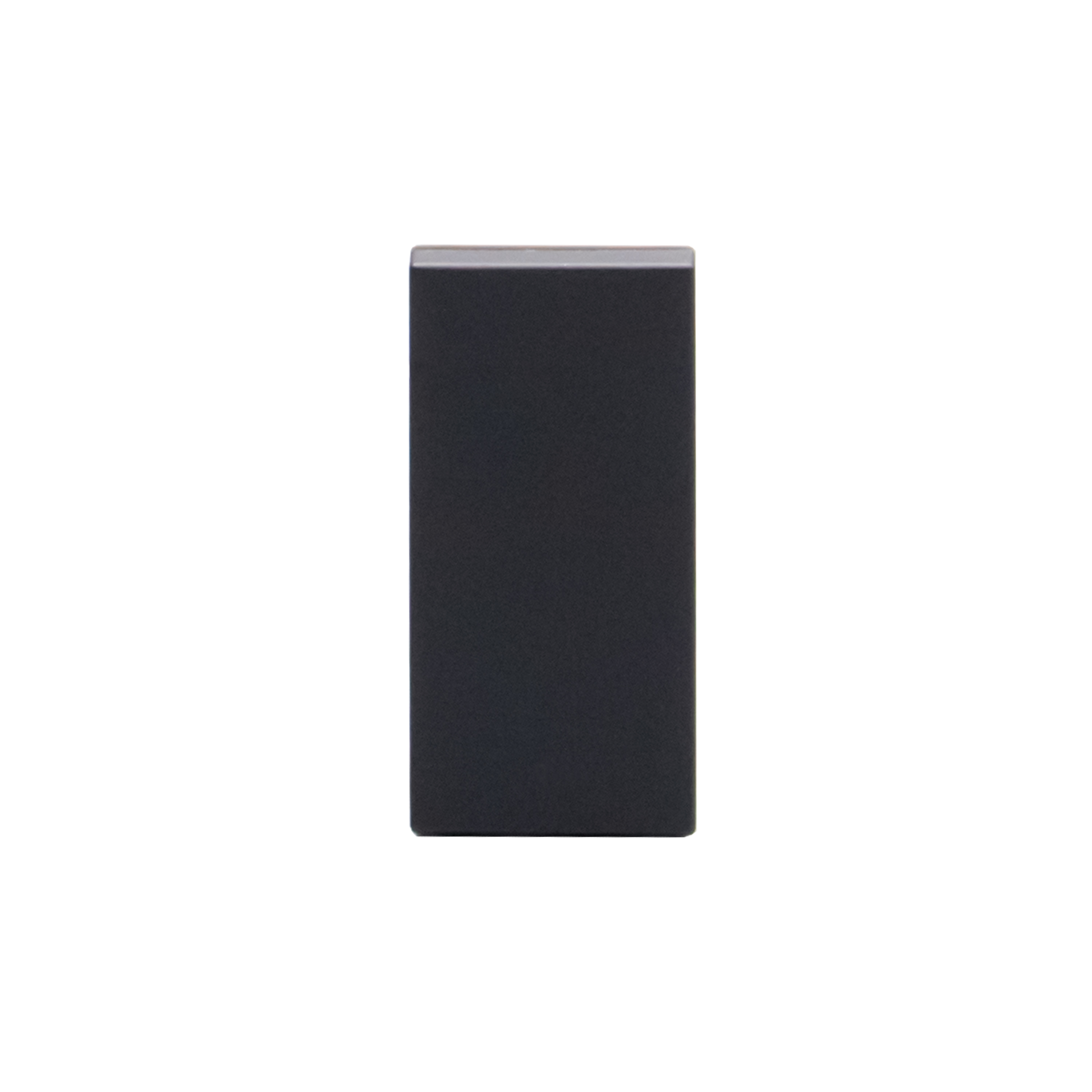

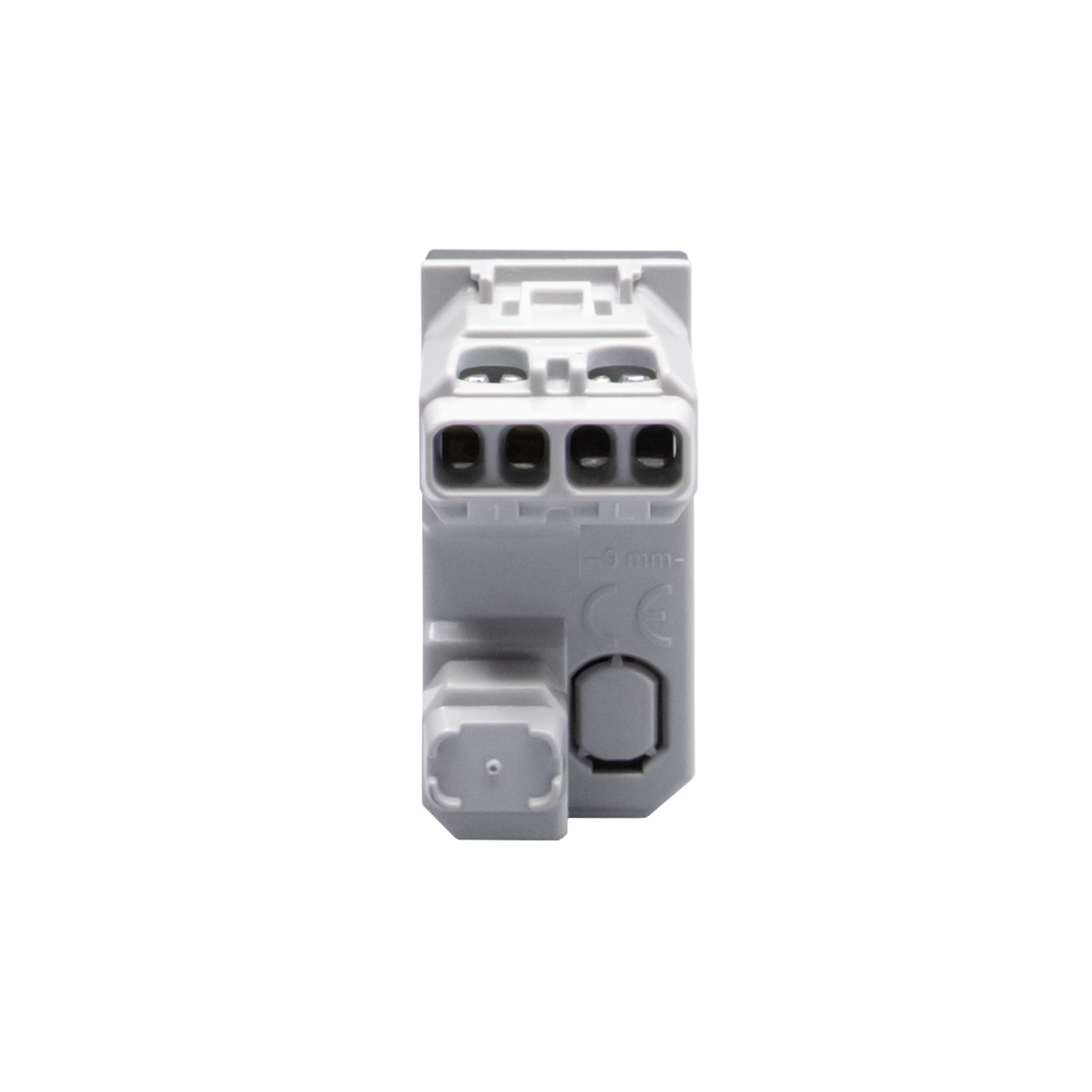

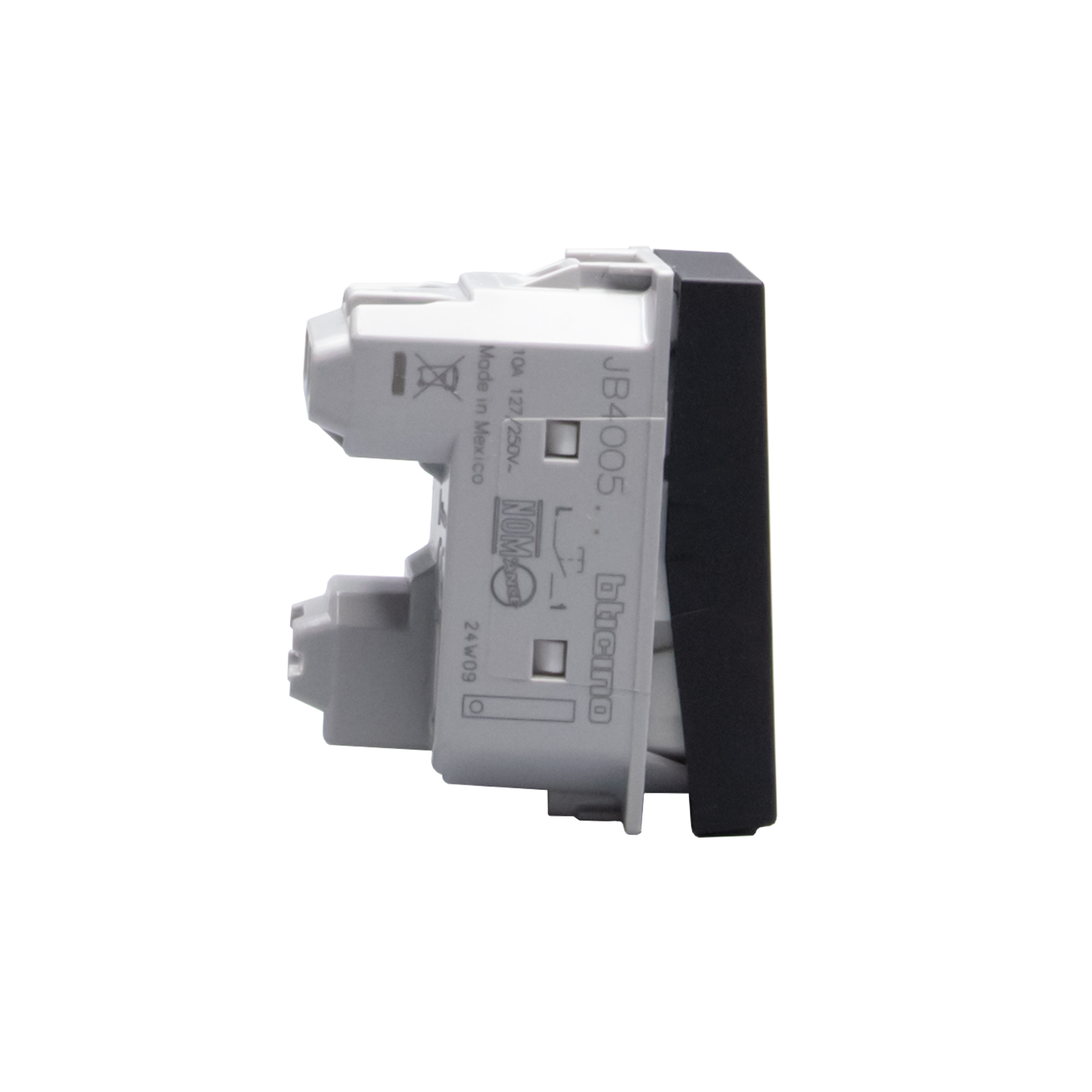

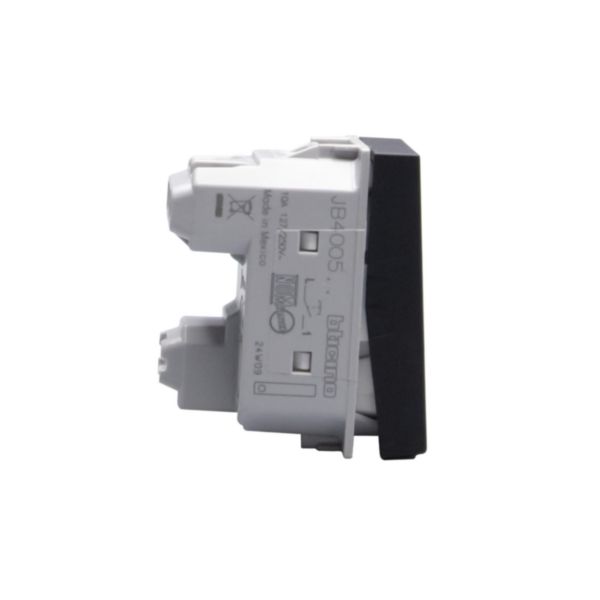

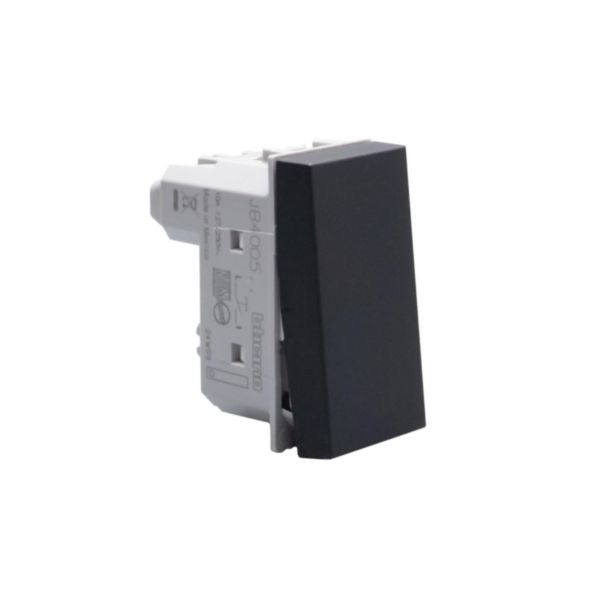

Rocker pushbutton. 1P NO 10 A - 250 Va.c. - lightable
BT-JB4005
Description
Pushbutton 1P (NO) 10 A - 250 Va.c. - 1 module, black
Product characteristics
- Pushbutton 1P (NO) lightable with led lamp
- 10A - 250 Va.c.
- 1 module
- Color Black
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Easy to install and remove
Usage
- It can be used as a simple switch able to manage all light loads (LED included)
Advantages
- High technical performance
- modern shape, slightly curved cover
Technical Characteristics
Assembly arrangement
Basic element
Model
Single push button
Method of operation
Push button
Operating principle
Electromechanical
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Number of revolving contacts
0
Contactless type
No
Number of rockers
1
Number of modules (module system)
1
Number of poles
1
Nominal voltage
250 V
Rated current
10 A
With lighting
Yes
With light source
No
With complemantary luminous signal
No
Monitoring contact
No
Connection type
Screwed terminal
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
Black
RAL-number (similar)
9011
Transparent
Yes
Label space/information surface
No
Imprint
None
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
22.5 mm
Device height
45 mm
Device depth
41 mm
Min. depth of built-in installation box
40 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Built-in depth
30 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
