MatixGO BTicino

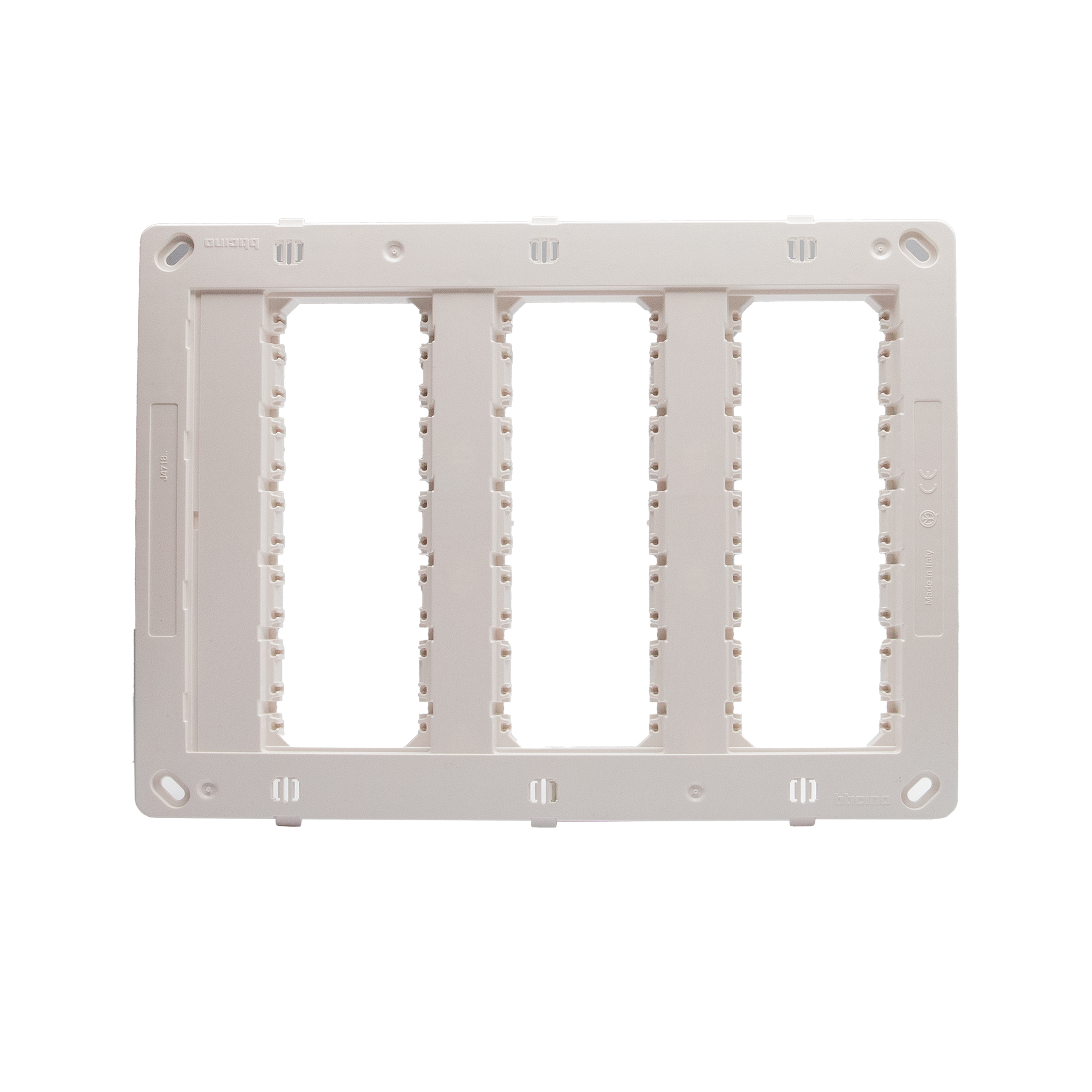

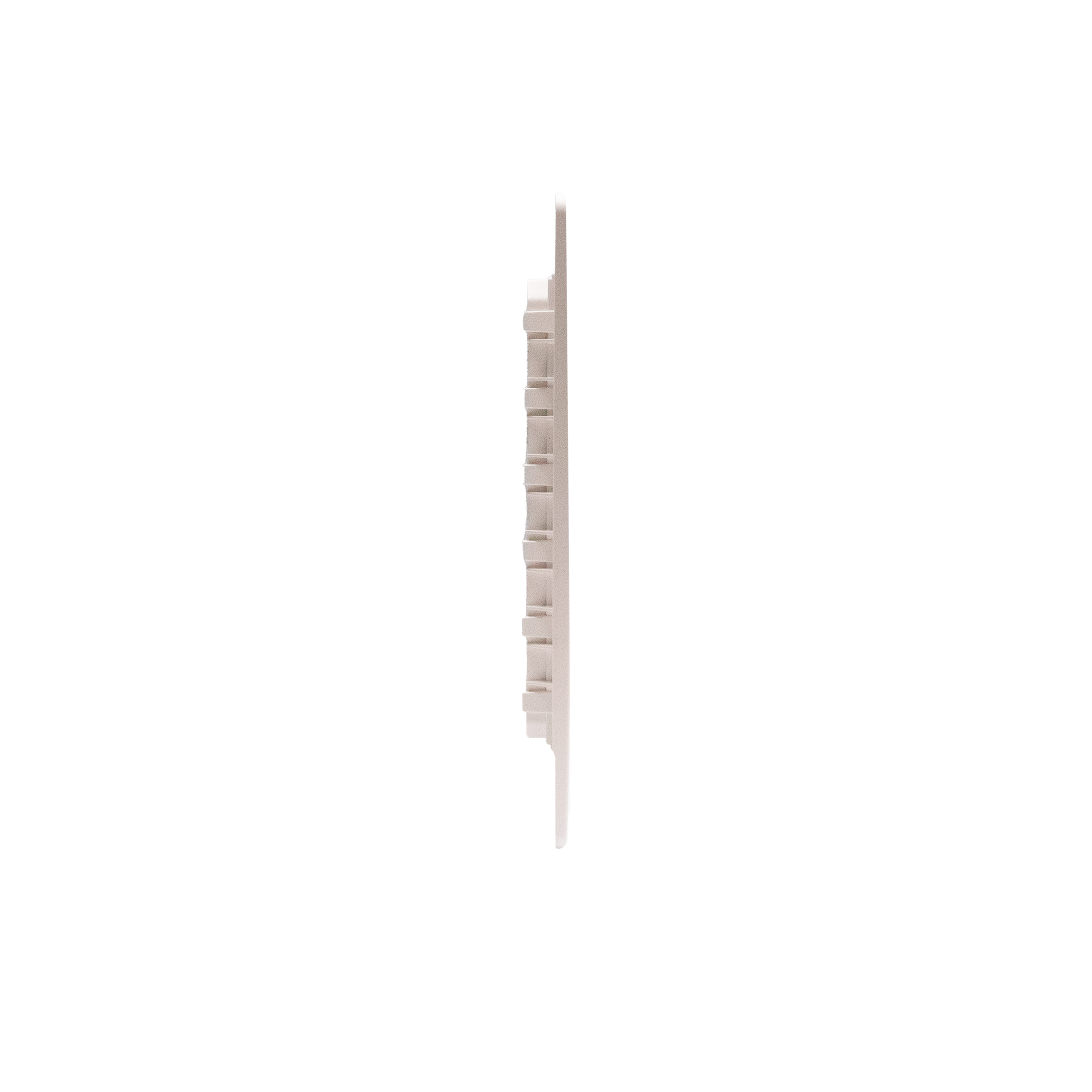

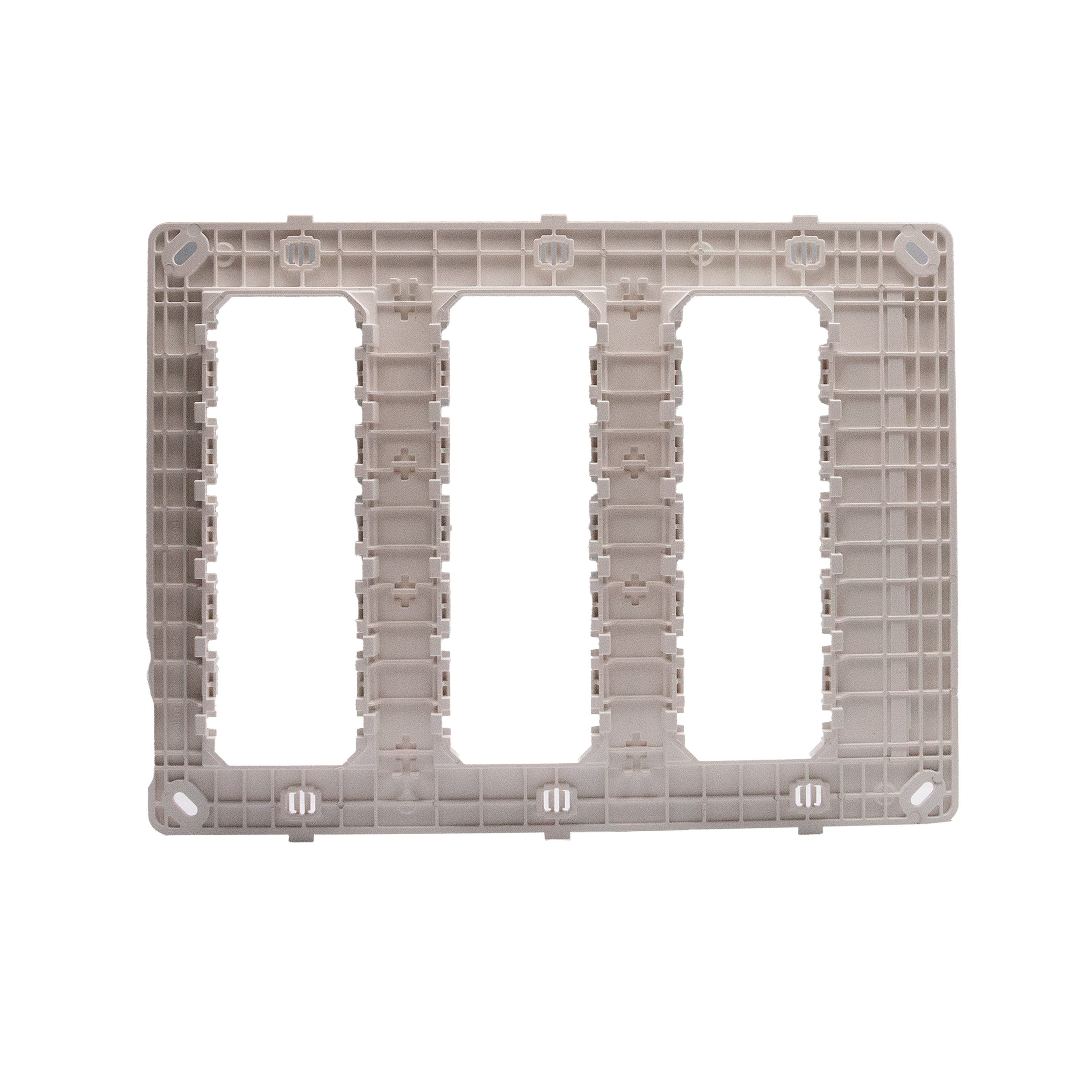

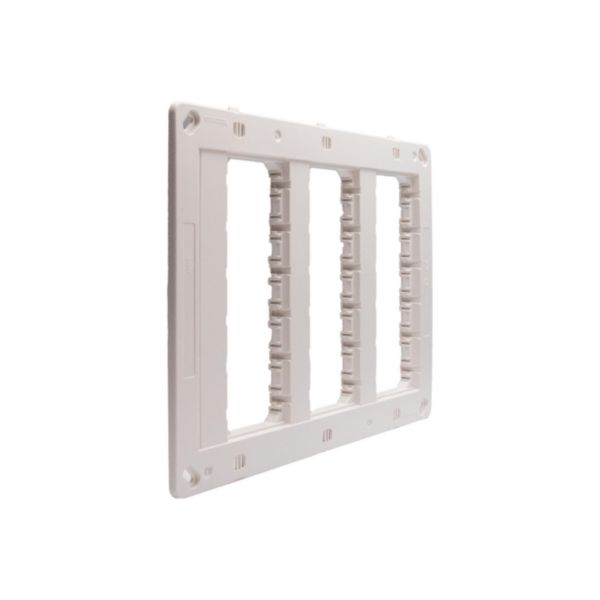

Supporting frame 6+6+6 modules - fixing with screws

BT-J4718 | 8005543720516
Supporting frame 6+6+6 modules - fixing with screws
Description

The support frame is the accessory on which are installed the devices and the cover plates. This support is for cover plates 6+6+6 modules.

Product characteristics
  • Supporting frame
  • Cover plate always flush on the wall in any kind of installation.
  • 6+6+6-modules
  • Color White
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor use only.
Products benefits
Installation
  • The strengthens of the material and the innovative regulation system guarantee an easy and perfect installation.
Usage
  • This innovative support frame guarantee always the switch flush on the wall with a perfect aesthetic result. This support is for cover plates 6+6+6 modules.
Advantages
  • This innovative support frame guarantee always the switch flush on the wall.
Technical Characteristics
Width 180 mm
Model Other
Type of fastening Mounting with screw
Height 240 mm
Depth 15 mm
With nail No
Mounting method of the module inserts Front side
Mounting direction Horizontal and vertical
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 3
With built-in installation box No
With screws Yes
Suitable for mounting in round junction box 60 mm No
Flush-mounted installation No
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for mounting on DIN-rail 35 mm No
Material Plastic
Material quality Thermoplastic
Surface protection Untreated
