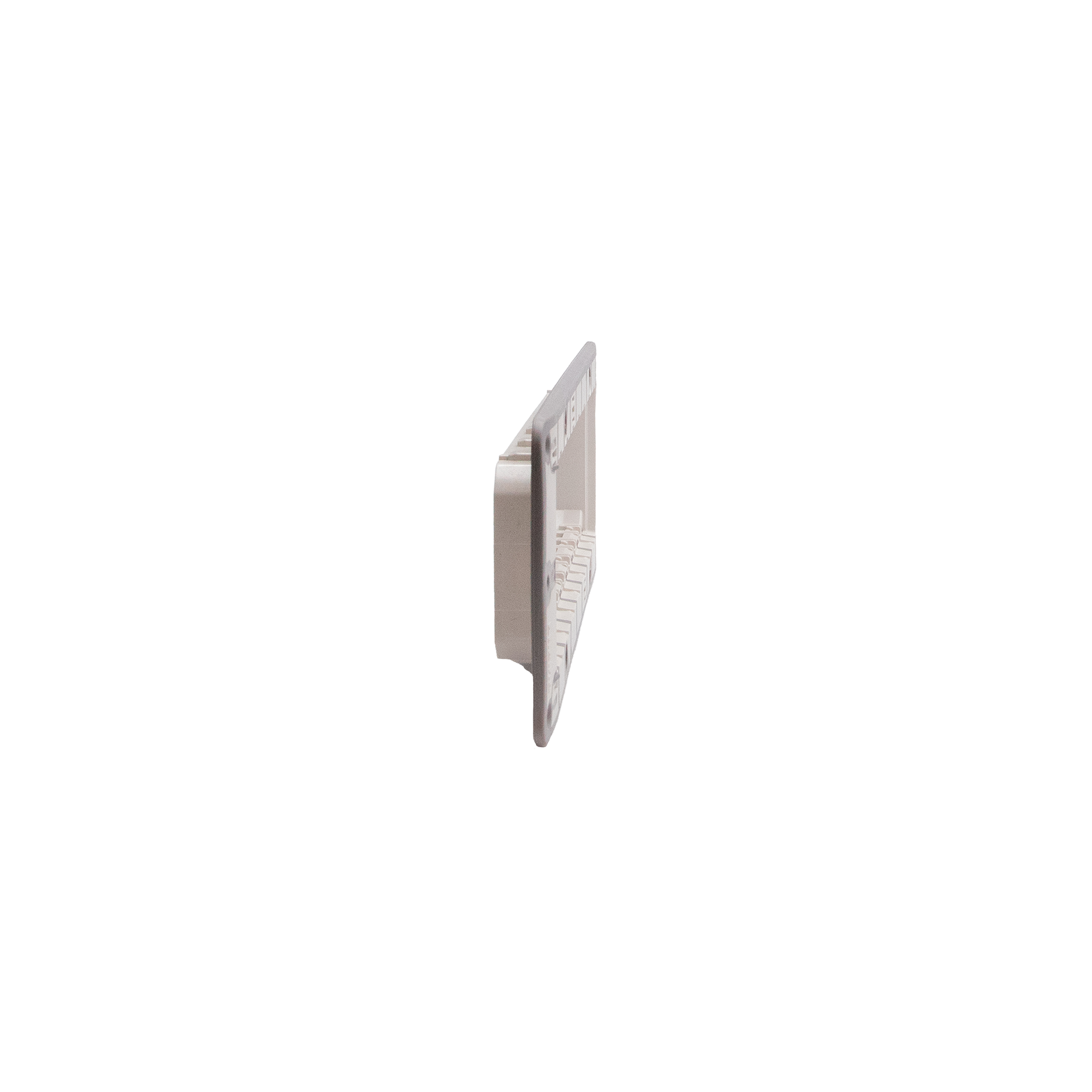

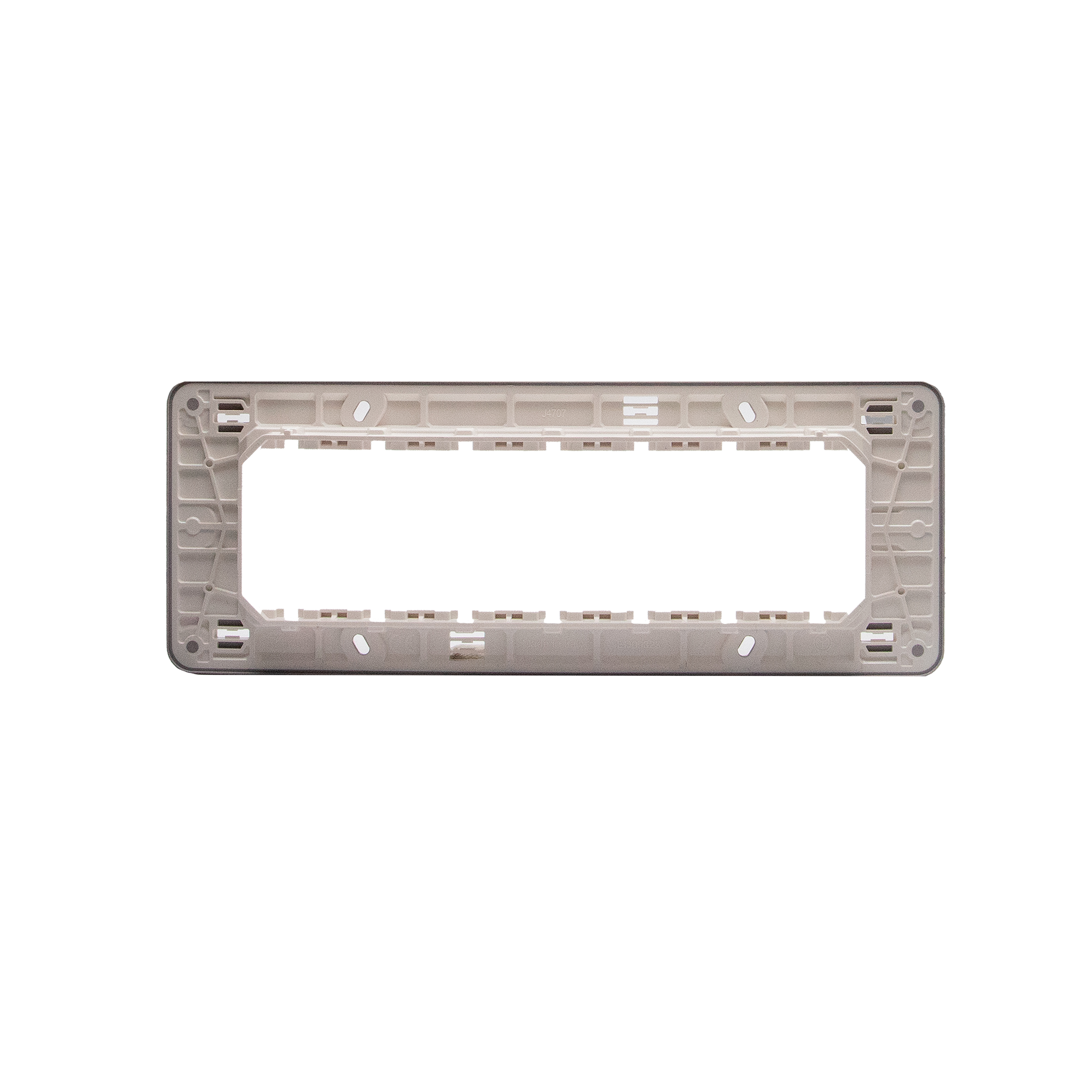

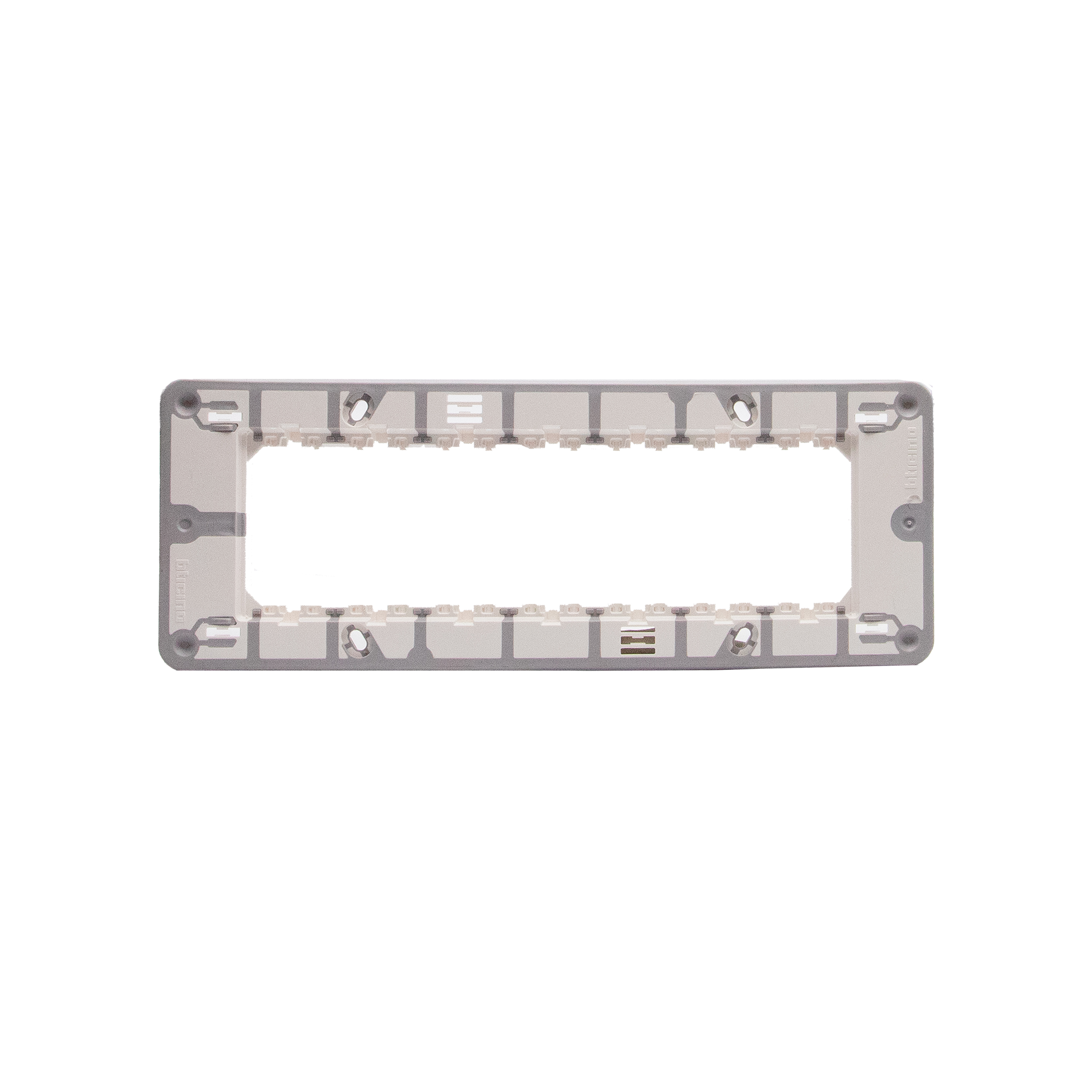

Supporting frame 7 modules - fixing with screws
BT-J4707
|
8005543720493
Description
The MatixGO support frame 7 modules presents a new ergonomy easy to handle and it adhere perfectly to the wall thanks to rubber bulkheads. It is a simple, intelligent and sustainable support frame based on a new approach of evolution.
Product characteristics
- Supporting frame
- Two-side un-clipping system: both from the front and the back.
- 7 modules
- Colors White and Grey
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Dampers for mechanism allow the perfect alignment in any condition. The screws are easy to put in/out without tools. This support can adapt to every kind of 7-modules flush-mounting and surface box on the market.
Usage
- Two-side un-clipping system: both from the front and the back. This support is for cover plates 7 modules.
Advantages
- The new ergonomy bi-material.
- Perfect alignment thanks to dampers for mechanism and dampers for cover plate.
- Easy and fast installation thanks to the new screws fix on the support.
Technical Characteristics
Model
Other
Width
205 mm
Height
77.5 mm
Type of fastening
Mounting with screw
Depth
15 mm
With nail
No
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
7
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
Yes
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
No
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
