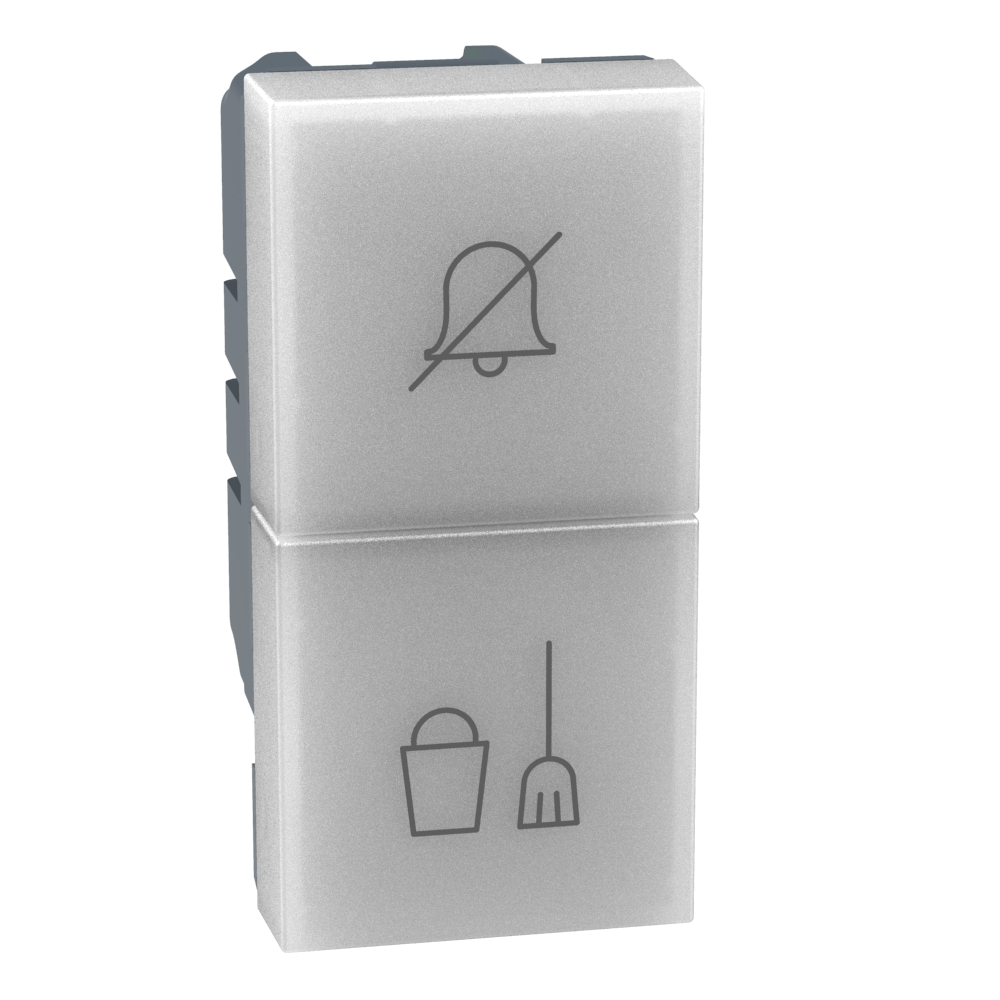

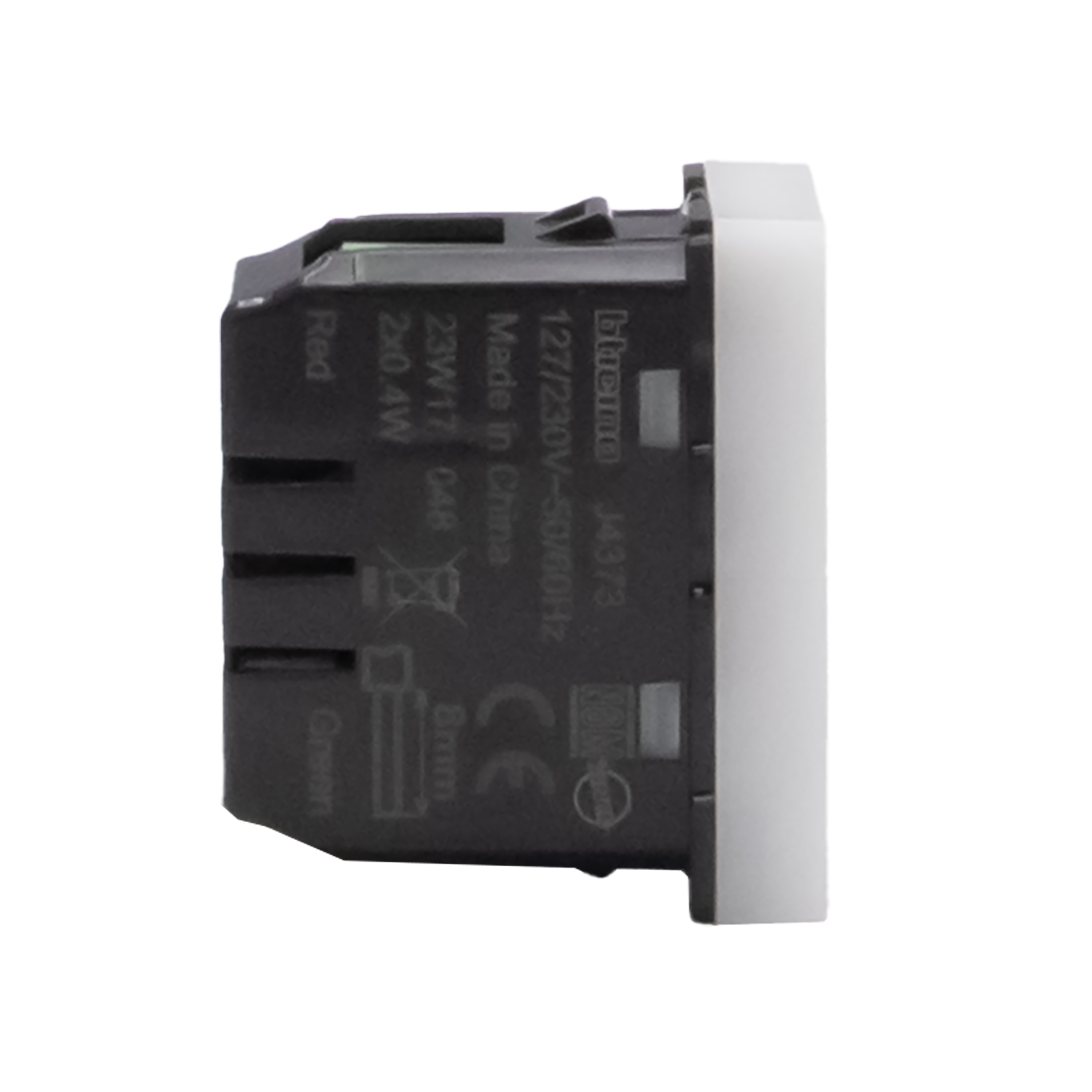

Hotel do not disturb / make up the room controls.
BT-J4373
|
8005543720981
Description
This MatixGO hotel lampholder it can be used as double optical signaling: “do not disturb” and “make up the room” , for outdoor application in the Hotel. 1 module
Product characteristics

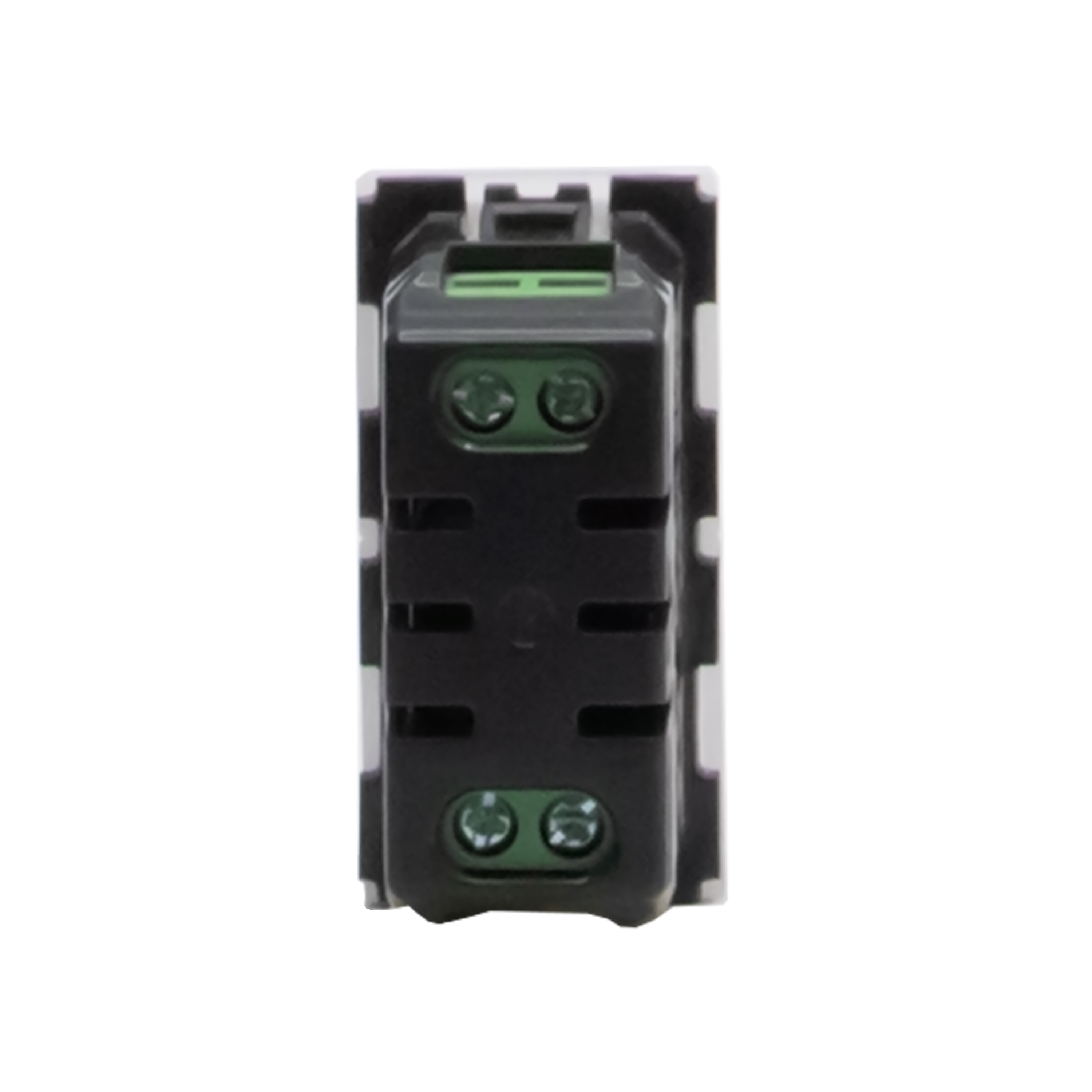

- Screw terminals
- Allows light signaling outside the room door (DND MUR)
- 1 module
- No color
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Use with changeover switch for hotel room
Usage
- If activated the switch inside the room, the indicator will be illuminated in the "do not disturb" or "rearrange the room" signal
Advantages
- It is coordinated with the MatixGO aesthetic
Technical Characteristics
Assembly arrangement
Complete device
Number of modules (module system)
1
Lamp holder
None
With light source
Yes
Lamp type
LED not exchangeable
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Application as button
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Transparent
No
Colour light source
Red/green
Suitable for degree of protection (IP)
IP20
Nominal voltage
230 V
Max. lamp power
0.5 W
Device width
22.5 mm
Device height
45 mm
Device depth
38 mm
Min. depth of built-in installation box
40 mm
Built-in depth
30 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Stress test conformity (1000V)
No
Antimicrobial treatment
No
Connection type
Screwed terminal
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Label space/information surface
No
