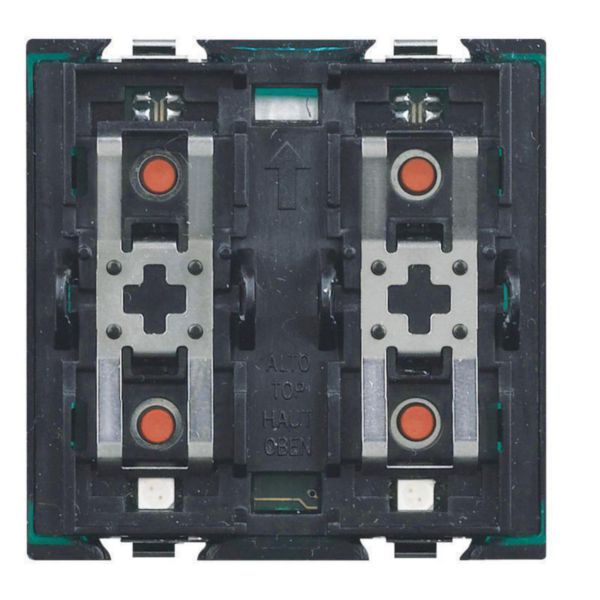

Actuator/control LivingLight with 2 independent relays and neutral for "zero crossing" function.
BT-H4672M2
|
8005543560860
Description
Actuator/control Axolute with 2 independent relays and neutral for "zero crossing" function - for single, double or mixed loads. The device can be configured also to manage a remote actuator.
Product characteristics
- 2 modules
- Rated voltage 27 V d.c.
- Rated current 0,016 A
- Rated power VA 460
- Rated power W 1380
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Mounting method
Flush-mounted
Width in number of modular spacings
2
Local operation/hand operation
Yes
With LED indication
Yes
Max. switching power
1380 W
Max. number of switching contacts
2
Rated current
6 A
Rated operating voltage (Min-Max)
110-230 V
Different phases connectable
Yes
With bus connection
Yes
Bus module detachable
Yes
Modular expandability
Yes
Degree of protection (IP)
IP20
Width
43.8 mm
Height
43.8 mm
Depth
23 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Terminal marking indication
Yes
Halogen free
No
Terminals capacity (Min-Max)
0.34-2.5 mm²
Label space/information surface
No
Fitted with USB plug
No
Connected object
No
With voice command
No
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
No
Product use function
Lighting management
