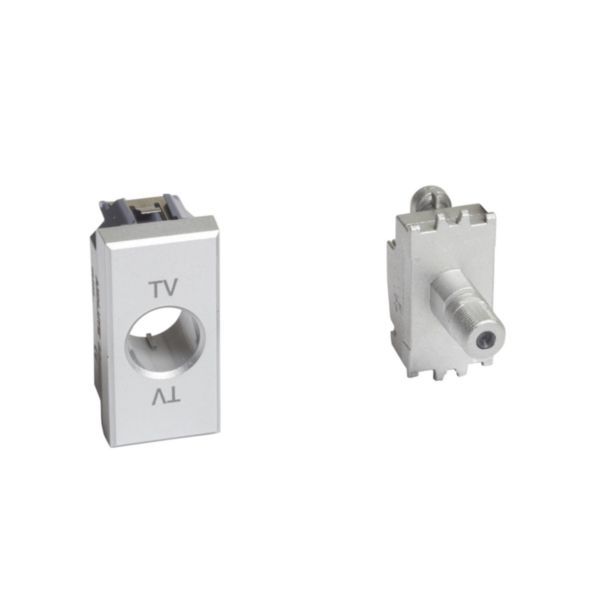

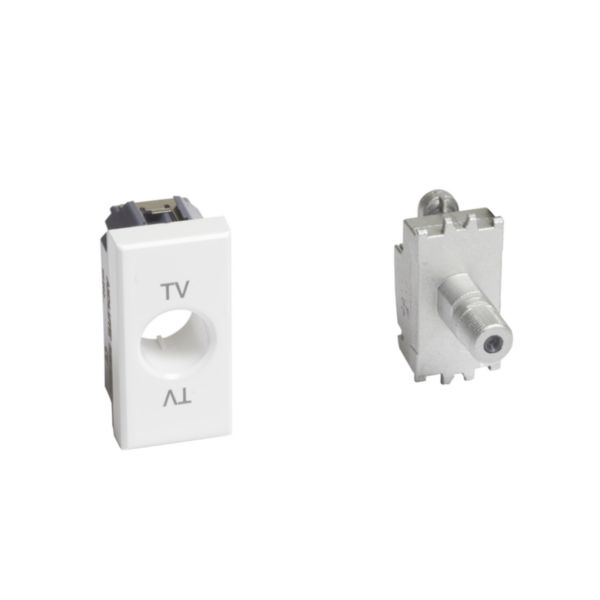

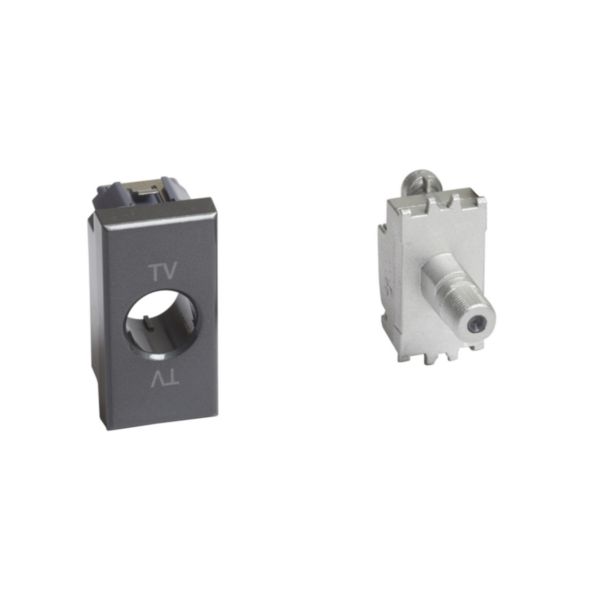

Type-F coaxial socket - impedance 75 ohm
BT-H4202F
|
8005543574966
Technical Characteristics
Model
End socket
Type of socket outlet
SAT
DAB+
No
Mounting method
Module frame
Number of modules (module system)
1
Assembly arrangement
Basic element with central cover plate
Tap loss at 860 MHz
10 dB
Tap loss at 2150 MHz
10 dB
Number of outlets
1
Suitable for cable modem
No
Suitable for remote power supply
No
Type of fastening
Snap mounting (engagement)
Surface protection
Lacquered
Surface finishing
Matt
Material
Plastic
Material quality
Duroplast
Halogen free
Yes
Antimicrobial treatment
No
Degree of protection (IP)
IP20
Device width
22.3 mm
Device height
45 mm
Device depth
25 mm
Min. depth of built-in installation box
25 mm
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Documentation
1 documents
Instruction Use
LE08597AA | PDF (431 KB)
1 documents
PEP-EPD
LGRP-00311-V01.01-EN | PDF (1.1 MB) | EN
1 documents
Catalog Commercial Page
3211578 | PDF (16.1 MB) | EN
