  5. BT-G701Q
  • Earth leakage relay with separate toroids for panels of distribution boards 72x72mm
Btdin BTicino

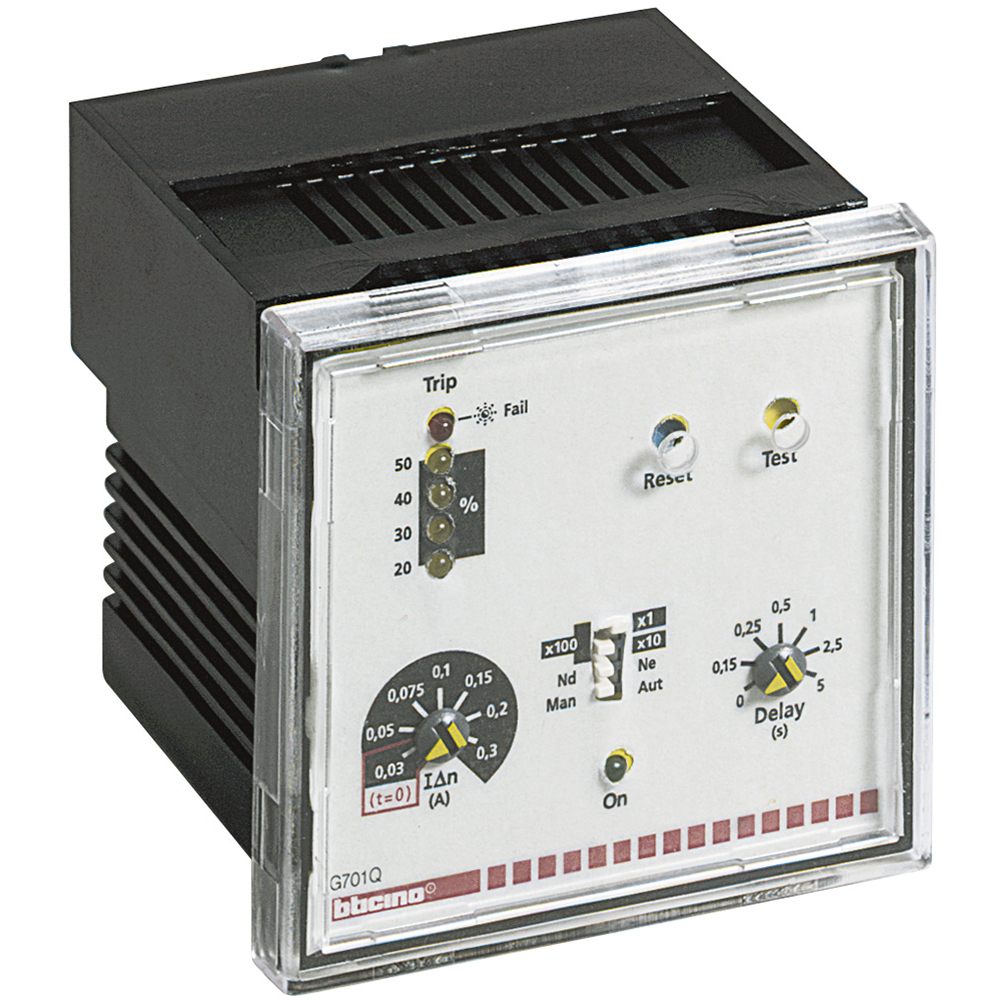

Earth leakage relay with separate toroids for panels of distribution boards 72x72mm

BT-G701Q | 8012199724003
Earth leakage relay with separate toroids for panels of distribution boards 72x72mm - Idn=0,03-30A - t=0-5s - 1NO/NC ouput contact
Technical Characteristics
Type of electric connection Screw connection
With detachable clamps No
Function For three-phase supply system
Supply voltage AC 50 Hz (Min-Max) 195.5-253 V
Supply voltage AC 60 Hz (Min-Max) 195.5-253 V
Rated operating frequency (Min-Max) 47-63 Hz
Response value amperage 1 (Min-Max) 30-30000 mA
Min. adjustable delay-on energization time 5 s
Indication of difference current Yes
Error registration possible Yes
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 0
Number of contacts as change-over contact 1
Voltage type (operating voltage) AC
Width 35 mm
Height 89 mm
Depth 65.6 mm
Documentation
1 documents
Instruction Use
F1095E | PDF (1.3 MB)
