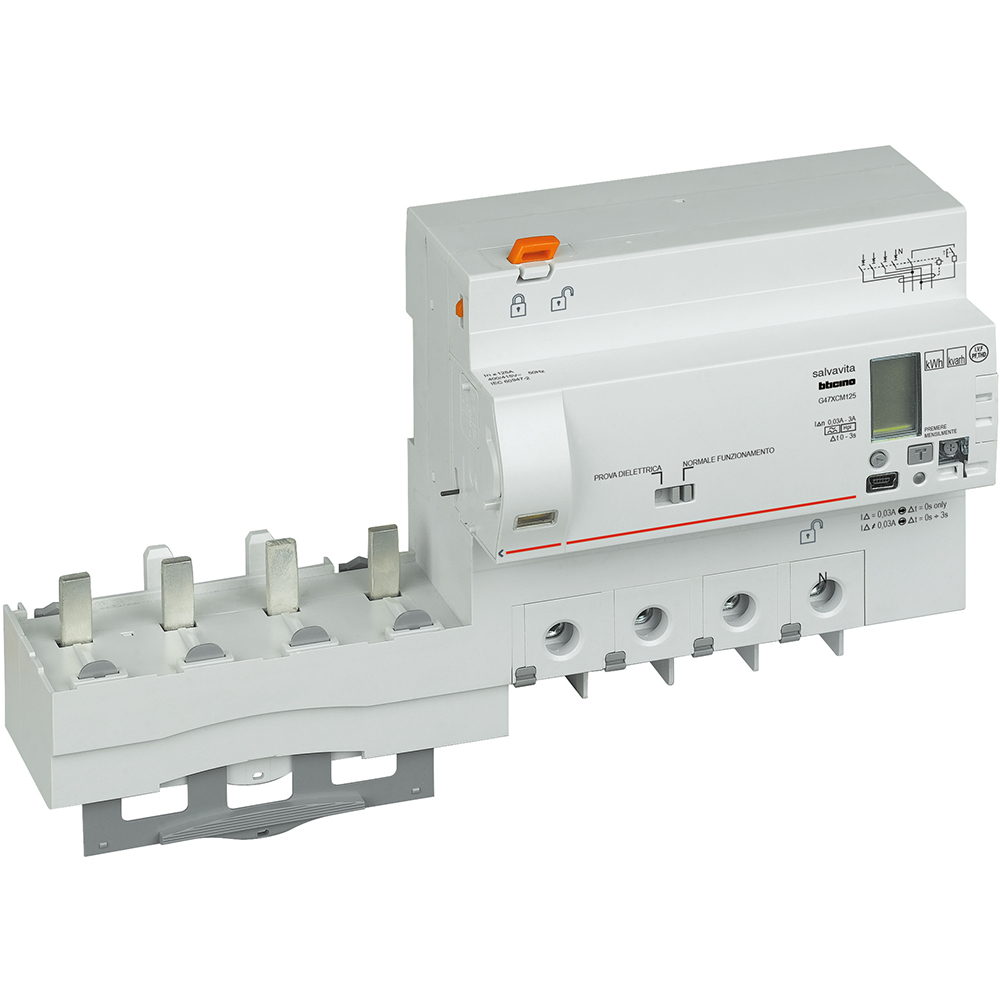

Earth leakage module with measure function integrated 4P - type A-HPI - In= 125A
BT-G47XCM125
|
8005543511022
Technical Characteristics
Nominal voltage (Min-Max)
250-440 V
Nominal current
125 A
Rated fault current adjustable
Yes
Rated fault current (Min-Max)
0.03-3 A
Max. delay time
3000 ms
Delay adjustable
Yes
Number of poles
4
Leakage current type
Other
Frequency
50 Hz
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
6 kV
Connectable conductor cross section solid-core (Min-Max)
1.5-70 mm²
Connectable conductor cross section multi-wired (Min-Max)
1.5-50 mm²
Anti-nuisance tripping version
Yes
With interlocking device
Yes
Degree of protection (IP)
IP20
Pollution degree
3
Ambient temperature during operating (Min-Max)
-25-70 °C
Width
240.3 mm
Height
129 mm
Depth
78 mm
degree of impact strength (IK)
IK02
Storage temperature (Min-Max)
-40-70 °C
Voltage type
AC
Terminal marking indication
Yes
Colour
Grey
RAL-number
7035
Halogen free
Yes
Connection type
Screwed terminal
Connection type
Cable
Mounting method
DIN rail
Contains Batteries and/or Accumulator
Yes
IEC code (Pack1)
CR1616
Battery ou Accumulator (Pack1)
Battery (not rechargeable)
Element Composition (Pack1)
Lithium (battery or accumulator)
Number of Pack 1
2
Number of Single Element (Pack1)
1
Single Element weight (Pack1)
1.1 g
Pack1 Location
Product includes a battery
Regulation Type (Pack1)
P : Portable (Standard format)
Connected object
Yes
Application store for download
Not applicable
Documentation
3 documents
Technical Sheet
IDP000020EN_02 | PDF (855 KB) | EN
Technical Sheet
IDP000286EN_01 | PDF (216 KB) | EN
Instruction Use
LE06473AA | PDF (4.7 MB)
