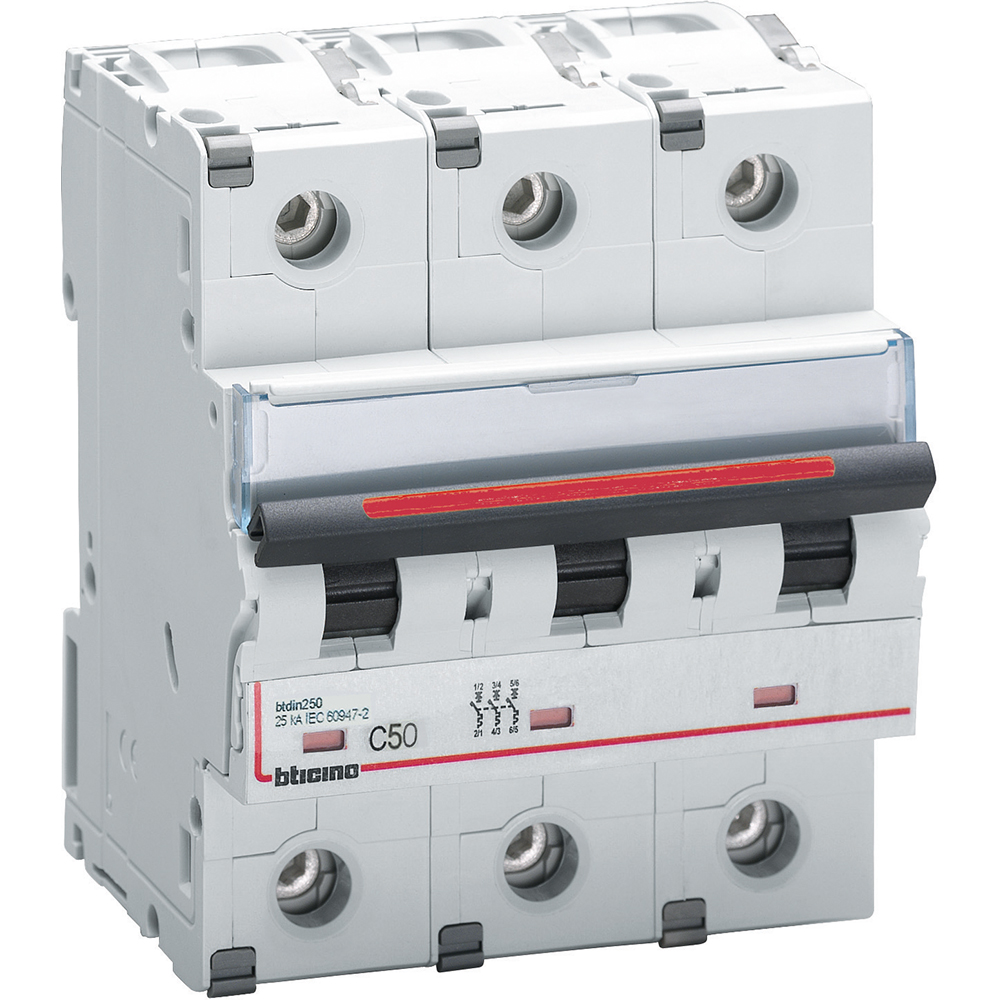

BTDIN250 - 3P Mcb curve C - In= 50A - Icu= 25kA
BT-FV83C50
|
8005543468326
Technical Characteristics
Built-in depth
47 mm
Release characteristic
C
Number of poles (total)
3
Number of protected poles
2
Rated current
50 A
Rated voltage
400 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
4 kV
Voltage type
AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
3 kA
Frequency (Min-Max)
50-50 Hz
Concurrently switching neutral conductor
No
Pollution degree
3
Additional equipment possible
Yes
Width in number of modular spacings
4.5
Degree of protection (IP)
IP20
Ambient temperature during operating (Min-Max)
-25-60 °C
Connectable conductor cross section multi-wired (Min-Max)
1.5-35 mm²
Connectable conductor cross section solid-core (Min-Max)
1.5-50 mm²
Explosion-proof
No
Documentation
1 documents
Instruction Use
G2297G | PDF (1.7 MB)
