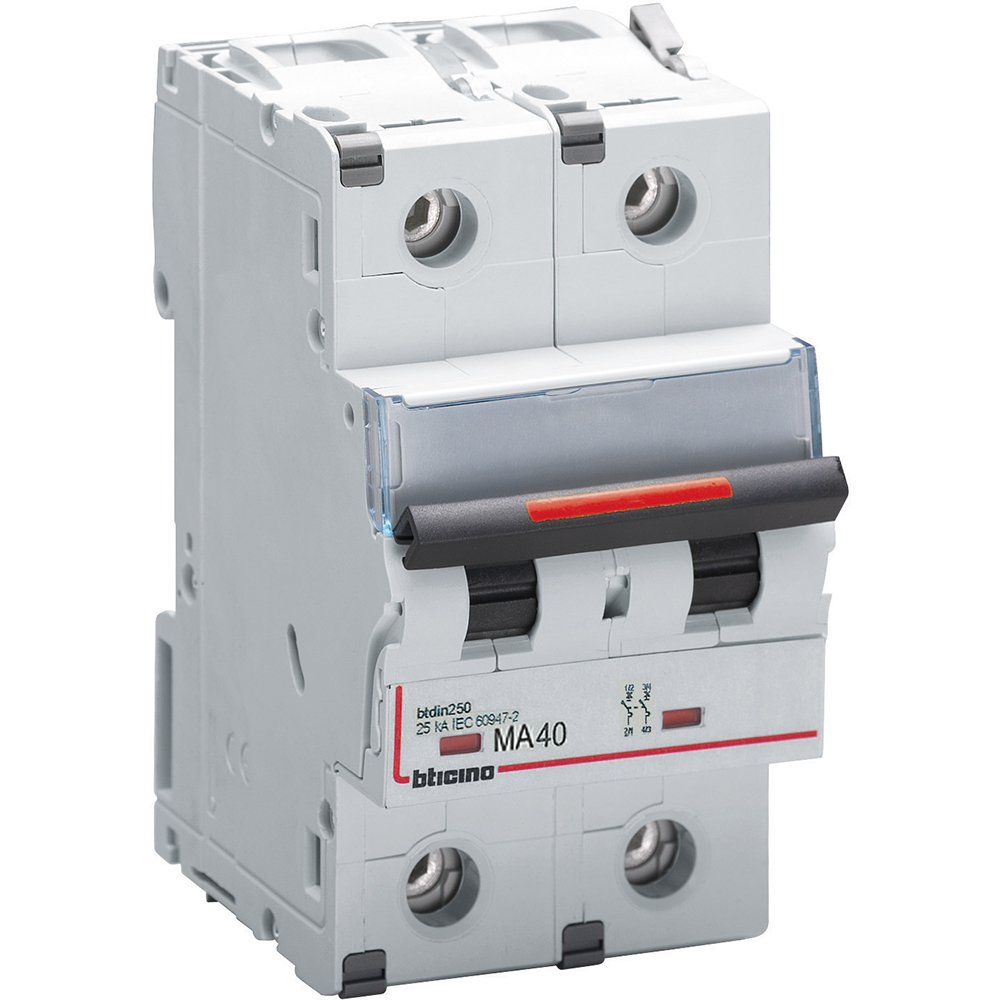

  • BTDIN250 - magnetic only 2P - curve 12-14In - In= 40A - Im= 500A - Icu= 25kA
Btdin BTicino

BTDIN250 - magnetic only 2P - curve 12-14In - In= 40A - Im= 500A - Icu= 25kA

BT-FV82SM500 | 8005543474686
BTDIN250 - magnetic only 2P - curve 12-14In - In= 40A - Im= 500A - Icu= 25kA - Vn= 400Vac - 3 modules
Technical Characteristics
Number of poles (total) 2
Rated current 40 A
Voltage type AC
Connectable conductor cross section multi-wired (Min-Max) 1.5-35 mm²
Connectable conductor cross section solid-core (Min-Max) 1.5-50 mm²
