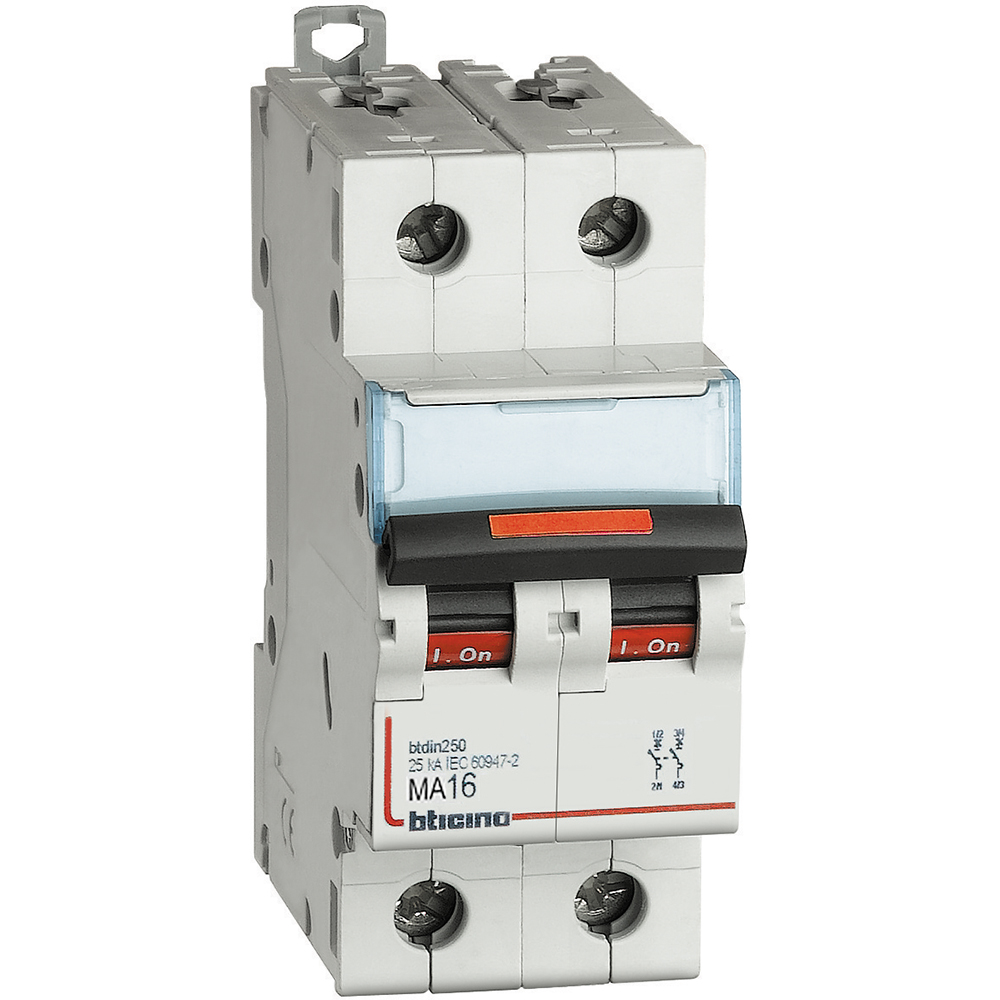

BTDIN250 - magnetic only 2P - curve 12-14In - In= 16A - Im= 200A - Icu= 25kA
BT-FV82SM200
|
8005543481660
Technical Characteristics
Built-in depth
44 mm
Release characteristic
MA
Number of poles (total)
2
Number of protected poles
2
Rated current
16 A
Rated voltage
400 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
4 kV
Voltage type
AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
3 kA
Frequency (Min-Max)
50-50 Hz
Concurrently switching neutral conductor
No
Pollution degree
3
Additional equipment possible
Yes
Width in number of modular spacings
2
Degree of protection (IP)
IP20
Ambient temperature during operating (Min-Max)
-25-60 °C
Connectable conductor cross section multi-wired (Min-Max)
1.5-25 mm²
Connectable conductor cross section solid-core (Min-Max)
1.5-35 mm²
Explosion-proof
No
Documentation
1 documents
Technical Sheet
IDP001555EN_02 | PDF (1.4 MB) | EN
