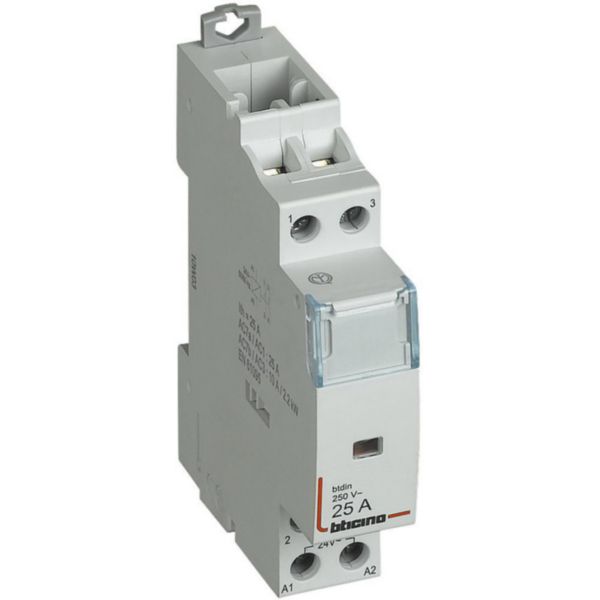

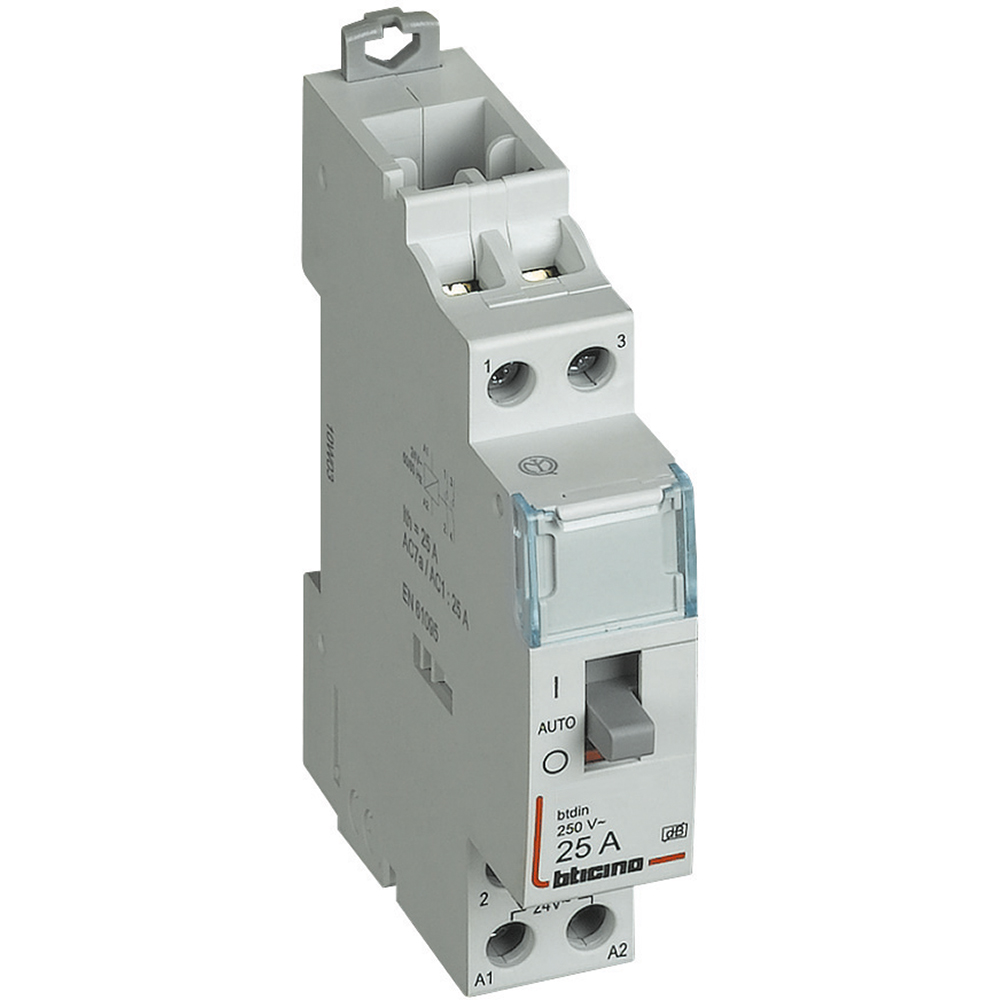

Contactor In=25A - Vn=230Vac - 1NO - 1 module

Name: Contactor In=25A - Vn=230Vac - 1NO - 1 module
Brand: BTicino
SKU: BT-FT1A1N230S
Availability: InStock

BT-FT1A1N230S | 8012199957944

Contactor In=25A (AC-1 - AC-7a) - Vn=230 Vac - 1 NO - 1 module

Compare

Technical Characteristics

Rated operating voltage (Min-Max) 250-250 V

Rated operation current 25 A

Rated excitation voltage (Min-Max) 195-253 V

Voltage type (operating voltage) AC

Voltage type (excitation voltage) AC

Number of contacts as normally open contact 1

Number of contacts as normally closed contact 0

Max. incandescent lamp load 3000 W

Max. load fluorescent lamp 2100 VA

Max. load fluorescent lamp (Duo circuit) 2200 VA

Max. load fluorescent lamp (parallel compensated) 1000 VA

Slider for hand switch Yes

Width in number of modular spacings 1

Built-in depth 44 mm

Additional equipment possible Yes

Degree of protection (IP) IP2X

Operating / setting temperature (Min-Max) -5-40 °C

Frequency (Min-Max) 50-60 Hz

Terminal marking indication Yes

Colour Grey

RAL-number 7035

Connection type Cable

Label space/information surface Yes

Mounting method DIN rail

Documentation

Instruction Use

G2290B | PDF (1.4 MB)
