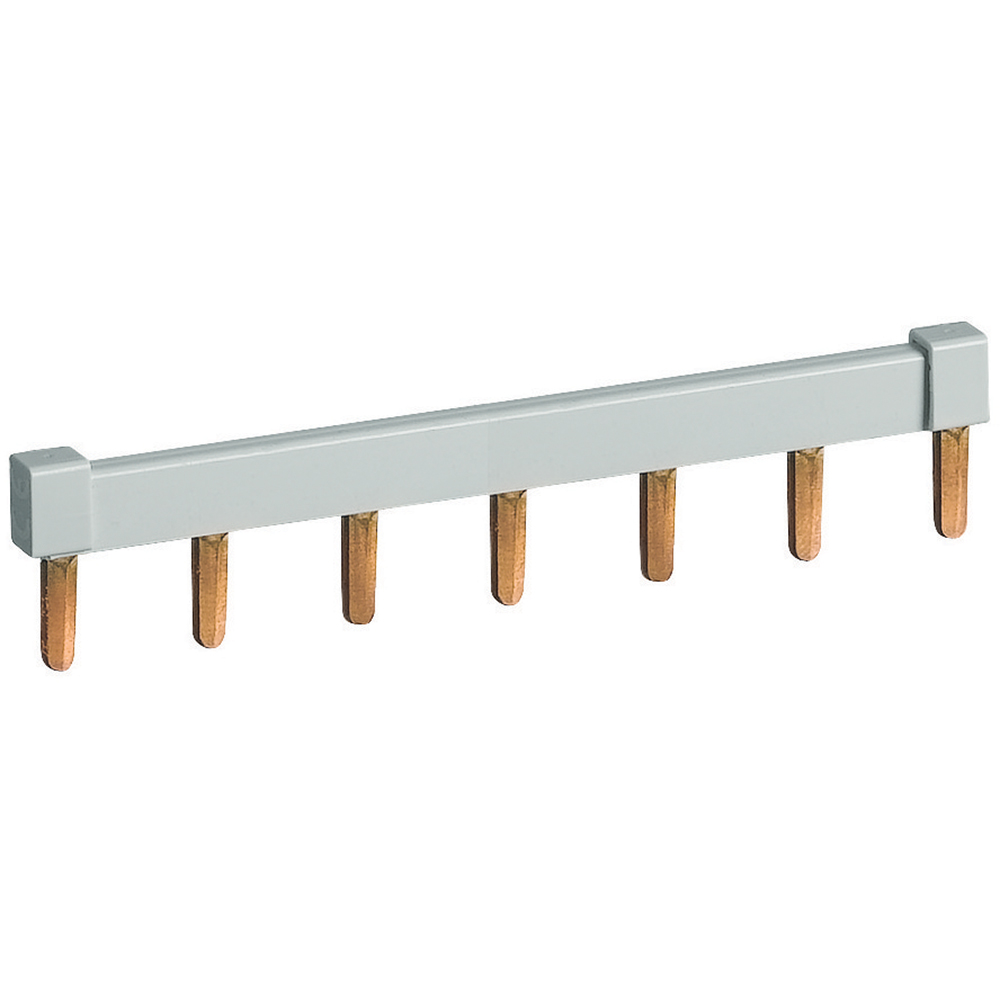

Cabling comb for 2P earth leakage circuit breakers ID4H type - 7 pin - upside cabling
BT-FP7/1P
|
8012199781662
Technical Characteristics
Number of phases
1
Number of poles
7
Suitable for number of devices
7
Module width
17.7 mm
Cross section
10 mm²
Length
110 mm
Can be cut to size
Yes
Width in number of modular spacings
6
Rated permanent current Iu
63 A
Type of electric connection
Pin
Insulated
Yes
Rated surge voltage
2 kV
Conditioned rated short-circuit current Iq
0.63 kA
Max. rated operation voltage Ue
230 V
Rated short-time withstand current lcw
1.2 kA
Suitable for devices with N-conductor
Yes
Suitable for devices with auxiliary switch
Yes
Colour
Grey
Operating / setting temperature (Min-Max)
-20-50 °C
Storage temperature (Min-Max)
-40-70 °C
Busbar type supplied
Horizontal
