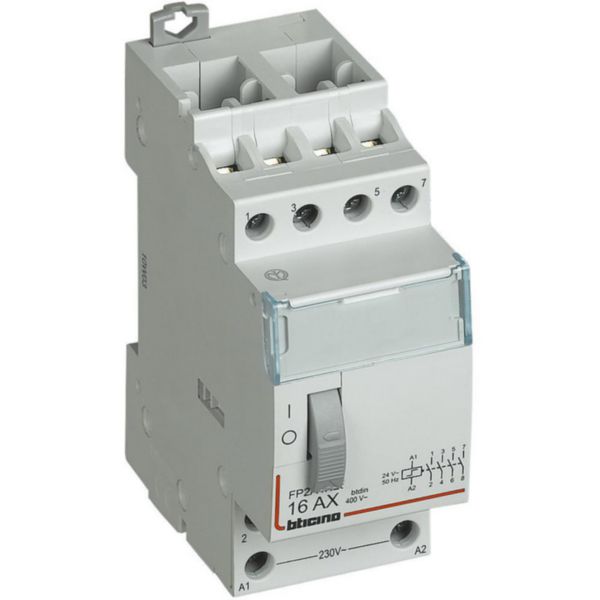

Pulse operated latching relay - In=16 A - Vn=230Vac - 4NO - 2 modules
BT-FP2A4N230
|
8012199957883
Technical Characteristics
Function
Mechanical for centralized control
Mounting method
DIN rail
Width in number of modular spacings
1
Number of contacts as normally open contact
4
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1 (Min-Max)
210-250 V
Type of control voltage 1
AC
Frequency control voltage 1 (Min-Max)
50-60 Hz
Type of control voltage 2
AC
Supply voltage (Min-Max)
210-230 V
Voltage type (supply voltage)
AC
Max. switching current (cos phi = 0.6)
16 A
Suitable for manual operation
Yes
Width
35.6 mm
Height
95 mm
Depth
70.2 mm
degree of impact strength (IK)
IK04
Degree of protection (IP)
IP3X
Operating / setting temperature (Min-Max)
-25-60 °C
Storage temperature (Min-Max)
-40-70 °C
Electric supplying direction
From the bottom
Terminal marking indication
Yes
Stress test conformity (1000V)
Yes
Halogen free
Yes
Connection type
Screwed terminal
Terminals capacity (Min-Max)
0.75-6 mm²
Connection type
Cable
Label space/information surface
Yes
Documentation
1 documents
Agreement
LGZYUKYASI | FILE (510 KB) | EN · IT
