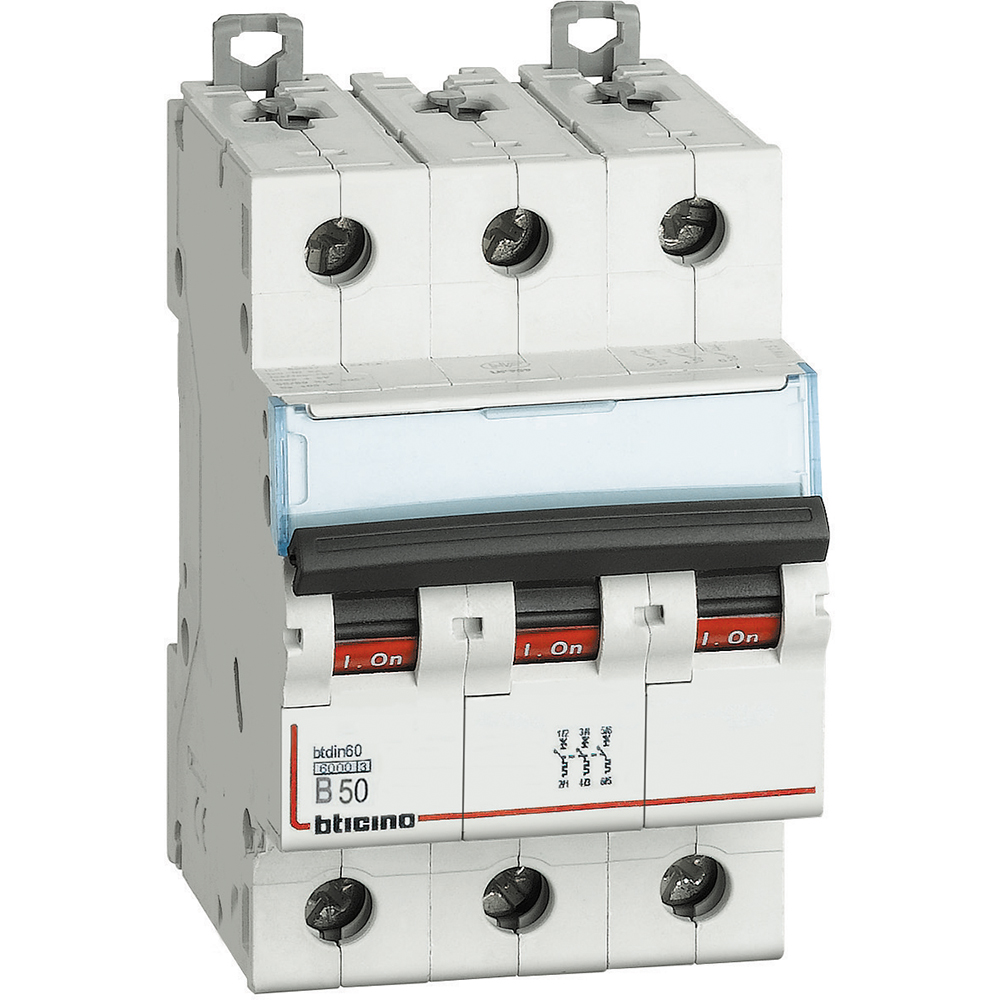

BTDIN60 - 3P Mcb curve B - In= 50A - Icn= 6kA - Vn= 400Vac
BT-FN83B50
|
8005543476376
Technical Characteristics
Built-in depth
44 mm
Release characteristic
B
Number of poles (total)
3
Number of protected poles
2
Rated current
50 A
Rated voltage
400 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
4 kV
Voltage type
AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
3 kA
Frequency (Min-Max)
50-50 Hz
Current limiting class
3
Concurrently switching neutral conductor
No
Pollution degree
2
Additional equipment possible
Yes
Width in number of modular spacings
3
Degree of protection (IP)
IP20
Ambient temperature during operating (Min-Max)
-25-60 °C
Connectable conductor cross section multi-wired (Min-Max)
1.5-25 mm²
Connectable conductor cross section solid-core (Min-Max)
1.5-35 mm²
Explosion-proof
No
Documentation
2 documents
Technical Sheet
F03693EN-01 | PDF (601 KB) | EN
Technical Sheet
IDP000035EN_03 | PDF (2 MB) | EN
