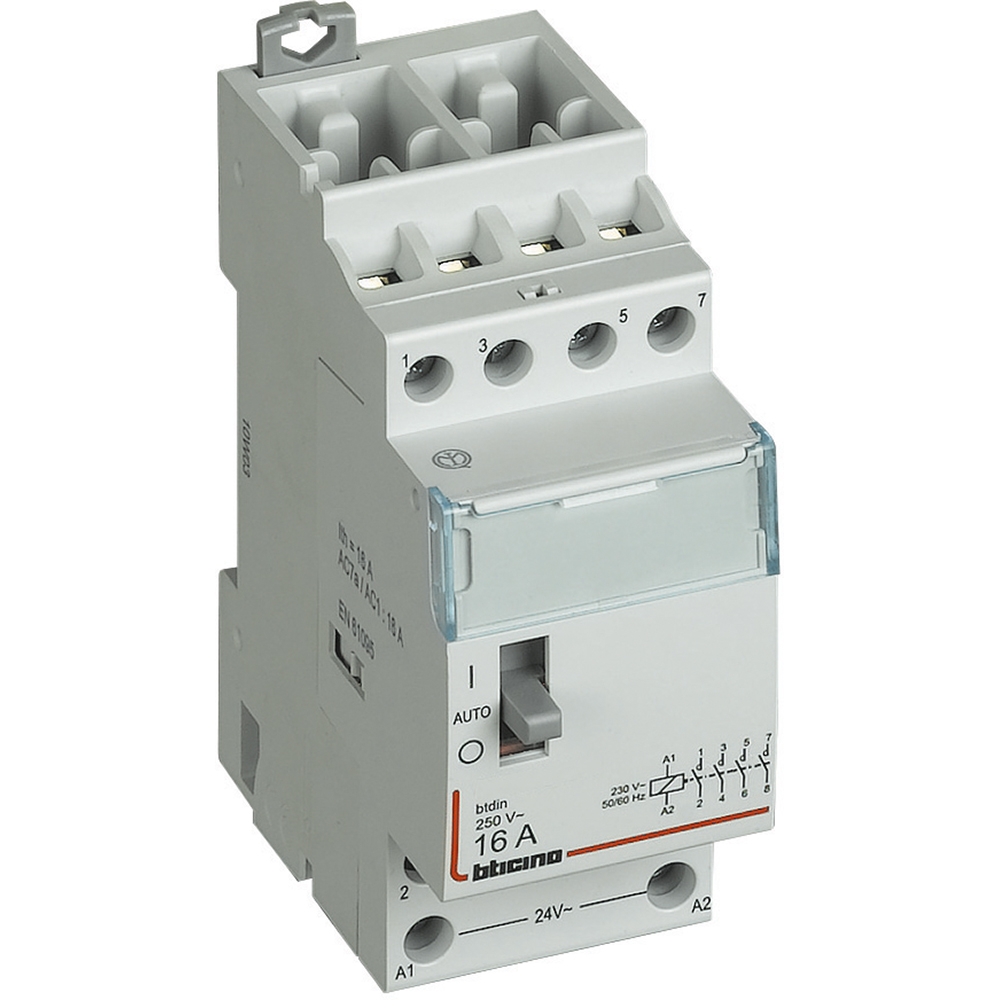

Monostable relay - In=16 A - Vn=24 Vac - 4NO - 2 modules
BT-FM2A4N24M
|
8012199957746
Technical Characteristics
Rated operating voltage (Min-Max)
250-250 V
Rated operation current
16 A
Rated excitation voltage (Min-Max)
20-26 V
Voltage type (operating voltage)
AC
Voltage type (excitation voltage)
AC
Number of contacts as normally open contact
4
Number of contacts as normally closed contact
0
Max. incandescent lamp load
2000 W
Max. load fluorescent lamp
1300 VA
Max. load fluorescent lamp (Duo circuit)
1400 VA
Slider for hand switch
Yes
Width in number of modular spacings
1
Degree of protection (IP)
IP2X
Operating / setting temperature (Min-Max)
-5-40 °C
Frequency (Min-Max)
50-60 Hz
Colour
Grey
RAL-number
7035
Connection type
Cable
Label space/information surface
Yes
Mounting method
DIN rail
Documentation
1 documents
Instruction Use
G2290B | PDF (1.4 MB)
