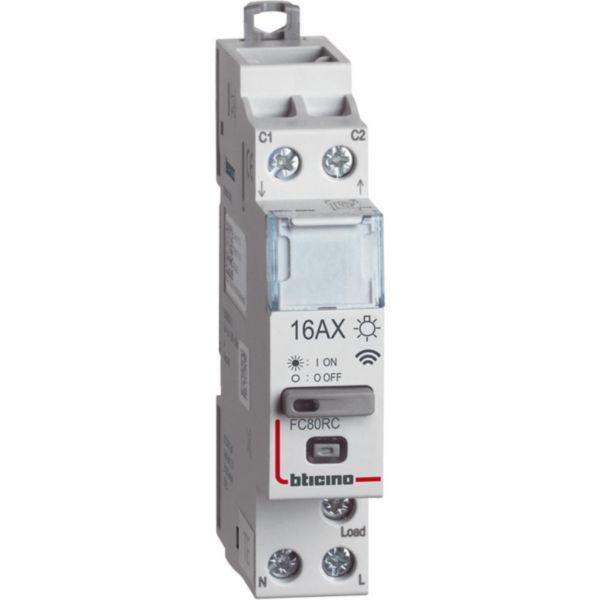

Name: DIN smart relay for Light control with maximum absorption In = 16 A
Brand: BTicino
SKU: BT-FC80RC
Availability: InStock

Description

Btdin with Netatmo Smart Latching relay allows to remote control ON and OFF, lighting loads previously managed by push buttons (wireless and / or wired ones) by smartphone with the Home+Control app and/or by voice via a voice assistant.

Product characteristics

16A / Closing contact " F "/ Silent switch /240V/ 50Hz
Easy and fast pairing with Legrand 'With Netatmo' wireless on-wall push buttons (taptap pairing)
Can be associated to anykind of on-wall push-buttons
Energy consumption: information is automatically available for the circuit to whom the smart latching relay is wired to.
Scheduling: automatic opening and reclosing action scenarios based on a timeline. (daily/weekly/specific avent such as “holidays”)

Recommendations / Restrictions

Beforehand requires the installation of a "Starter Pack" or a "Module Control" Legrand with Netatmo

Products benefits

Installation

The Smart Latching Relay can ‘mix and match’ with existing non-connected modules in any standard DIN panelboard.

Usage

Keep constantly up-to-date with the consumption of your light loads and remotely control them from your smartphone wherever you are.

Advantages

Fast installation: easily create additional control points with one or more Legrand 'With Netatmo' wireless on-wall push buttons
Remote control your light loads by smarphone and/or your voice
In Home+Control app, get the possibility to create personalized scenario: daily/weekly/specific avent such as “holidays” ...

Technical Characteristics

Function Electronic switch

Mounting method DIN rail

Width in number of modular spacings 1

Built-in depth 44 mm

Number of contacts as normally open contact 1

Rated switch current 16 A

Supply voltage (Min-Max) 240-240 V

Voltage type (supply voltage) AC

Max. incandescent lamp load 3840 W

Max. load fluorescent lamp 3000 VA

Max. switching current (cos phi = 0.6) 16 A

Suitable for manual operation Yes

Width 17.8 mm

Height 95.9 mm

Depth 70.1 mm

degree of impact strength (IK) IK04

Degree of protection (IP) IP3X

Operating / setting temperature (Min-Max) -5-45 °C

Storage temperature (Min-Max) -40-70 °C

Electric supplying direction Not applicable

Terminal marking indication Yes

Stress test conformity (1000V) Yes

Halogen free Yes

Connection type Screwed terminal

Terminals capacity (Min-Max) 0.75-6 mm²

Connection type Cable

Label space/information surface Yes

DIN smart relay for Light control with maximum absorption In = 16 A
