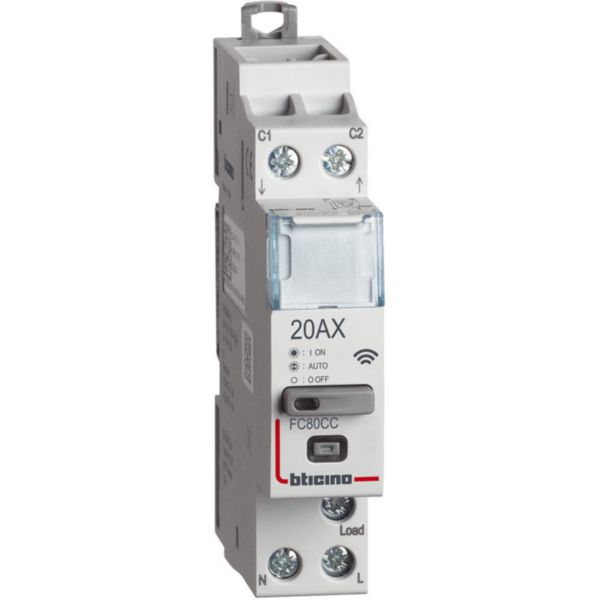

Name: Smart DIN contactor suitable for controlling single-phase loads
Brand: BTicino
SKU: BT-FC80CC
Availability: InStock

Description

Btdin with Netatmo Smart Contactor allows to remotely control (ON/OFF) power-hungry loads such as; water heater, swimming pool pomp, charging plug for electric cars) by smartphone with Home+Control app and/or by voice via a voice assistant.

Product characteristics

20A/ Closing contact " 1F "/ Silent switch /240V/ 50Hz
Can replaces anexisting modular contactor or can control an existing one. Does not require specific protection
Fit anykind of power hungry appliances such as: water heater swimming pool pomp heaters, charging plug for electric cars …
Energy consumption: information is automatically available for the circuit to whom the smart contactor is wired to.
Scheduling: automatic opening and reclosing action scenarios based on a timeline. (daily/weekly/specific avent such as “holidays”)

Recommendations / Restrictions

Beforehand requires the installation of a "Starter Pack" or a "Module Control" Legrand with Netatmo

Products benefits

Installation

The Smart Contactor can directly manage the appliance or can ‘mix and match’ with existing non-connected contactor in any standard DIN panelboard.

Usage

Keep constantly up-to-date with the consumption of one of your power hungry appliances and remotely control it from your smartphone wherever you are.

Advantages

Plan your energy savings! Define one or more schedules for switching your appliances on and off, very easily from the Home + Control app.
Remote control your power-hunbgry appliances by smarphone and/or your voice
In Home+Control app, get the possibility to create personalized scenario: daily/weekly/specific avent such as “holidays” ...

Technical Characteristics

Rated operating voltage (Min-Max) 240-240 V

Rated operation current 20 A

Voltage type (operating voltage) AC

Number of contacts as normally open contact 1

Slider for hand switch No

Width in number of modular spacings 1

Additional equipment possible No

Degree of protection (IP) IP3X

Width 17.8 mm

Height 95.9 mm

Depth 70.1 mm

degree of impact strength (IK) IK04

Operating / setting temperature (Min-Max) -5-45 °C

Storage temperature (Min-Max) -40-70 °C

Frequency (Min-Max) 50-50 Hz

Terminal marking indication Yes

Colour Grey

RAL-number 7035

Halogen free Yes

Terminals capacity (Min-Max) 0.75-6 mm²

Connection type Cable

Label space/information surface Yes

Mounting method DIN rail

Smart DIN contactor suitable for controlling single-phase loads
