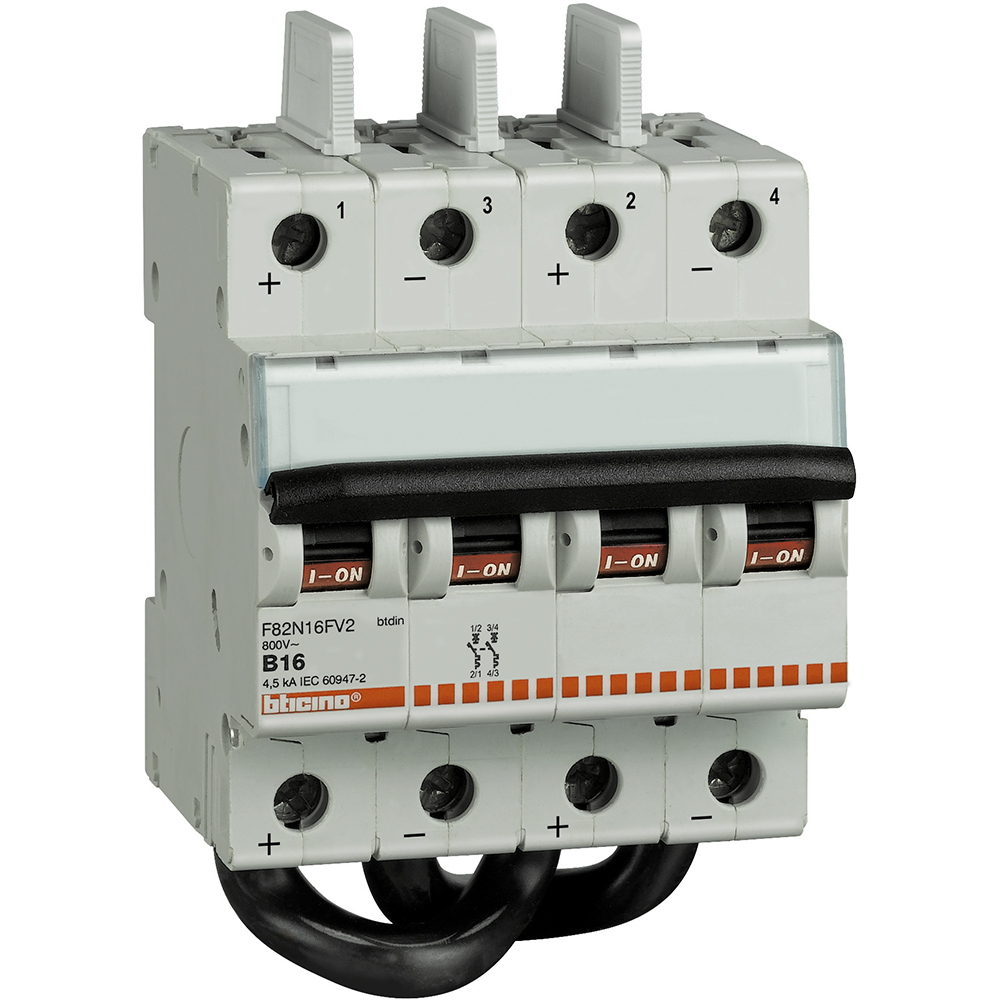

Modular circuit breaker 2P for photovoltaic - In= 20A - Vn= 800Vdc
BT-F82N20FV2
|
8005543405413
Technical Characteristics
Built-in depth
44 mm
Release characteristic
B
Number of poles (total)
2
Number of protected poles
2
Rated current
20 A
Rated voltage
800 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
4 kV
Voltage type
DC
Concurrently switching neutral conductor
No
Pollution degree
2
Additional equipment possible
Yes
Width in number of modular spacings
2
Degree of protection (IP)
IP20
Ambient temperature during operating (Min-Max)
-25-70 °C
Connectable conductor cross section multi-wired (Min-Max)
1.5-25 mm²
Connectable conductor cross section solid-core (Min-Max)
1.5-35 mm²
Explosion-proof
No
Width
35.4 mm
Height
94.8 mm
Depth
77.8 mm
degree of impact strength (IK)
IK02
Storage temperature (Min-Max)
-40-70 °C
Nominal voltage (Min-Max)
225-275 V
Electric supplying direction
By the top
Colour
Grey
RAL-number
7035
Halogen free
Yes
Connection type
Screwed terminal
Label space/information surface
Yes
Mounting method
DIN rail
