  • Disconnector - accessoriables with contacts and releases In=100A - 3P - 3 modules
Btdin BTicino

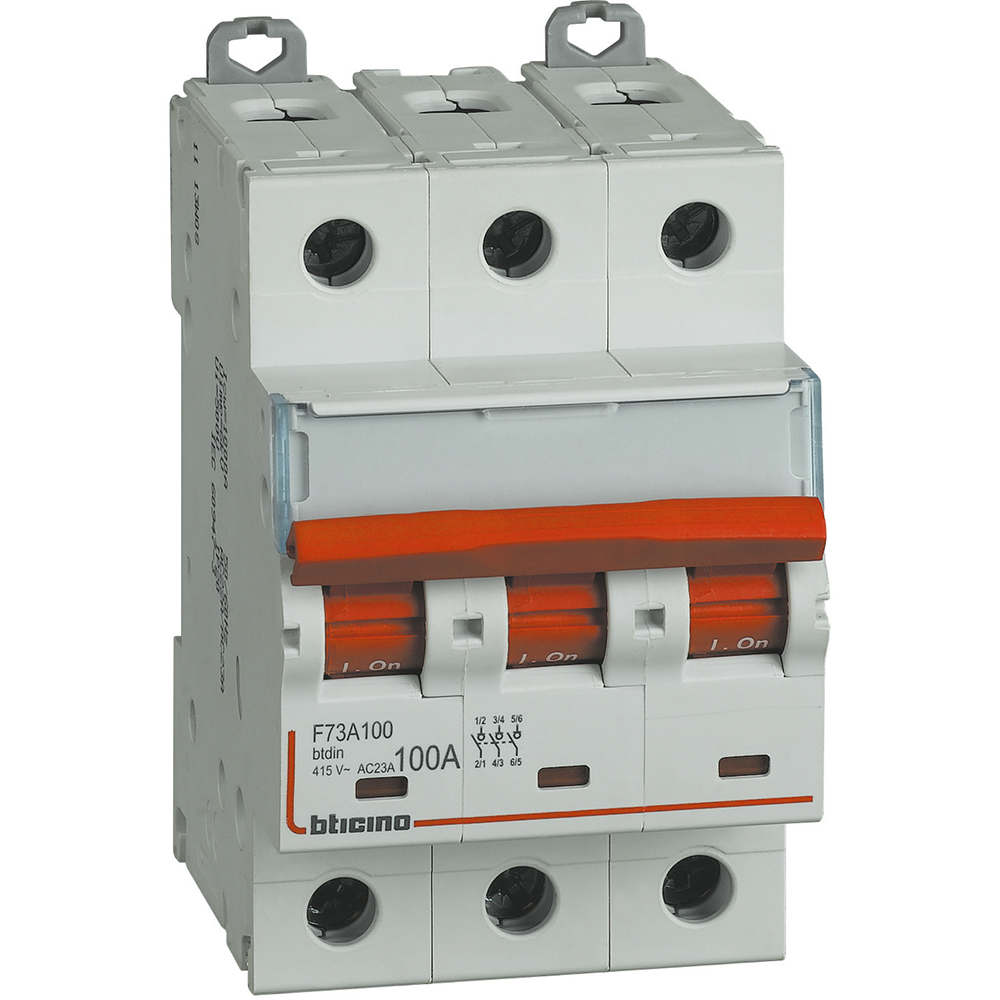

Disconnector - accessoriables with contacts and releases In=100A - 3P - 3 modules

BT-F73A100 | 8005543490068
Disconnector - accessoriables with contacts and releases In=100A - 3P - 3 modules
Technical Characteristics
Version as main switch Yes
Version as maintenance-/service switch Yes
Version as safety switch Yes
Version as emergency stop installation Yes
Max. rated operation voltage Ue AC 415 V
Rated permanent current Iu 100 A
Rated operation power at AC-23, 400 V 40 kW
Number of poles 3
Number of auxiliary contacts as normally closed contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as change-over contact 3
Motor drive optional Yes
Motor drive integrated No
Voltage release optional Yes
Device construction Complete device in housing
Suitable for floor mounting Yes
Suitable for front mounting 4-hole Yes
Suitable for front mounting centre No
Suitable for distribution board installation Yes
Suitable for intermediate mounting No
Type of control element Wing knob
Interlockable Yes
Type of electrical connection of main circuit Screw connection
Degree of protection (IP), front side IP20
Documentation
1 documents
Instruction Use
G2297G | PDF (1.7 MB)
