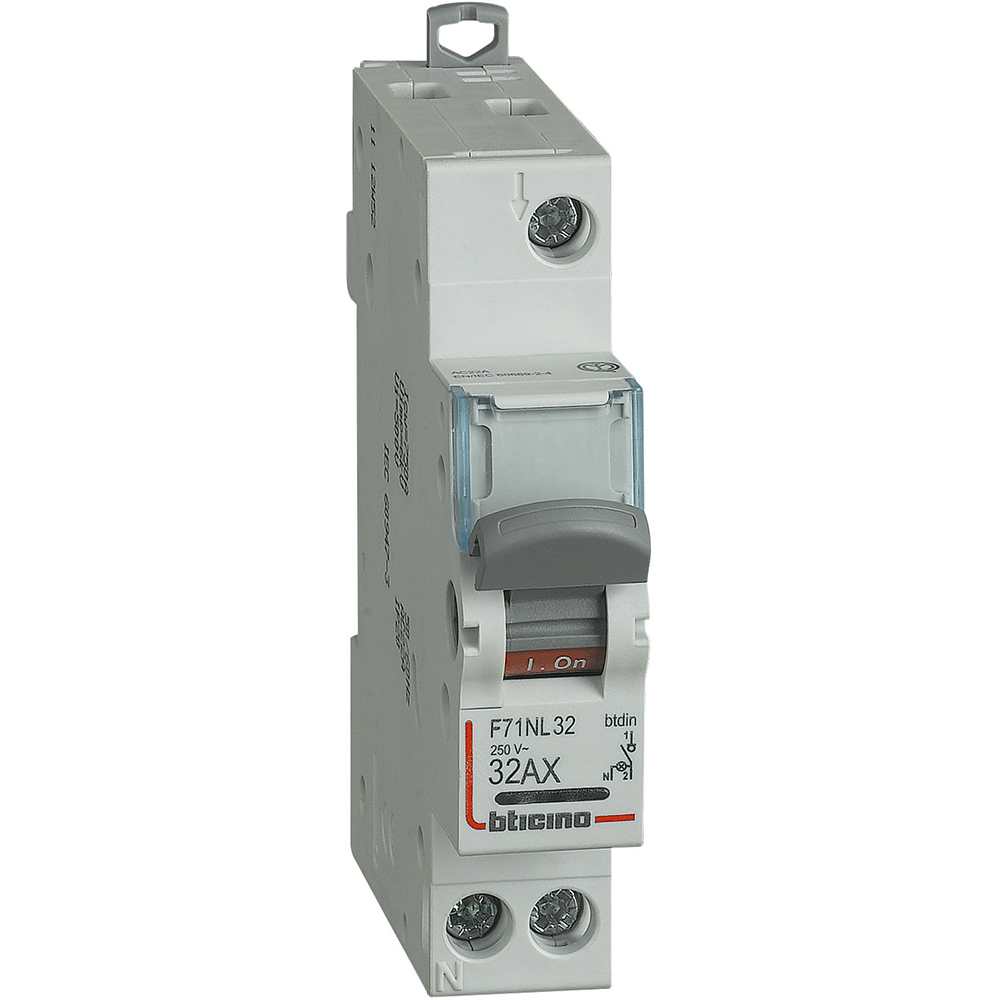

Disconnector with signalling lamp - In= 32A -1P - 1 module
BT-F71NL32
|
8005543487853
Technical Characteristics
Version as main switch
Yes
Version as maintenance-/service switch
No
Version as safety switch
Yes
Version as emergency stop installation
No
Max. rated operation voltage Ue AC
250 V
Rated permanent current Iu
32 A
Conditioned rated short-circuit current Iq
4500 kA
Number of poles
1
Motor drive optional
No
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Wing knob
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Documentation
1 documents
Technical Sheet
IDP000033EN-00 | PDF (302 KB) | EN
