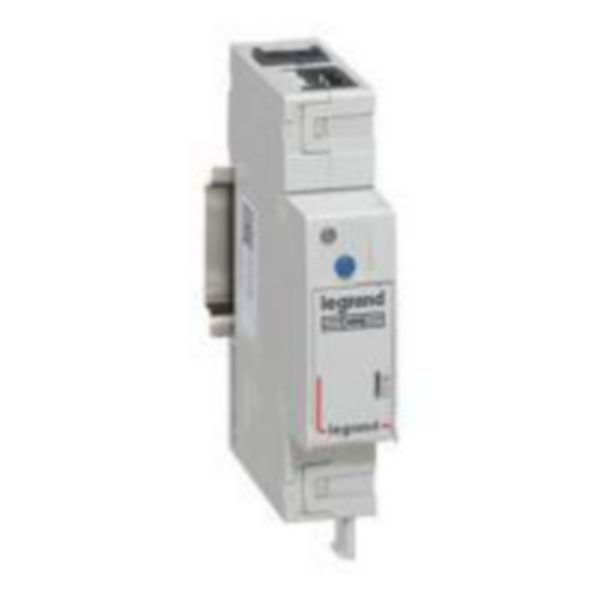

Name: Actuator with integIn= sensor for controlled load consumption module
Brand: BTicino
SKU: BT-F522
Availability: InStock

Description

Actuator with integrated current sensor for controlled load consumption module. 1 relay – 10 A for incandescent lamps and 4 A for fluorescent lamps or ferromagnetic transformers and 500 W for LED lamps and compact fluorescent lamps

Product characteristics

Earth leakage current control made possible by connecting an additional toroid, item 3523
Bistable relay with zero crossing for load control Management and/or Automation functions.
N° of modules 1
Rated voltage 27Vdc
Rated current 30mA

Technical Characteristics

Bus system KNX No

Bus system KNX-RF (Radio Frequency) No

Bus system radio frequency No

Bus system LON No

Bus system Powernet No

Other bus systems Other

Model Energy meter

Connection type Direct

Reactive power No

Approved according to PTB No

S0 impulse interface None

Tariff switch No

Connected object No

Actuator with integIn= sensor for controlled load consumption module
