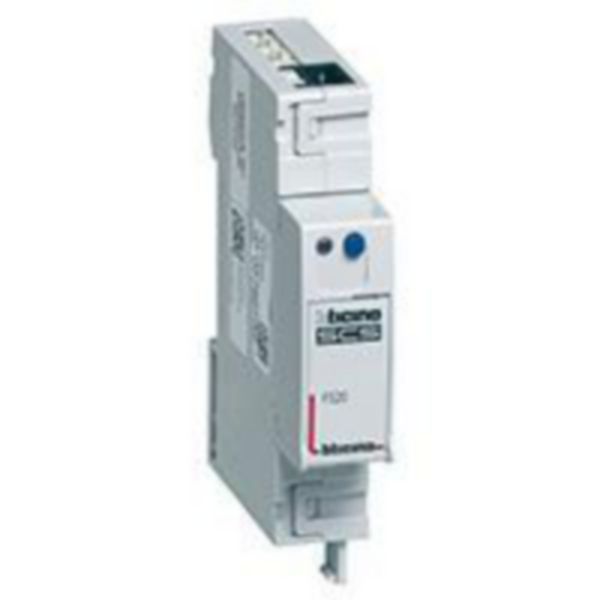

Device for the measurement of electric power on a maximum of three lines - 1 module DIN.
BT-F520
|
8005543402061
Description
Device for the measurement of electric power on a maximum of three lines, made possible by connecting three toroids to the appropriate inputs. The data can be displayed on Touch Screen or Multimedia Touch Screen. DIN rail mounting version.
Product characteristics
- The device is supplied with 1 toroid
- Rated voltage 27Vdc
- Rated current 35mA
- N° of modules 1
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Model
Direct/transformer
Connection type
Direct
Reactive power
No
Approved according to PTB
No
S0 impulse interface
None
Tariff switch
No
Connected object
No
Documentation
3 documents
Installation Guide
GUI-MHOME | PDF (22.7 MB) | EN
Technical Sheet
ST-00001810-EN | PDF (351 KB) | EN
Instruction Use
U4724E | PDF (2.3 MB) | IT · EN · FR · DE · ES · PT · NL
5 documents
Brochure
BRO-LNOW-2M | PDF (15.9 MB) | EN
Brochure
BRO-LNOW-3M | PDF (16.3 MB) | EN
Brochure
BRO-MHOME | PDF (2.7 MB) | EN
Catalog Commercial Page
CAT-LNOW-2M | PDF (23.1 MB) | EN
Catalog Commercial Page
CAT-LNOW-3M | PDF (22.5 MB) | EN
