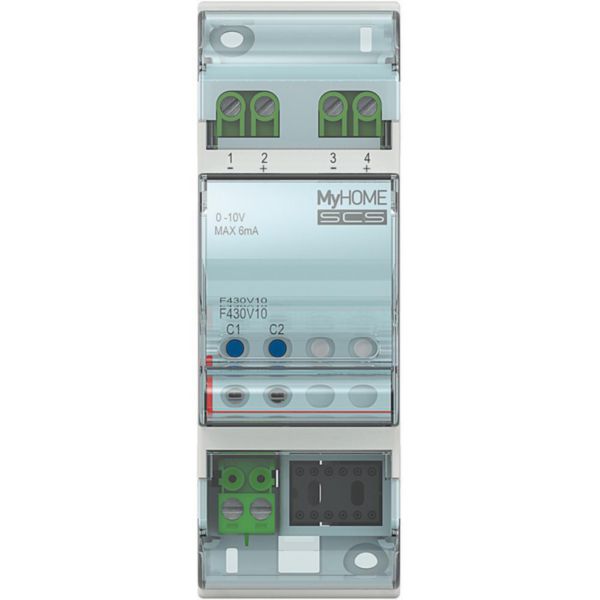

Actuator with 2 x 0-10 Volt outputs for the control of 0-10 proportional valves.
BT-F430V10
|
8005543505304
Description
Actuator with 2 x 0-10 Volt outputs for the control of 0-10 proportional valves - SCS bus connection, 2 DIN modules
Product characteristics
- Rated voltage 27Vdc
- Rated current 25mA
- N° of modules 2
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
2
Local operation/hand operation
Yes
With LED indication
Yes
Number of digital inputs
0
Suitable for C-load
No
Max. number of switching contacts
0.001
Rated current
0.001 A
Rated operating voltage (Min-Max)
0-10 V
Different phases connectable
No
With bus connection
Yes
Modular expandability
No
Degree of protection (IP)
IP20
Connected object
No
Product use function
Thermal comfort management
