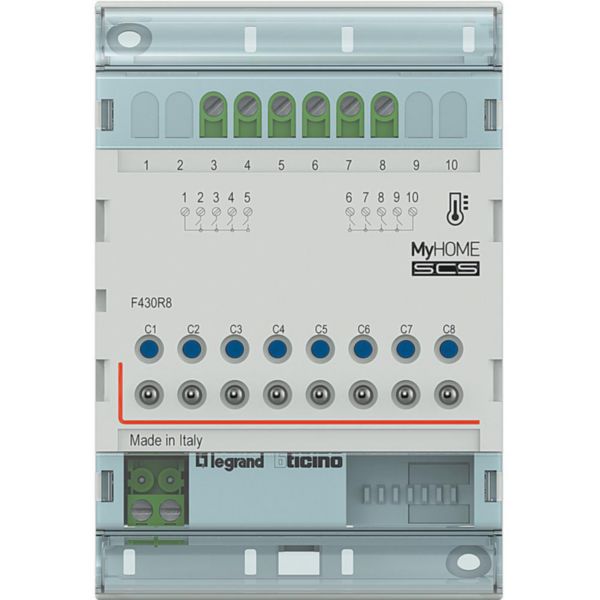

Actuator with 8 relays for on-off and motorised valves, pumps and fan coils with 2 and 4 tubes.
BT-F430R8
|
8005543501771
Description
Actuator with 8 independent relays for the control of on-off valves, motorised valves (open-close and three points), pumps and fan coils with 2 and 4 tubes – 4A resistive, 1A motor valves, pumps and fan-coils - SCS bus connection.
Product characteristics
- Rated voltage 27Vdc
- Rated current 100mA
- N° of modules 4
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
4
Local operation/hand operation
Yes
With LED indication
Yes
Number of digital inputs
0
Suitable for C-load
No
Max. number of switching contacts
8
Rated current
4 A
Rated operating voltage (Min-Max)
240-240 V
Different phases connectable
No
With bus connection
Yes
Modular expandability
No
Degree of protection (IP)
IP20
Connected object
No
Product use function
Thermal comfort management
