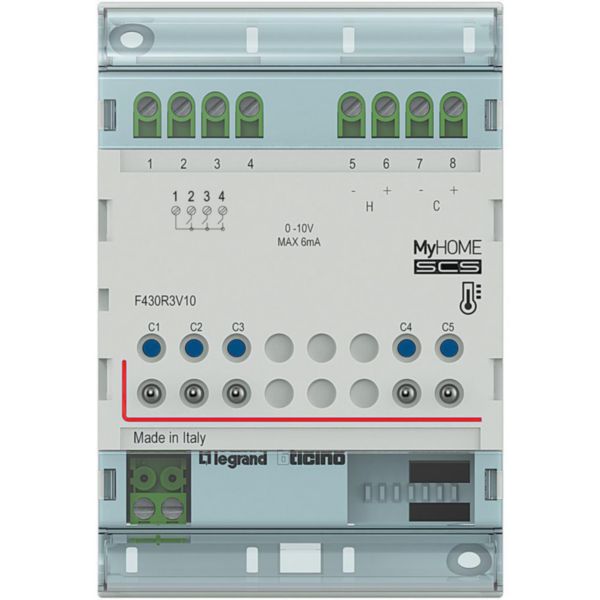

Actuator with 3 relays and 2 x 0-10 Volts outputs for fan coils with proportional 0-10 Volt valves .
BT-F430R3V10
|
8005543502846
Description
Actuator with 3 independent relays and 2 x 0-10 Volts outputs for the control of fan coils with 2 and 4 tubes with proportional 0-10 Volt valves – 4A resistive, 1A fan coil - SCS bus connection, 4 DIN modules.
Product characteristics
- Rated voltage 27Vdc
- Rated current 60mA
- N° of modules 4
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
4
Local operation/hand operation
Yes
With LED indication
Yes
Number of digital inputs
0
Suitable for C-load
No
Max. number of switching contacts
3
Rated current
4 A
Rated operating voltage (Min-Max)
240-240 V
Different phases connectable
No
With bus connection
Yes
Modular expandability
No
Degree of protection (IP)
IP20
Connected object
No
Product use function
Thermal comfort management
