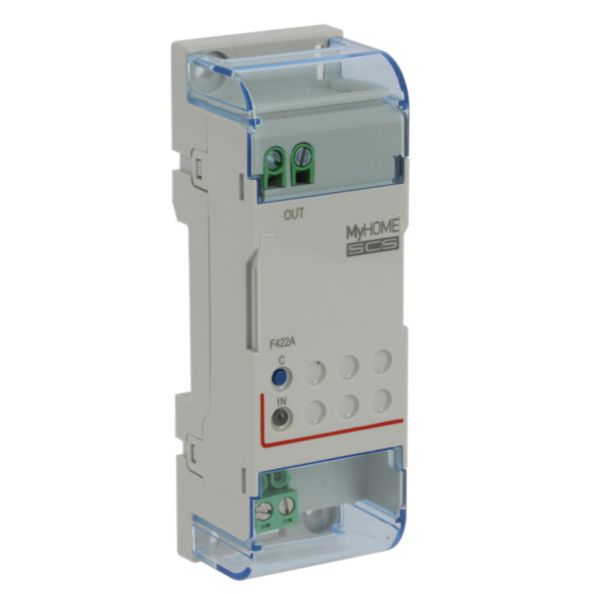

SCS addresses extension interface
BT-F422A
|
8005543714959
Description
Interface between SCS BUS based systems, dedicated just to the address extention and not to all the functions supported with the previous BT-F422. Addresses extention over 175
Product characteristics
- 2 DIN modules
- It can be used with both DIN server BT-F460 and Classe300EOS with Netatmo
- Each interface can add 175 addresses, with a maximum of 2 interfaces for installation
Products benefits
Advantages
- It can be installed in MyHOME system and use it as logic expansion
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Model
Other
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
2
Demounting protection
No
With LED indication
Yes
Updateable
No
Operating voltage (Min-Max)
27-27 V
Voltage type
DC
Protocol
Other
Provider dependent
No
Visualization
No
Web-Server
No
Radio interface
No
IR interface
No
Degree of protection (IP)
IP20
Width
35.6 mm
Height
105 mm
Depth
30.35 mm
Operating / setting temperature (Min-Max)
5-55 °C
Storage temperature (Min-Max)
-25-70 °C
Terminal marking indication
Yes
Halogen free
Yes
Terminals capacity (Min-Max)
0.5-1.5 mm²
Connected object
No
