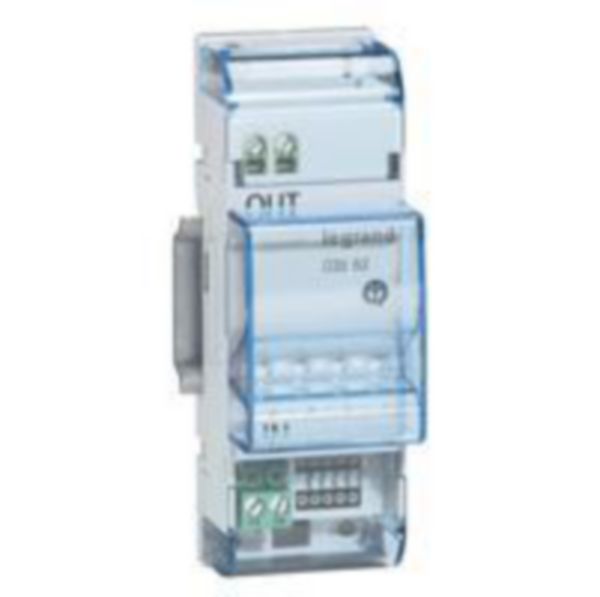

Interface between SCS BUS based systems, dedicated to different functions - 2 lowered DIN modules
BT-F422
|
8012199490854
Description
Interface between SCS BUS based systems, dedicated to different functions.
Product characteristics
- 2 DIN modules
- Rated voltage 27 V d.c.
- Rated current 0,125 A
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Model
Other
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
2
Demounting protection
No
With LED indication
Yes
Updateable
No
Operating voltage (Min-Max)
27-27 V
Protocol
Other
Provider dependent
No
Visualization
No
Web-Server
No
Radio interface
No
IR interface
No
Degree of protection (IP)
IP20
Width
35.6 mm
Height
105 mm
Depth
30.35 mm
Operating / setting temperature (Min-Max)
5-55 °C
Storage temperature (Min-Max)
-25-70 °C
Terminal marking indication
Yes
Type of load
Not applicable
Halogen free
Yes
Connection type
Screwed terminal
Terminals capacity (Min-Max)
0.5-1.5 mm²
Connected object
No
Application store for download
App Store, Google Play Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
No
Interoperable connection Protocol
No
Connectable by Internet box
No
