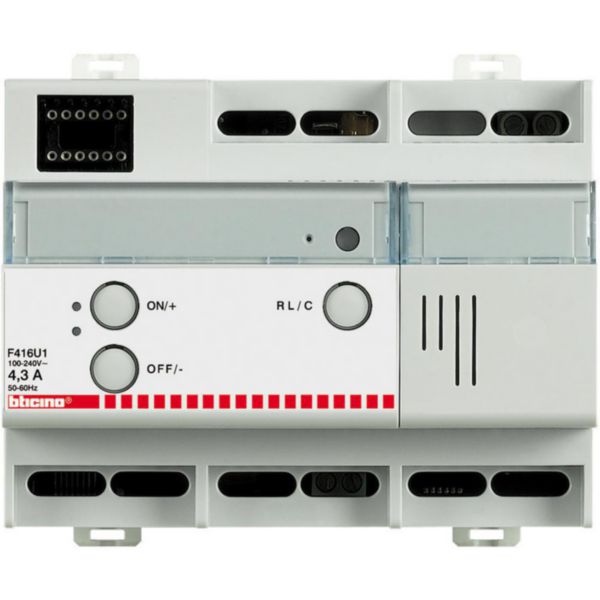

Multiload dimmer, 1 output with maximum load 4.3 A at 230Vac
BT-F416U1
|
8012199968209
Description
Multiload dimmer, 1 output with maximum load 4.3 A at 230 Va.c., connection to terminal RJ45, degree of protection IP20, power supply 100/240 Va.c. 50/60 Hz, direct load control pushbutton - 6 DIN modules.
Product characteristics
- 6 DIN modules
- Multiload dimmer
- 1 output
- Bus SCS
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Model
Dimming actuator
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
6
With bus connection
Yes
Bus module detachable
No
Substation input
No
Local operation/hand operation
Yes
With LED indication
Yes
Number of outputs
1
Output power (Min-Max)
0-1000 W
Power boost suitable
No
Type of load
Universal
Voltage (Min-Max)
100-240 V
Parallel-service possible
No
Frequency (Min-Max)
50-60 Hz
Degree of protection (IP)
IP20
Compatible with Casambi
No
