Name: 2 module flush mounted actuator for shutter
Brand: BTicino
SKU: BT-F401
Availability: InStock

Description

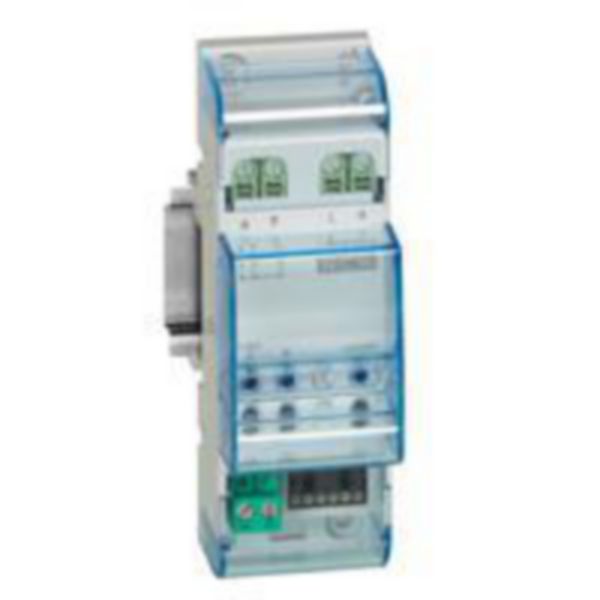

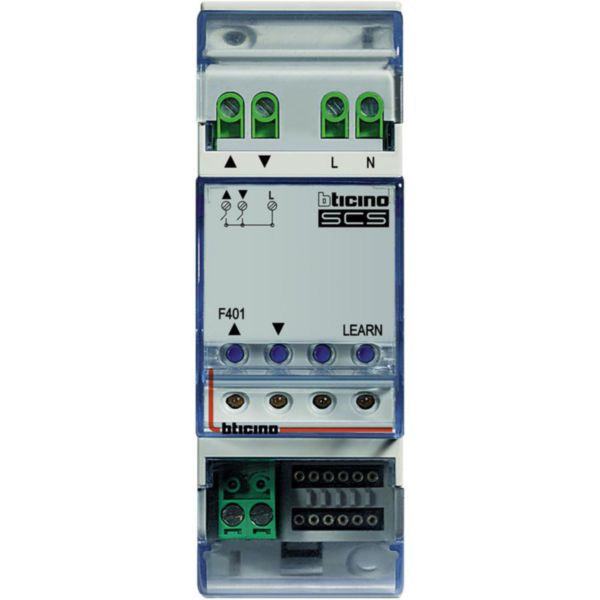

2 module flush mounted actuator with 2 internal relays and 3 pushbuttons, conceived for use with control devices LN4660M2, for the management of shutters. For the UP/DOWN monostable and bistable functions, also with PRESET.

Product characteristics

2 DIN modules
Rated voltage 27 V d.c.
Rated current 0,016 A
Rated power W 500

Technical Characteristics

Bus system KNX No

Bus system KNX-RF (Radio Frequency) No

Bus system radio frequency No

Bus system LON No

Bus system Powernet No

Other bus systems Other

Radio frequency bidirectional No

Mounting method DRA (DIN-rail adaptor)

With anti-theft/dismantling protection No

With bus connection Yes

Number of actuation points 1

Number of buttons 3

With LED indication Yes

With label area No

With display No

Material Plastic

Material quality Thermoplastic

Surface protection Other

Colour White

RAL-number (similar) 9011

Transparent No

With room temperature controller No

With IR sensor No

Degree of protection (IP) IP20

Min. depth of built-in installation box 55 mm

Width 36 mm

Height 105 mm

Depth 31 mm

degree of impact strength (IK) IK04

Operating / setting temperature (Min-Max) 0-40 °C

Storage temperature (Min-Max) -10-70 °C

Frequency (Min-Max) 0-0 Hz

Standby consumption 5 mA

Terminal marking indication Yes

Halogen free No

Antimicrobial treatment No

Terminals capacity (Min-Max) 0.5-2.5 mm²

Cable nature for connection Flexible or rigid

Label space/information surface No

Addressable Yes

Connected object No

Operating method SCS

With voice command Yes

Programmable Yes

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Product use function Shutter management
