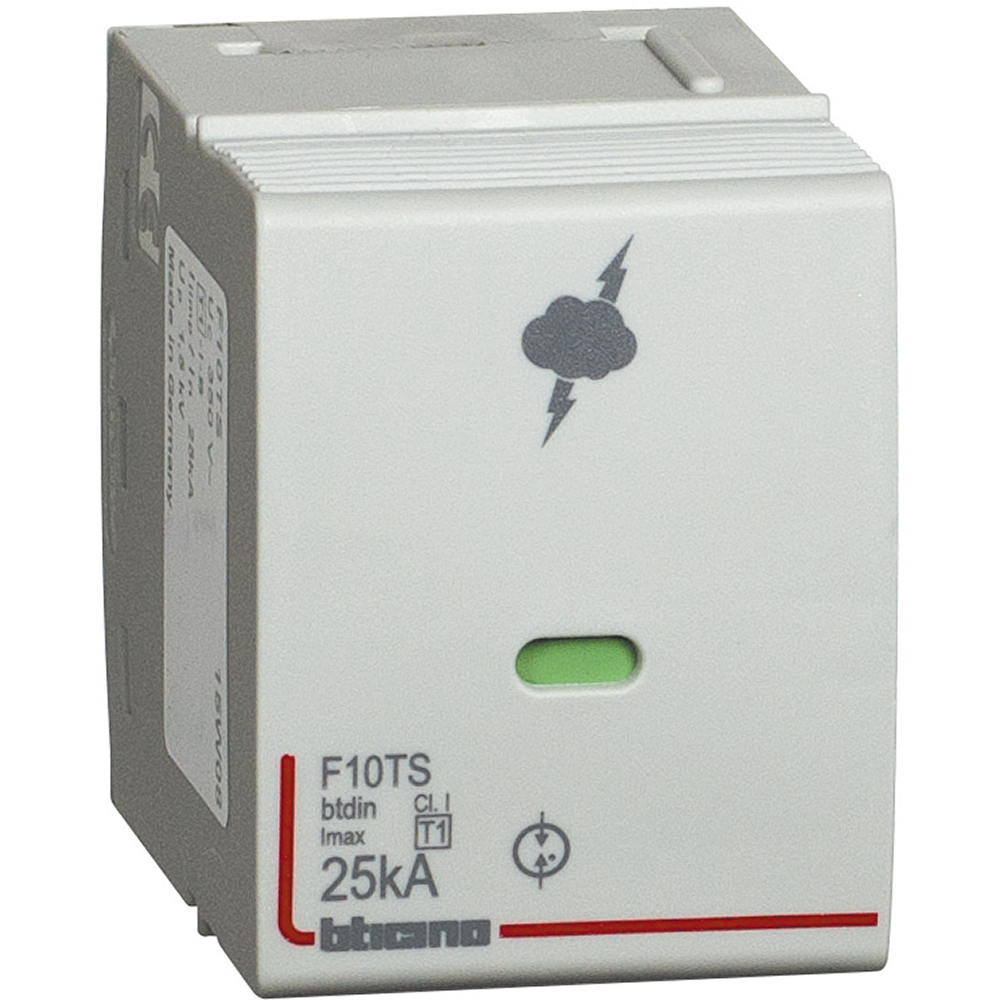

Replaceable cartridge for SPD type 1 - 1 module - Iimp 25KA
BT-F10TS
|
8012199943220
Description
Replaceable cartridge for surge protective device type 1 - 1 module - Iimp 25KA
Product characteristics
- 25kA
- 230V
- IP 20
Recommendations / Restrictions
- "To provide correct protection, a lightning arrester is recommended:- at the origin of each installation (mandatory depending on the type and location of the installation to be protected,- at the origin of divisional switchboards: secondary protection or fine protection of sensitive equipment,- on all outputs of external electrical circuits (supply to secondary buildings, external lighting or external electrical panels, etc.).A communication network arrester should always be installed to protect communication equipment in the presence of a lightning arrester on the low-voltage network."
Technical Characteristics
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
Yes
Nominal voltage AC
230 V
Max. continuous voltage AC
320 V
Integrated backup fuse
No
Mounting method
Other
Construction size
Other
Signalling at the device
Optical
Category type 2
No
Degree of protection (IP)
IP20
Documentation
2 documents
Technical Guide
EXB20026 | PDF (8 MB) | EN
Instruction Use
F8598D | PDF (975 KB)
