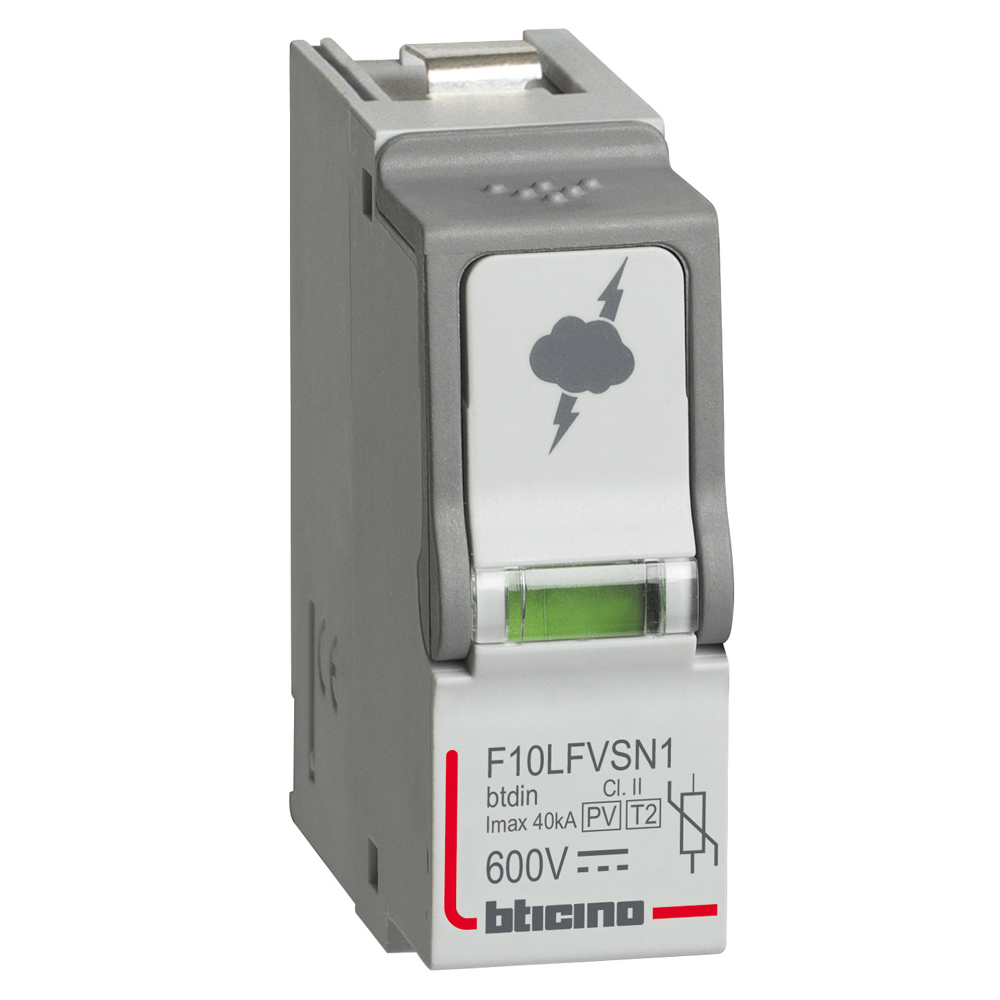

Replaceable cartridge for SPD for photovoltaic applications at 600Vdc
BT-F10LFVSN1
|
8005543583623
Technical Characteristics
System configuration DC
Yes
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Number of conductors (without earthing)
1
Nominal discharge surge current In (8/20)
20 kA
Max. discharge surge current (8/20)
40 kA
Nominal voltage DC
600 V
Max. continuous voltage DC
720 V
Voltage protection level
2.5 kV
Integrated backup fuse
No
Mounting method
On basic element
Construction size
1 modular spacing
With remote signalling contact
No
Signalling at the device
None
Category type 2
Yes
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-25-60 °C
Storage temperature (Min-Max)
-25-60 °C
Electric supplying direction
By the top
Terminal marking indication
Yes
Colour
Grey
RAL-number
7035
Halogen free
Yes
Connection type
Push-in clamp
Connection type
Other
Label space/information surface
No
