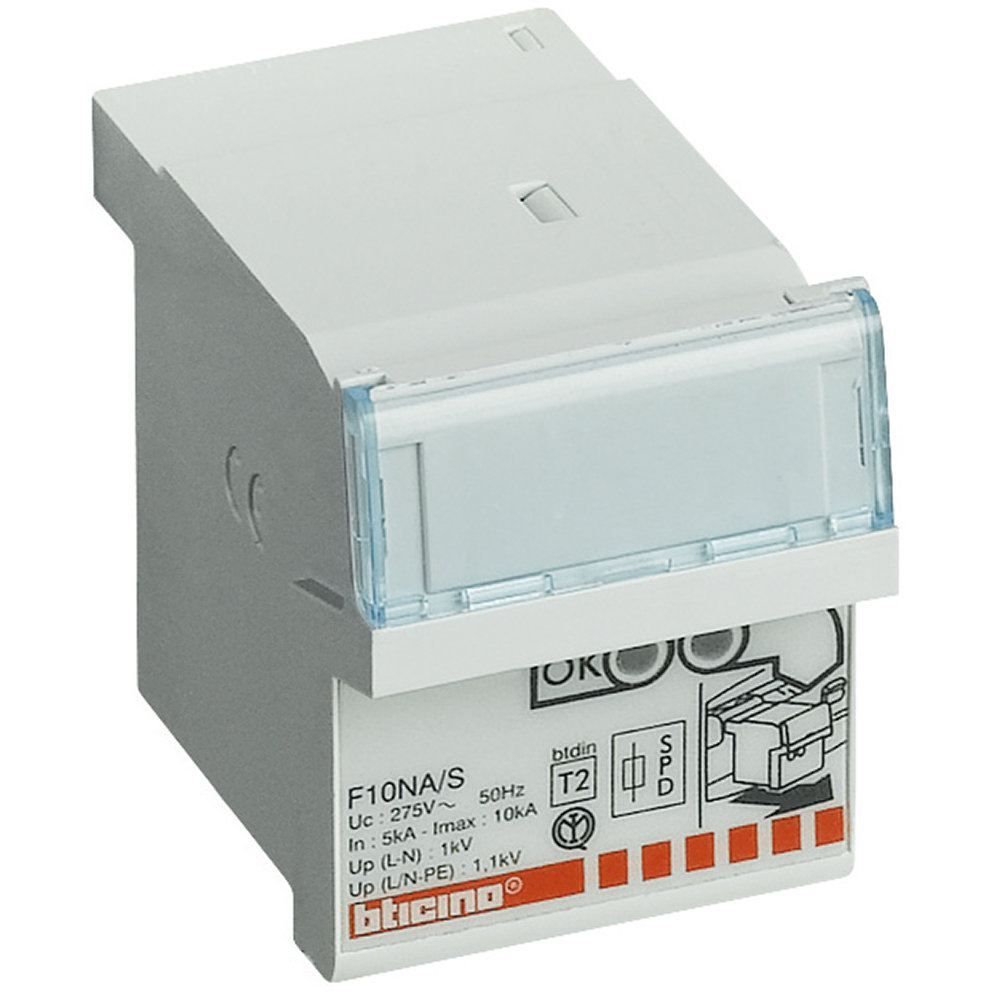

Replaceable cartridge for SPD item F10AP2
BT-F10APS
|
8005543492819
Description
The BTICINO lightning arrester is a device that prevents damaging equipment due to lightning. It is also equipped with overload and short circuit protection.Suitable for domestic and small tertiary installation.
Product characteristics
- 40kA
- 230V
Recommendations / Restrictions
- "To provide correct protection, a lightning arrester is recommended:- at the origin of each installation (mandatory depending on the type and location of the installation to be protected,- at the origin of divisional switchboards: secondary protection or fine protection of sensitive equipment,- on all outputs of external electrical circuits (supply to secondary buildings, external lighting or external electrical panels, etc.).A communication network arrester should always be installed to protect communication equipment in the presence of a lightning arrester on the low-voltage network."
Technical Characteristics
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
Yes
Number of conductors (without earthing)
2
Nominal voltage AC
230 V
Max. continuous voltage AC
320 V
Integrated backup fuse
No
Mounting method
Other
Construction size
Other
With remote signalling contact
No
Signalling at the device
Optical
Category type 2
Yes
Degree of protection (IP)
IP20
Width
35.6 mm
Height
44 mm
Depth
54.5 mm
degree of impact strength (IK)
IK05
Operating / setting temperature (Min-Max)
-10-40 °C
Storage temperature (Min-Max)
-20-70 °C
Nominal voltage (Min-Max)
220-230 V
Frequency (Min-Max)
50-60 Hz
Electric supplying direction
By the top
Terminal marking indication
Yes
Colour
Grey
RAL-number
7035
Halogen free
No
Connection type
Push-in clamp
Terminals capacity (Min-Max)
6-6 mm²
Connection type
Cable
Label space/information surface
Yes
Documentation
2 documents
Technical Guide
EXB20026 | PDF (8 MB) | EN
Technical Sheet
IDP000018EN_05 | PDF (294 KB) | EN
1 documents
Agreement
LGGCIOWYSY | FILE (251 KB) | EN · IT
