Obsolete Lighting Control BTicino

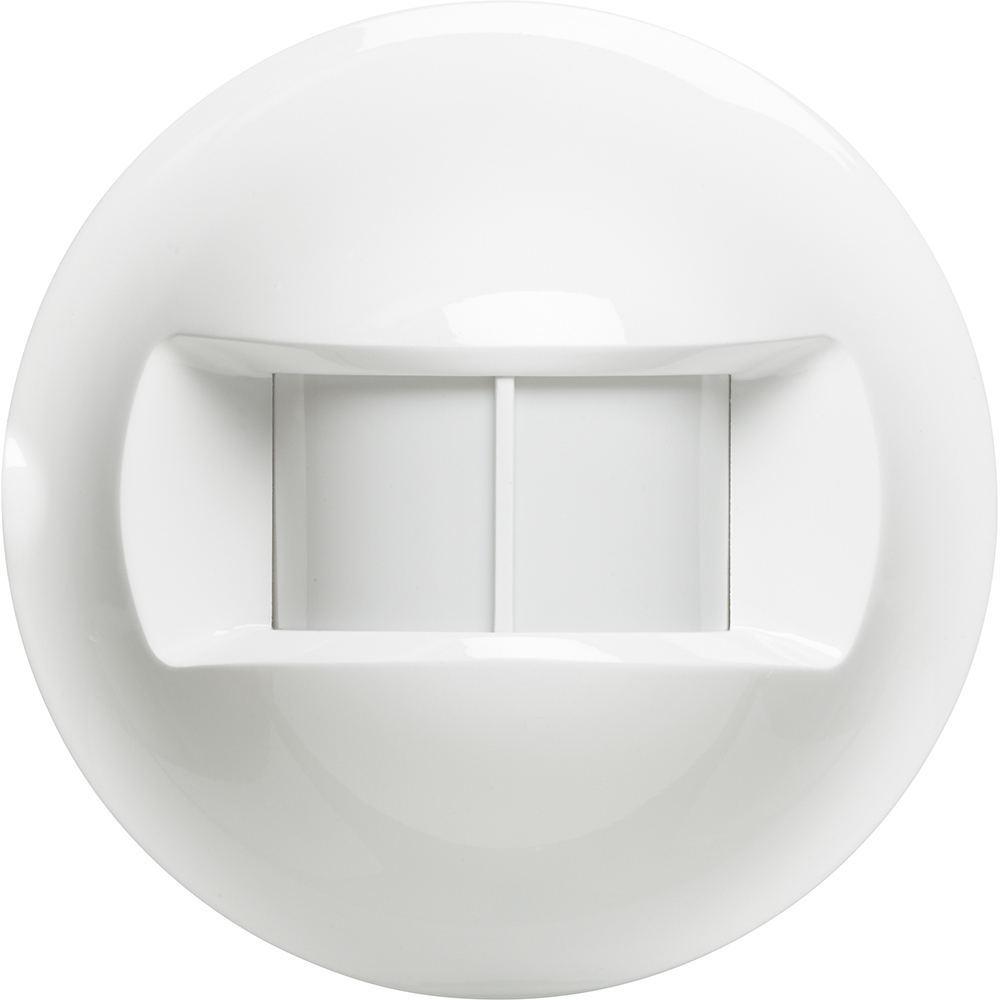

Recessed ceiling or switch sensor PIR (for entire passage areas - Corridors and atriums)

BT-BMSA2205 | 8005543497081
Switch Sensor with passive infrared, for the movement detection and the level of illumination, “Zero Crossing” technology, ON/OFF management, flush mount installation in the ceiling with springs or box, surface installation with box item 048875, protection degree IP20, quick terminal connection, horizontal Covering area 30m, 15m (front) and 15m (rear) for an height of 2.5 m, power supply 100-240 Vac, 50/60 Hz, maximum load 8.5 A at 230 Vac, setting by remote control item (BMSO4003 and BMSO4001) of the luminance level from 5 lux to 1275 lux and delay time from 5 s to 60 min
Technical Characteristics
Model Presence detector
Movement sensor/presence detector technology Passive infrared
Constant light control Yes
Forced switch off Yes
Animal zone No
Creep-under protection Yes
Background monitoring No
Networkable No
Optimum mounting height 2.5 m
Max. reach sideways 8 m
Max. reach frontally 8 m
Diameter reach on floor 8 m
Suitable for wireless transmission Yes
Remote operation Yes
Supplied remote control No
Response value sensitivity adjustable Yes
Response value luminosity adjustable Yes
Teach-function for response value luminosity Yes
Dim function with dimmer basic element Yes
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Other
Surface finishing Glossy
Colour White
RAL-number (similar) 9006
Transparent No
Degree of protection (IP) IP20
Frequency (Min-Max) 50-60 Hz
Nominal voltage (Min-Max) 230-230 V
Min. switch-on time 5 s
Max. duty cycle 30 min
Detection angle horizontal (Min-Max) 360-360 °
Response value luminosity (Min-Max) 1-1000 lx
Number of switching zones 2
With alarm function No
With acoustic sensor No
Ambient temperature (Min-Max) -5-45 °C
With connection cable No
Connection cable length 0 mm
With DALI interface No
