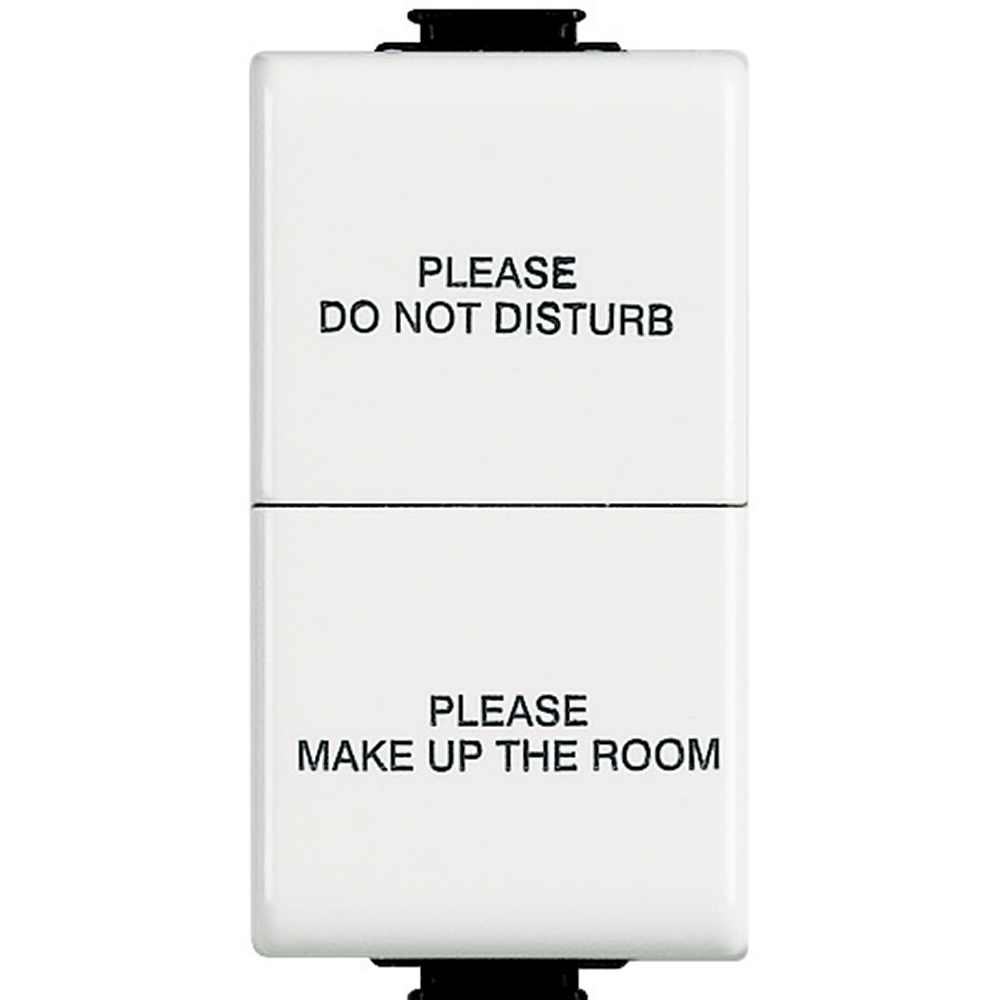

Changeover switch 1P 16A "not disturb and tidy the room"
BT-AM5052H
|
8012199964386
Technical Characteristics
Wiring system
Series switch
Method of operation
Other
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
No
Number of rockers
2
Mounting method
Flush-mounted
Type of fastening
Other
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Colour of switch operator
White
Label space/information surface
No
Lighting
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP20
Nominal voltage
250 V
Rated current
16 A
Switching current for fluorescent lamps
16 AX
Monitoring contact
No
Connection type
Other
Heating switch
No
Washing machine switch
No
Device width
23.4 mm
Device height
43.8 mm
Device depth
37 mm
Built-in depth
37 mm
Min. depth of built-in installation box
30 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Cable section (Min-Max)
2.5-2.5 mm²
Documentation
1 documents
B2B Documents
CAT-MTX | PDF (14.8 MB) | EN
