Matix BTicino

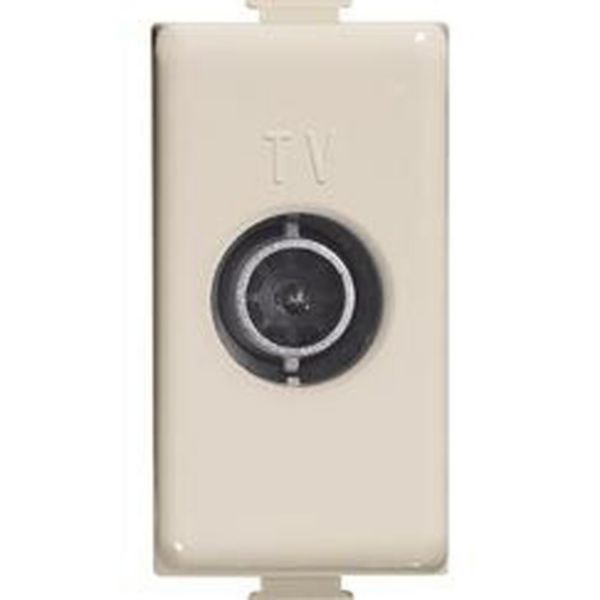

Terminal coaxial socket -10dB attenuation,

BT-A5202P10 | 8005543575208
Terminal coaxial socket -10dB attenuation, for centralised TV systems, also remote powered, and centralised satellite systems with current and signal transfer for channels selection; shielded connection clamps with captive screws - Diameter 9,5 mm - male connector - incorporated impedance final adapter 75 Ω - 1 module - ivory colour
Technical Characteristics
Model End socket
Type of socket outlet TV
DAB+ No
Mounting method Module frame
Number of modules (module system) 1
Assembly arrangement Basic element with central cover plate
Tap loss at 860 MHz 10 dB
Number of outlets 1
Suitable for cable modem No
Suitable for remote power supply No
Type of fastening Snap mounting (engagement)
Colour Beige
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Duroplast
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP20
Device width 23.4 mm
Device height 47 mm
Device depth 31.7 mm
Min. depth of built-in installation box 31.7 mm
Operating / setting temperature (Min-Max) -5-50 °C
Storage temperature (Min-Max) -10-70 °C
Documentation
2 documents
Technical Sheet
IDP001516_01-EN | PDF (1 MB) | EN
Instruction Use
LE08602AA | PDF (451 KB)
