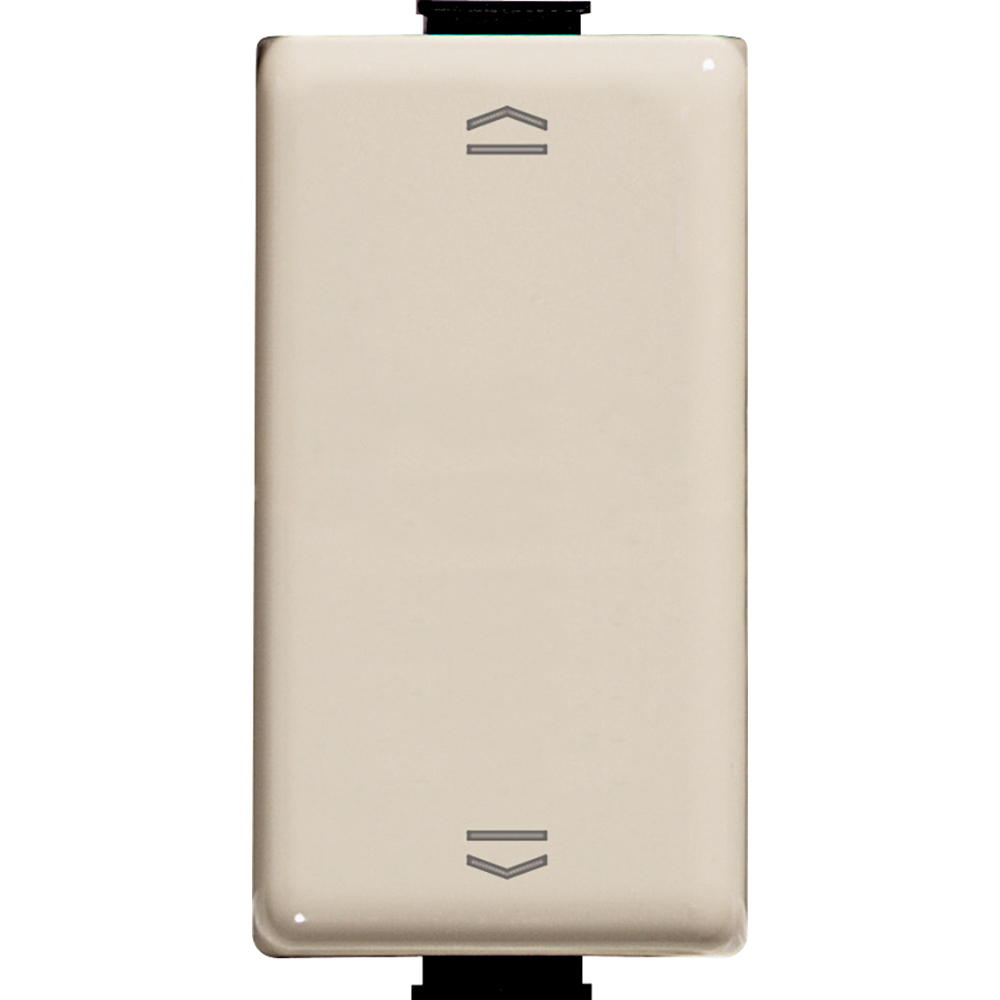

Double pushbutton 1P (NO) + 1P (NO) 10 A 250 Vac with interlock
BT-A5037N
|
8005543698587
Description
Dual interlocked pushbotton 1P+1P - 250 Va.c. for shutter. 1 module, color ivory
Product characteristics
- Dual interlocked pushbotton 1P - 250 Va.c.
- 1 module
- color ivory
- screw terminals
- 10 A, 250 Va.c. 1 P (NO)1 module
Recommendations / Restrictions
- For internal use only.
Products benefits
Installation
- Easy to insall and remove
Usage
- Pressing the control activates the shutter connected to it. The drive ends when the pressure on the control is terminated.
Technical Characteristics
For venetian blinds
Yes
For roller blinds
Yes
For awnings
No
Assembly arrangement
Basic element
Model
1-pole push button
Number of poles
1
Method of operation
Rocker
With electrical latch
No
With mechanical latch
No
Mechanical controllable
No
Electronic controllable
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Type of fastening
Other
Connection type
Screwed terminal
Colour
Beige
RAL-number (similar)
9001
Transparent
No
Label space/information surface
No
Suitable for degree of protection (IP)
IP20
Rated current
10 A
Nominal voltage
250 V
Number of buttons
0
Number of modules (module system)
1
Device width
23 mm
Device height
44 mm
Device depth
36.5 mm
Built-in width
23 mm
Built-in height
44 mm
Built-in depth
25.5 mm
Min. depth of built-in installation box
35.5 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Type of lighting
Not included
Terminal marking indication
No
Antimicrobial treatment
No
Number of terminals
3
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Contains Batteries and/or Accumulator
No
