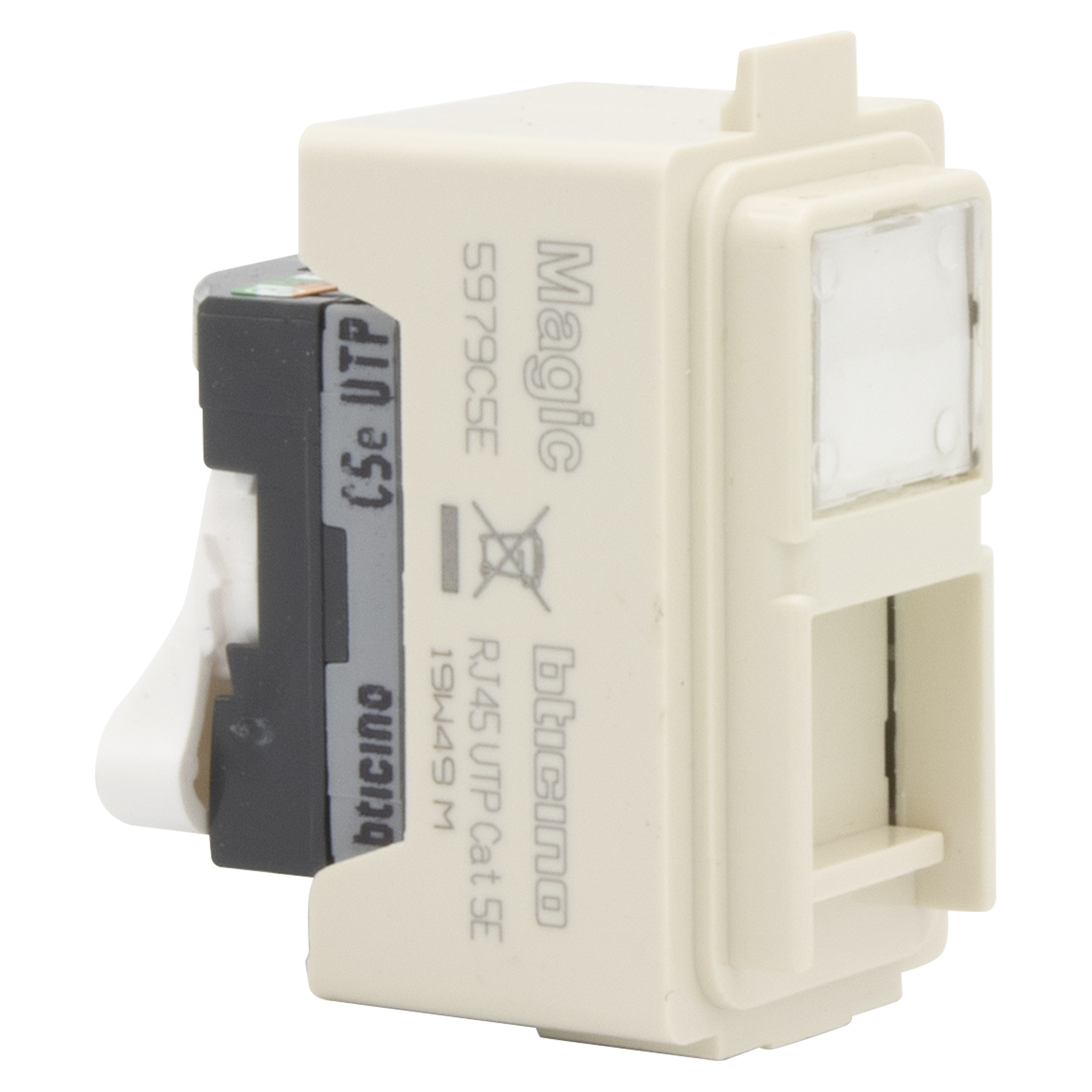

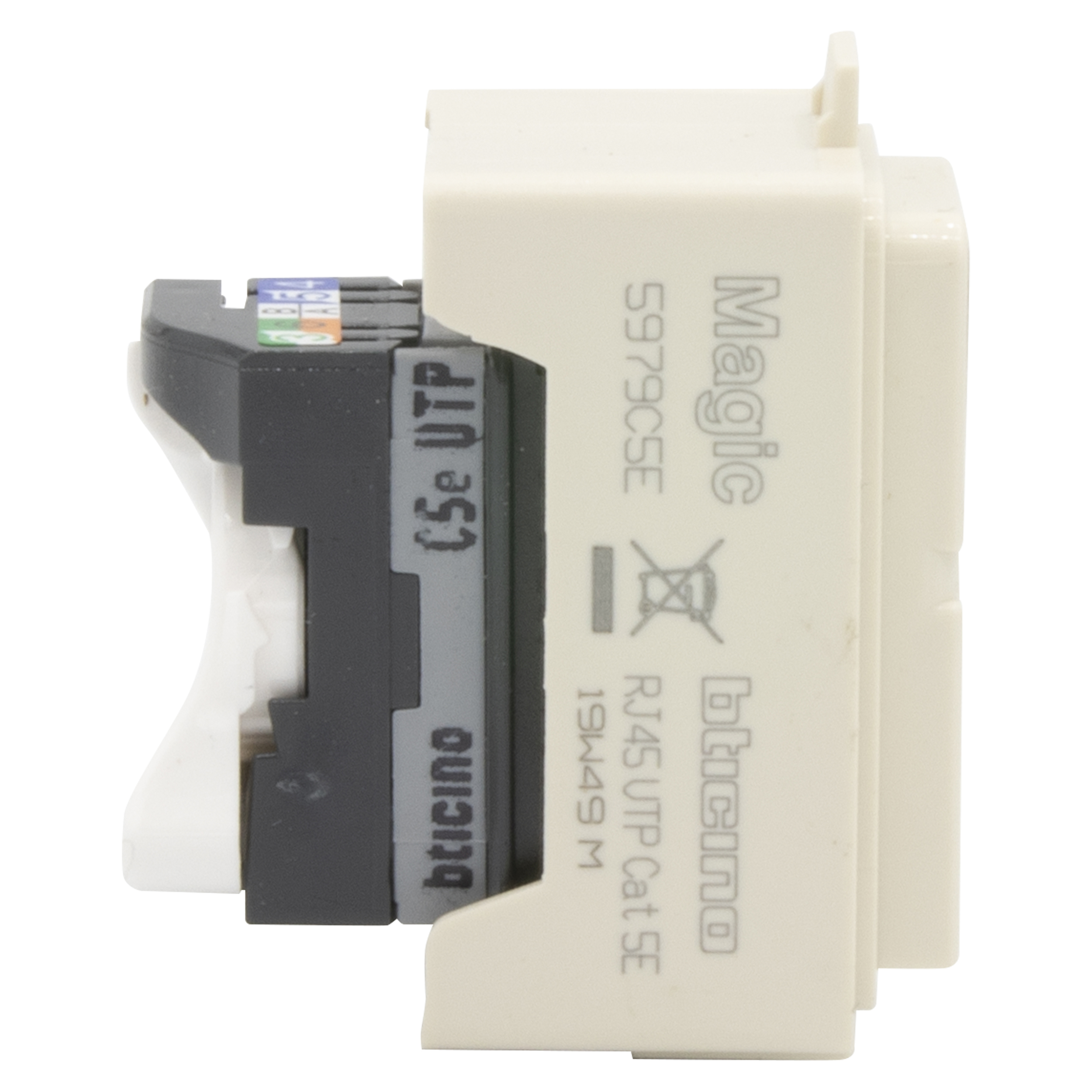

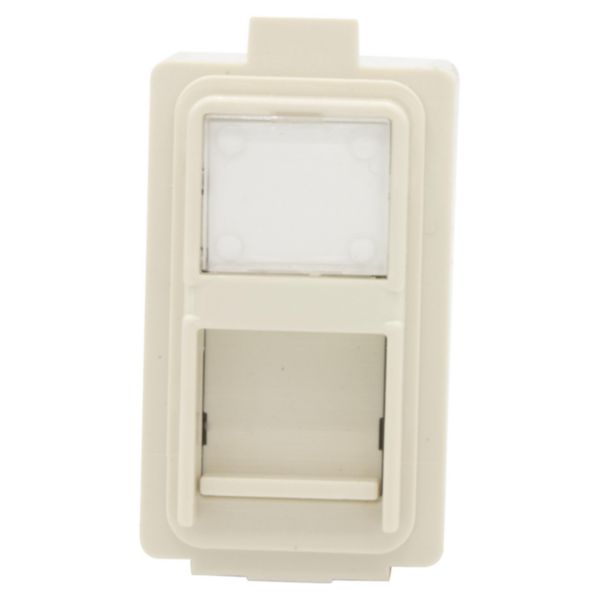

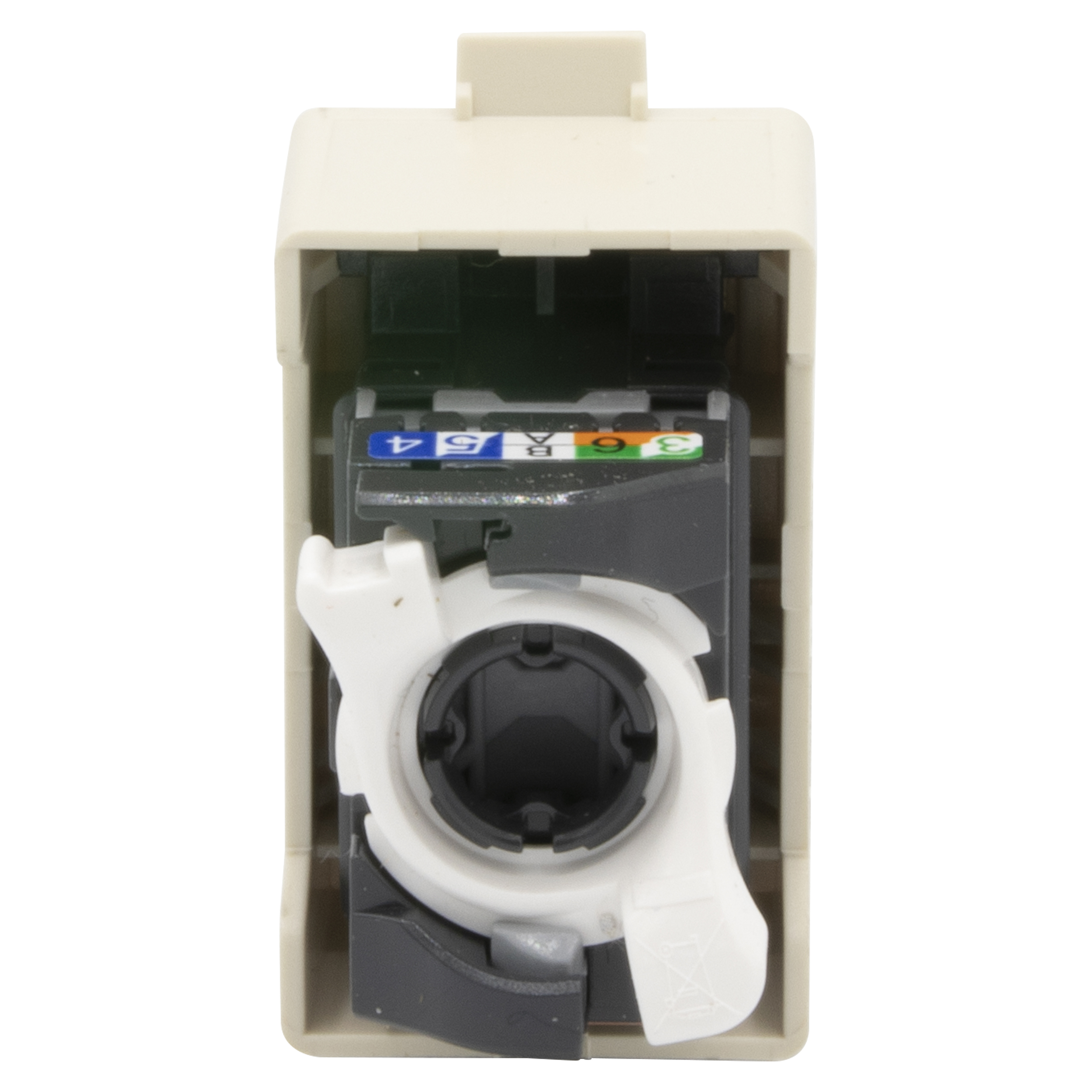

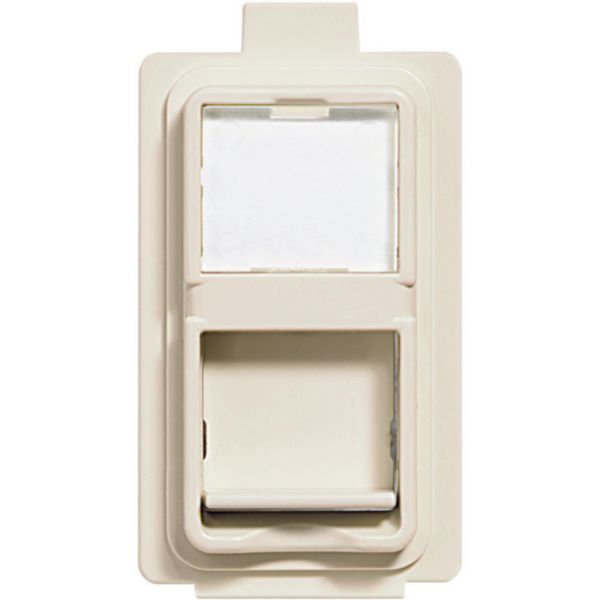

Connector RJ45 toolless UTP cat. 5E
BT-5979C5E
|
8012199975986
Technical Characteristics
Surface mounting
No
Flush-mounted installation
Yes
Duct installation
No
Floor box/subfloor mounted
No
Type of fastening
Engage (snap)
Assembly arrangement
Basic element with central cover plate
Type of connector
RJ45 8(8)
With buses/couplings
Yes
Suitable for number of connectors
1
Category
5E
Colour
Beige
RAL-number
0
Connection type
Other
Shielded buses
No
Separate earthing connection
No
With label space
Yes
Separate strain relief
No
Mounting method shielding connection
None
Outlet direction
Straight
With dust cover
Yes
Colour coding
Yes
Device width
22.8 mm
Device height
42.9 mm
Device depth
35.3 mm
Number of modules (module system)
1
Built-in depth
30.8 mm
Terminal marking indication
Yes
Halogen free
Yes
Antimicrobial treatment
No
Mounting method
Flush-mounted
Tube diameter for wall mounted product (Min-Max)
0-0 mm
Maximum Input cable diameter
9 mm
Entry membrane gland type
Not applicable
Vertical fixing center distance (Min-Max)
0-0 mm
Horizontal fixing center distance (Min-Max)
0-0 mm
Cable support
Not applicable
Documentation
1 documents
Instruction Use
G5289C | PDF (614 KB)
