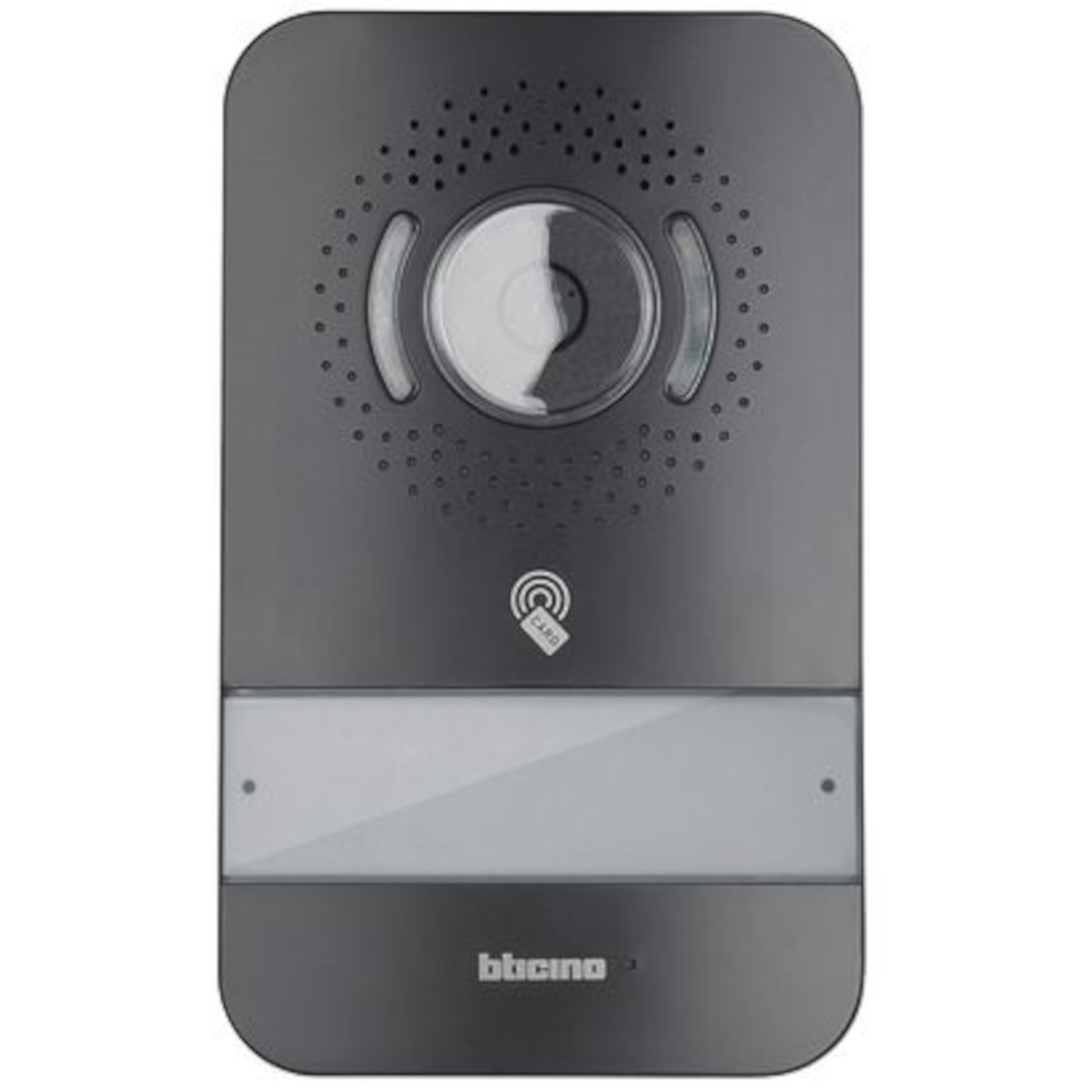

Small video entrance panel PoE with badge reader and key for indoor unit and guard station calls
BT-374007
|
8005543814277
Description
Small video entrance panel with badge reader and single or double calls with buttons and label to be customized . Bracket for surface muonting included.
Product characteristics
- The small video entrance panel can be PoE (power over Ethernet) powered with Bticino switch 375002 (24V) or with standard PoE+ switches (48V)
- Wall mounted installation with braket included. Rainshield and angular mounting accessory can be purchased separately
Technical Characteristics
Number of call buttons
2
Material call buttons
Plastic
Material front
Plastic
Front plate height
155 mm
Front plate width
94 mm
Built-in height
26 mm
Built-in depth
9.3 mm
Mounting method
Surface mounted
Installation technique
Network technology
Modular construction
No
Colour
Black
Degree of protection (IP)
IP54
degree of impact strength (IK)
IK07
Operating / setting temperature (Min-Max)
-40-70 °C
Voltage type
DC
Supply current (Min-Max)
0.18-0.32 A
Halogen free
Yes
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
0.25-0.8 mm²
Label space/information surface
Yes
Fitted with rainproof plate protection
No
With complemantary luminous signal
Yes
Vertical fixing center distance (Min-Max)
60-83 mm
Contains Batteries and/or Accumulator
No
Hands free
Yes
Loudness setting
No
Addressable
Yes
Door entry system with mobile application
Yes
Remote opening of gate / Electric door opener
Yes
Camera type
Fixed
Video recorder angle
72 °
Connected object
No
Operating method
Network
Application store for download
App Store, Google Play Store
Programming way
Web software
With voice command
No
Programmable
Yes
Interoperable connection Protocol
No
Connectable by Internet box
Yes
Application name
Home + Control, Home + Security
Product use function
Door entry systems
Documentation
2 documents
Instruction Use
LE15797AA | PDF (5.7 MB) | IT · EN · ES · FR
Technical Sheet
ST-00002483-EN | PDF (823 KB) | EN
