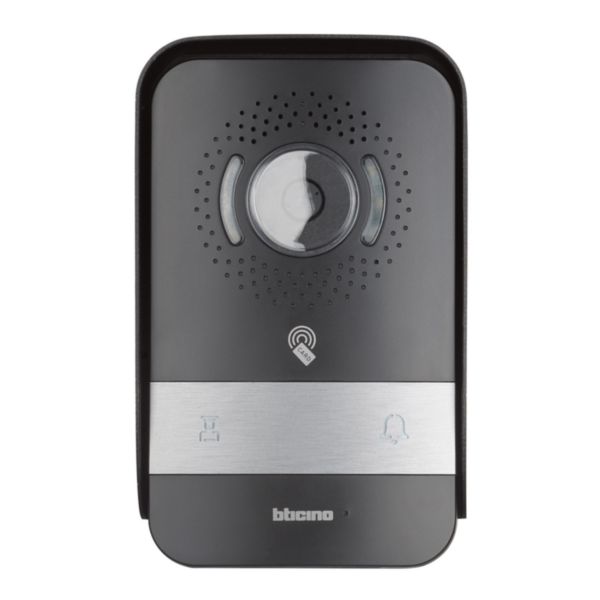

Name: Small video entrance panel with badge reader and key for indoor unit and guard station calls
Brand: BTicino
SKU: BT-374006
Availability: InStock

Description

Small video entrance panel with badge reader and key for indoor unit and guard station calls.Wall mounted installation thanks to the support with rainshield included.

Product characteristics

The small video entrance panel can be PoE (power over Ethernet) powered, or directly powered using power supply BT-375005.
Wall mounted installation thanks to the support with rainshield included.

Technical Characteristics

Number of call buttons 2

Material call buttons Plastic

Material front Aluminium

Front plate height 160.5 mm

Front plate width 100 mm

Built-in depth 36.6 mm

Mounting method Surface mounted

Installation technique Bus system

Colour Black

Degree of protection (IP) IP54

degree of impact strength (IK) IK07

Operating / setting temperature (Min-Max) -10-50 °C

Storage temperature (Min-Max) -25-70 °C

Voltage type AC/DC

Sound level 80 dB

Standby consumption 40 mA

Halogen free Yes

Cable nature for connection Flexible

Cable section (Min-Max) 1-2.5 mm²

Label space/information surface Yes

Fitted with rainproof plate protection Yes

With complemantary luminous signal No

Control mode Wired

Hands free Yes

Loudness setting Yes

Addressable No

Remote opening of gate / Electric door opener No

Camera type Adjustable

Video recorder angle 95 °

Max distance between internal and external unit 150 m

Communication rank type 2

Connected object Yes

Operating method Network

Application store for download App Store, Google Play Store

Programming way Web software

With voice command No

Programmable No

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Application name Home + Security

Product use function Door entry systems

Small video entrance panel with badge reader and key for indoor unit and guard station calls
