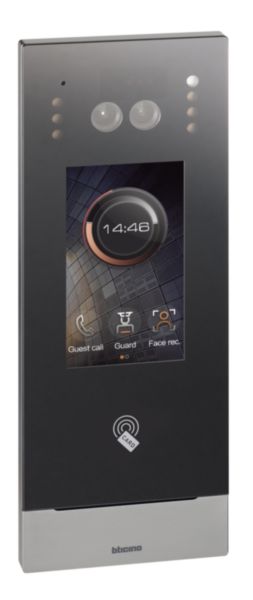

Name: Small video entrance panel with 4.3” vertical touch display
Brand: BTicino
SKU: BT-374005
Availability: InStock

Small video entrance panel with 4.3” vertical touch display

BT-374005 | 8005543693414

Small video entrance panel with 4.3” vertical touch display, face recognition and badge reader for access control functions. From the touch display, it is possible to make calls to the apartments and the guard station and enter the access code to release the lock. Configuration of different calling modes:- Apartment code (Area - Building - Riser - Floor - Apartment)- Numeric or alphanumeric codes for residents- Address book with contact list.Settings menu for maintenance and for managing settings (e.g. backLight brightness, ring volume, speaker volume, touch volume, screensaver time). Possibility to upload customized screensavers using the configuration software. This device can be PoE (power over Ethernet) powered, or directly powered using power supply BT-375005. Flush mounted installation using the dedicated box BT-375009.

Compare

Description

Small video entrance panel with 4.3" touch display with double camera for face recognition and badge reader. From touch display: make calls to apartments and guard station and enter the access code to release lock.

Product characteristics

Modern and elegant design characterized by silver finishing and 4.3" touch display
Resident can be called with apartment code (Area-Building-Riser-Floor-Apartment)numerical or alphanumerica call or addressbook
Enter the settings menu with a specific code for maintenance and for manage settings (e.g. backlight brightness, ring volume, speaker volume, touch volume, screen saver time).
The entrance panel can be PoE (power over Ethernet) or directly powered with power supply BT-375005.

Products benefits

Installation

Flush mounting using dedicated box BT-375009

Usage

Different calling options, modern design and intuitive graphic user interface to make calls and enter access code.

Advantages

Configuration software to create the topology of the installation and associate the devices after the configuration.
Lift control integration to manage the lift accordingly to the called indoor unit.

Technical Characteristics

Number of call buttons 0

Material front Other

Front plate height 245 mm

Front plate width 92 mm

Built-in height 232 mm

Built-in width 82 mm

Built-in depth 62 mm

Mounting method Flush-mounted

Installation technique Network technology

Modular construction No

Colour Silver

Degree of protection (IP) IP54

degree of impact strength (IK) IK07

Operating / setting temperature (Min-Max) -40-70 °C

Storage temperature (Min-Max) -40-70 °C

Voltage type DC

Nominal voltage (Min-Max) 24-24 V

Supply current (Min-Max) 0.65-0.65 A

Halogen free Yes

Cable nature for connection Flexible or rigid

Cable section (Min-Max) 0.8-0.8 mm²

Label space/information surface No

Fitted with rainproof plate protection No

With complemantary luminous signal No

Contains Batteries and/or Accumulator No

Hands free Yes

Loudness setting Yes

Addressable Yes

Door entry system with mobile application No

Remote opening of gate / Electric door opener Yes

Camera type Night vision

Video recorder angle 80 °

Communication rank type Other

Connected object Yes

Operating method Network

Application store for download App Store, Google Play Store

Programming way Web software

With voice command No

Programmable Yes

Connectable by Internet box No

Application name Home + Security

Product use function Door entry systems
