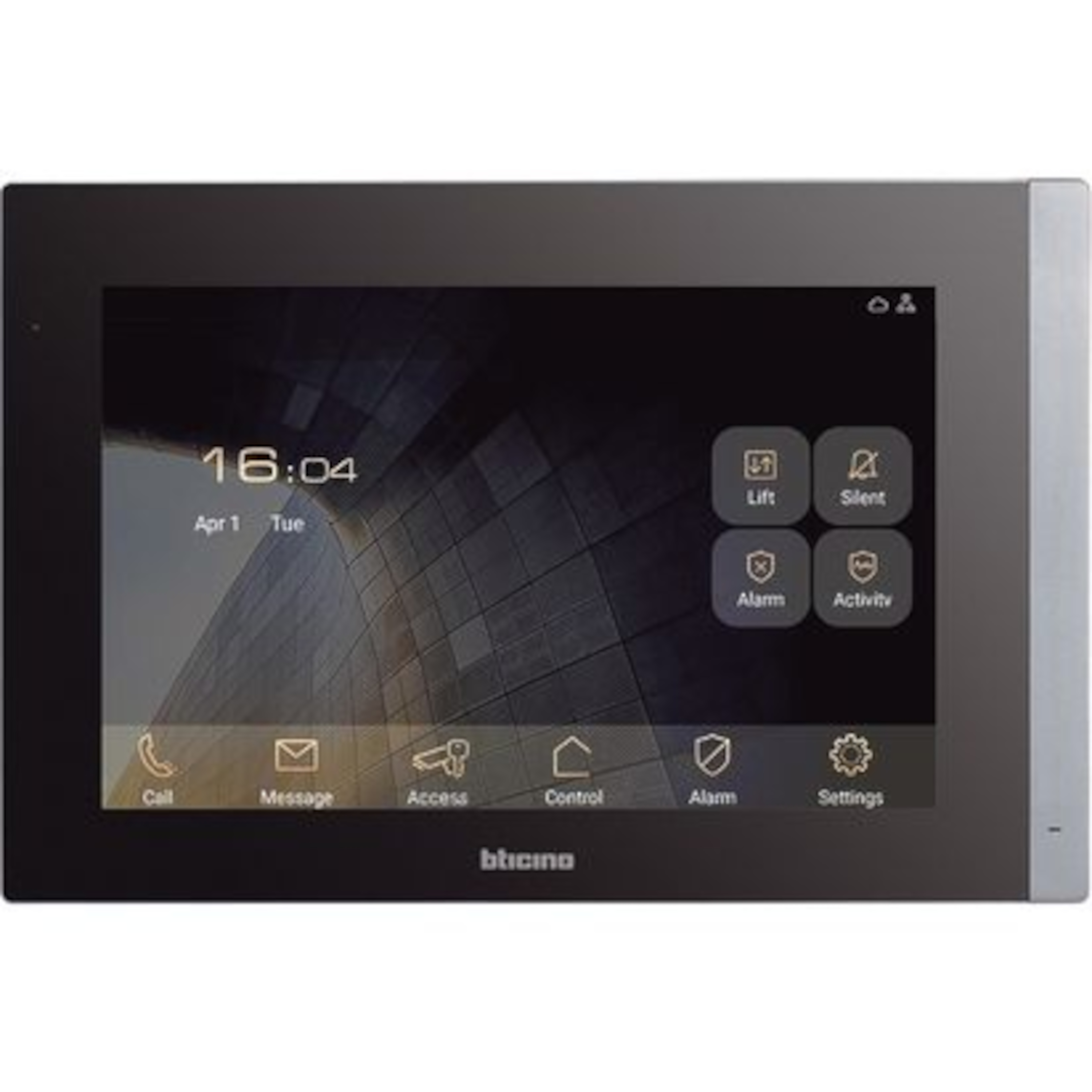

10” Touch display premium indoor unit Wi-Fi with Smart Home integration and SOS pushbutton.
BT-373103
|
8005543814291
Description
10" touch display indoor unit with Smart Home integration. Management of door entry functions, alarms, IP camera and lift control from the display. Home + Security app to manage door entry system functions. Silver finishing
Product characteristics
- From the touch display is possible to answer the call, open the lock, call other apartments and guard station and control the smart home.The smart home is available through Home + Control App on the display giving access to all the functions and scenarios configured.
- In addition: see call and alarm logs, leave audio messages, receive messages form the guard station, adjust settings (e.g. brightness, screensaver, backgrounds and ring tone) and see date/time information.
- The alarm management can be easily integrated thanks to 8 dedicated contacts already on-board.
- The integration with CCTV IP camera allows to see the safety camera of the apartment and of the common area from the indoor unit. It is possible to control lift thanks to specific integration.
- Home + Security app to use functions such as: receiving calls, door lock release, display of the event timeline and activation of the entrance panel.
Products benefits
Installation
- Wall mounting with the supplied bracket. Can be powered with both PoE 24V (with 375002 switch) or standard netwrok PoE+ 48V.
Usage
- Multichannel audio/video communication with entrance panels, guard stations and other apartments. Intuitive graphic user interface to manage door entry system functions and other integration (alarms, lift, IP camera). Integration with smart home to control all your house functionality from one single device.
Advantages
- Configuration software to create the topology of the installation and associate the devices in a easy and quick way thanks to the scan tool.
- Modern and elegant silver finishing with wide 10" touch display
- Smart home ready to be integrated, the end user will just need to acces the App on the indoor unit with the same credential of the smartphone app.
Technical Characteristics
With video
Yes
Installation technique
Network technology
Mounting method
Surface mounted
Material
Other
Property picture system
Colour
With memory function
Yes
Overhear protected
No
Operation door lock
Yes
Control extra function(s)
Yes
Hands free
Yes
Function lamps
Yes
Can be connected to smartphone
Yes
Zoom, pan/tilt function
No
Screen diagonal (inch)
10 inch
Hearing aid compatible
No
With automatic door opener
Yes
Colour
Black
Mutable call tone
Yes
Internal communication
Yes
Loudness setting
Yes
With touch screen
Yes
Width
280 mm
Height
186 mm
Depth
28 mm
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Built-in depth
16 mm
Degree of protection (IP)
IP30
Operating / setting temperature (Min-Max)
-10-55 °C
Voltage type
DC
Supply current (Min-Max)
0.28-0.59 A
Standby consumption
280 mA
Halogen free
Yes
Antimicrobial treatment
No
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Fitted with USB plug
Yes
Fitted with rainproof plate protection
No
With complemantary luminous signal
Yes
Vertical fixing center distance (Min-Max)
60-60 mm
Horizontal fixing center distance (Min-Max)
60-120.5 mm
Contains Batteries and/or Accumulator
No
Screen resolution
Other
Application store for download
App Store, Google Play Store
Programming way
Web software
Connectable by Internet box
Yes
Application name
Home + Control, Home + Security
