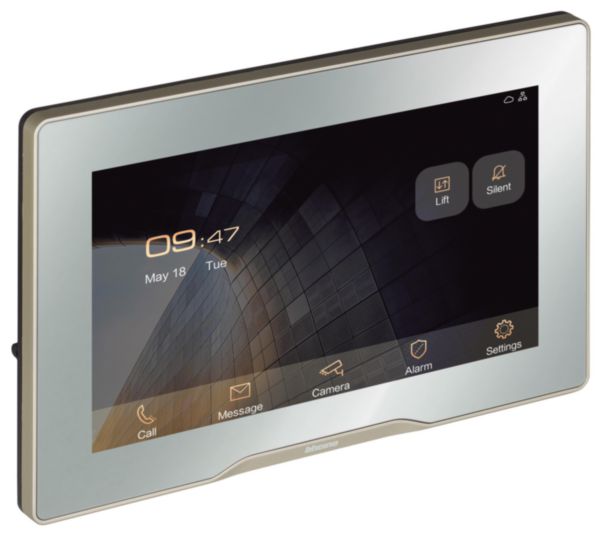

Name: Standard 7" Touch screen video indoor unit - mirror finishing
Brand: BTicino
SKU: BT-373007
Availability: InStock

Description

7” touch display indoor unit, mirror finishing to manage door entry functions, alarms, IP camera and lift control from the display.

Product characteristics

From the touch display, it is possible to answer the call, open the lock, call the other apartments and the guard station, view call and alarm logs, leave audio messages, receive messages form the guard station, adjust the settings (e.g. brightness and ring tone), and view date/time information.
Alarm management can be easily integrated thanks to 8 pre-arranged dedicated contacts.
The integration with the CCTV IP cameras allows to view the IP cameras of the apartment and the common area from the indoor unit.
The specific integration also allows control of the lift.
The indoor unit can be PoE (power over Ethernet) powered, or directly powered using power supplyBT-375005.

Products benefits

Installation

Wall mounted using the supplied bracket.

Usage

Multichannel audio/video communication with entrance panels, guard stations and other apartments. Intuitive graphic user interface to manage door entry system functions and other integration (alarms, lift, IP camera).

Advantages

Configuration software to create the topology of the installation and associate the devices in a easy and quick way thanks to the scan tool.
Mirror finishing and 7'' touch display
8 contact for alarm integration already available on board. Lift control intergation. IP camera integration to ensure high level of safety

Technical Characteristics

With video Yes

Installation technique Network technology

Mounting method Flush-mounted

Material Other

Property picture system Colour

With memory function Yes

Overhear protected No

Operation door lock Yes

Control extra function(s) Yes

Hands free Yes

Function lamps Yes

Can be connected to smartphone No

Zoom, pan/tilt function No

Screen diagonal 177.8 mm

Screen diagonal (inch) 7 inch

Hearing aid compatible No

Colour Colourless

Type of interface LAN

Mutable call tone Yes

Internal communication Yes

Specific call tone Yes

Additional device connectable No

Loudness setting Yes

With touch screen Yes

Width 189 mm

Height 122 mm

Depth 27 mm

Compatible with Apple HomeKit No

Compatible with Google Assistant No

Compatible with Amazon Alexa No

IFTTT support available No

Built-in depth 8 mm

degree of impact strength (IK) Not applicable

Degree of protection (IP) IP30

Operating / setting temperature (Min-Max) -10-40 °C

Storage temperature (Min-Max) -25-70 °C

Voltage type DC

Nominal voltage (Min-Max) 24-24 V

Supply current (Min-Max) 0.010-0.16 A

Frequency (Min-Max) 0-0 Hz

Halogen free Yes

Antimicrobial treatment No

Cable nature for connection Flexible or rigid

Cable section (Min-Max) 0.5-0.8 mm²

Label space/information surface No

Fitted with USB plug Yes

Fitted with rainproof plate protection No

With complemantary luminous signal No

Vertical fixing center distance (Min-Max) 51.5-83.5 mm

Horizontal fixing center distance (Min-Max) 60-120 mm

Control mode Wired

Contains Batteries and/or Accumulator No

Additional unit Yes

Addressable Yes

Door entry system with mobile application No

Number of ringtones 6

Remote opening of gate / Electric door opener Yes

Screen resolution Other

Screen brightness setting No

Screen contrast setting No

Memory video function Yes

Camera type Not applicable

Connected object Yes

Operating method Network

Application store for download App Store, Google Play Store

Programming way Web software

With voice command No

Programmable No

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Application name Home + Security

Product use function Door entry systems

Standard 7" Touch screen video indoor unit - mirror finishing
