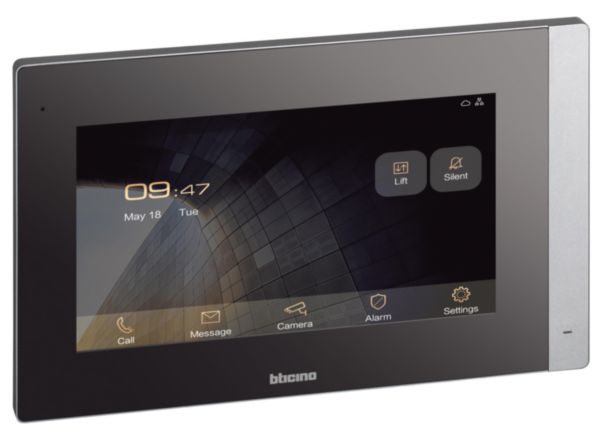

Name: 7" touch display video indoor unit
Brand: BTicino
SKU: BT-373004
Availability: InStock

Description

7" touch display indoor unit with SOS pushbutton. Management of door entry functions, alarms, IP camera and lift control from the display. Silver finishing

Product characteristics

From the touch display is possible to answer the call, open the lock, call other apartments and guard station, see call and alarm logs, leave audio messages, receive messages form the guard station, adjust settings (e.g. brightness, screensaver, backgrounds and ring tone) and see date/time information.
The alarm management can be easily integrated thanks to 8 dedicated contacts already on-board.
The integration with CCTV IP camera allows to see the safety camera of the apartment and of the common area from the indoor unit.It is possible to control lift thanks to specific integration.
Home + Security app to use functions such as: receiving calls, door lock release, display of the event timeline and activation of the entrance panel.
The indoor unit can be PoE (power over Ethernet) or directly powered with power supply BT-375005.

Products benefits

Installation

Wall mounting with the supplied bracket.

Usage

Multichannel audio/video communication with entrance panels, guard stations and other apartments. Intuitive graphic user interface to manage door entry system functions and other integration (alarms, lift, IP camera).

Advantages

Configuration software to create the topology of the installation and associate the devices in a easy and quick way thanks to the scan tool.
Modern and elegant silver finishing with 7" touch display
8 contact for alarm integration already available on board.Lift control intergation.IP camera integration to ensure high level of safety

Technical Characteristics

With video Yes

Installation technique Network technology

Mounting method Surface mounted

Material Other

Property picture system Colour

With memory function Yes

Overhear protected No

Operation door lock Yes

Control extra function(s) Yes

Hands free Yes

Function lamps Yes

Can be connected to smartphone No

Zoom, pan/tilt function No

Screen diagonal 177.8 mm

Screen diagonal (inch) 7 inch

Hearing aid compatible No

Colour Silver

Type of interface LAN

Mutable call tone Yes

Internal communication Yes

Specific call tone Yes

Additional device connectable No

Loudness setting Yes

With touch screen Yes

Width 211 mm

Height 134 mm

Depth 28 mm

Compatible with Apple HomeKit No

Compatible with Google Assistant No

Compatible with Amazon Alexa No

IFTTT support available No

Built-in depth 12 mm

degree of impact strength (IK) Not applicable

Degree of protection (IP) IP30

Operating / setting temperature (Min-Max) -10-55 °C

Storage temperature (Min-Max) -25-70 °C

Voltage type DC

Nominal voltage (Min-Max) 24-24 V

Supply current (Min-Max) 0.010-0.55 A

Frequency (Min-Max) 0-0 Hz

Halogen free Yes

Antimicrobial treatment No

Cable nature for connection Flexible or rigid

Label space/information surface No

Fitted with USB plug Yes

Fitted with rainproof plate protection No

With complemantary luminous signal No

Vertical fixing center distance (Min-Max) 50-60 mm

Horizontal fixing center distance (Min-Max) 60-120.5 mm

Control mode Wired

Contains Batteries and/or Accumulator No

Additional unit Yes

Addressable Yes

Door entry system with mobile application No

Number of ringtones 6

Remote opening of gate / Electric door opener Yes

Screen resolution Other

Screen brightness setting No

Screen contrast setting No

Memory video function Yes

Camera type Not applicable

Connected object Yes

Operating method Network

Application store for download App Store, Google Play Store

Programming way Web software

With voice command No

Programmable No

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Application name Home + Security

Product use function Door entry systems

7" touch display video indoor unit
