New Classe 300X Bticino

Kit Linea 3000 Black with RFID badge / New Classe 300X Dark finish

BT-363943 | 8005543781449

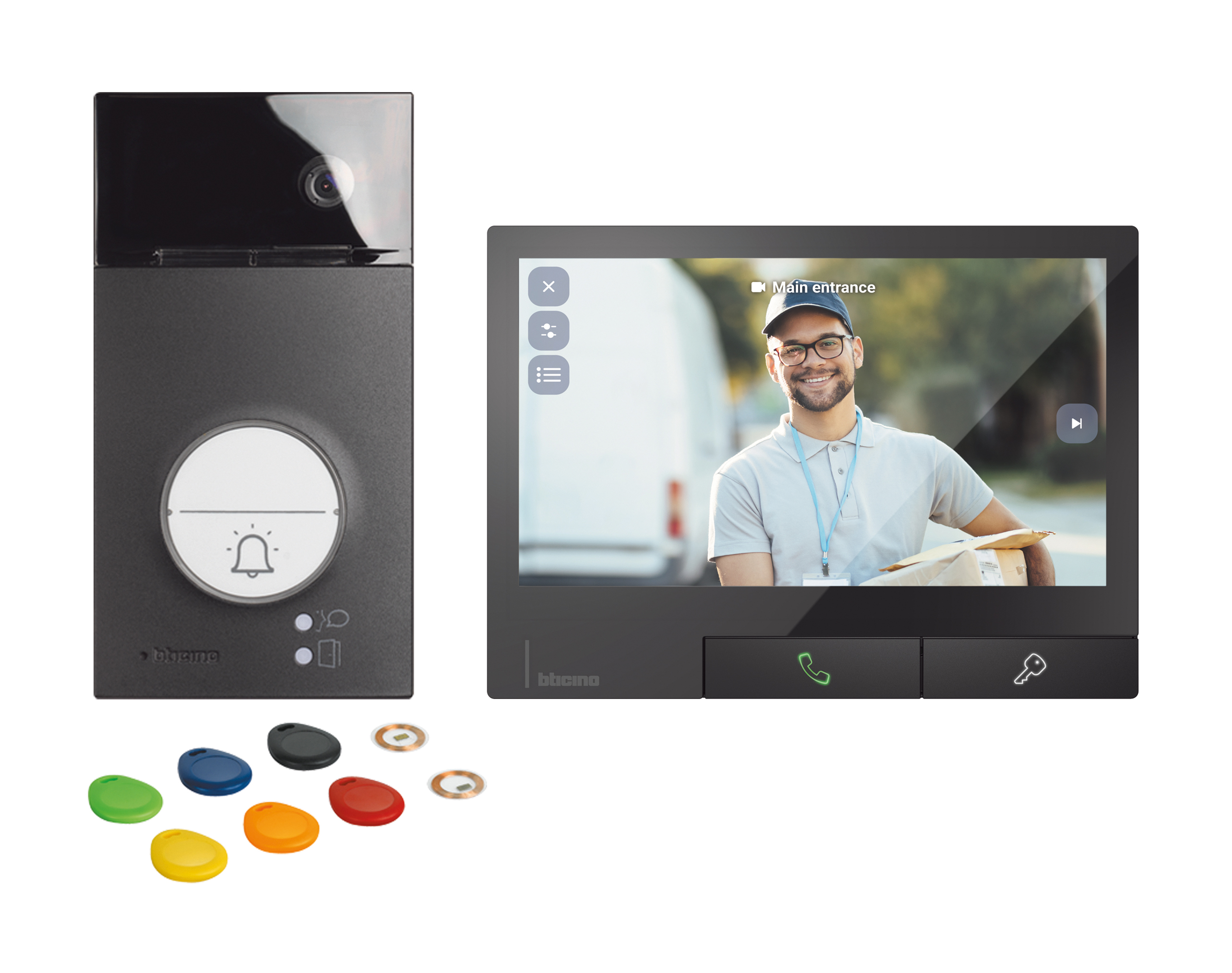

One-family kit with Classe 300X hands-free connected video internal unit (Dark finish) and Linea 3000 pushbutton panel (black finish). 2 wires/Wi-Fi hands-free connected video internal unit, Dark finish, with 7” horizontal touch screen LCD display, resolution 1024 x 600 pixel. Featuring a digital echo canceller for better audio quality. Thanks to the Wi-Fi 6 connectivity, the video internal unit can connect to 5 GHz or 2.4 GHz band routers to take advantage of the functions available on the Home + Security App (available for Android and iOS): call reception, door lock release, event timeline display, entrance panel activation, camera scrolling and advanced «Professional Studio» and «Do Not Disturb» functions. Through the Home + Security App, it is also possible to manage the products of the Netatmo security range (outdoor and indoor cameras,indoor siren and smoke detector). This allows you to quickly and easily create a Smart security system. Linea 3000 pushbutton panel with black finish zamak front cover and proximity reader with a kit of coloured RFID key cards and two clear discs for door lock release. Can be wall or flush installed with specific accessories: (350020) flush mounted box and (343063) flush mounted accessory - to be purchased separately. Can be fitted with rainshield (343053) - to be purchased separately. The pushbutton panel has a protection index IP54- protection index against mechanical impact IK10.
Description

CLASSE 300X New is the next-generation of 2-wire video intercom that combines advanced technology, attractive aesthetics, and an accessible design. Together with LINEA 3000, offer the perfect solution for villa.

Product characteristics
  • 7” LCD Touchscreen Display, horizontal orientation, 1024x600 resolution
  • Wi-Fi 6 Connectivity. Compatible with 2.4GHz and 5GHz networks for stable and fast connection.
  • Premium material, small frame and two physical buttons for basic functions; advanced features managed via touchscreen menus.
  • Remote management of calls, locks, notifications, and Netatmo devices
  • “Professional Studio” and “Do Not Disturb” modes programmable by day and time.
Products benefits
Installation
  • Flexible Mounting Options: wall installation with included bracket or table base with optional accessory support, adaptable to various environments.
Usage
  • Intuitive and Complete User Experience: touchscreen and app integration allow users to easily manage all functions, even remotely.
Advantages
  • Attractive design and advance technology
  • Compatibility with Netatmo Ecosystem enables quick and easy creation of an integrated smart security system.
  • Sustainable Materials: Made of 80% recycled ABS plastic, with a focus on environmental responsibility.
Technical Characteristics
With video Yes
Number of indoor stations 1
Number of outdoor stations 1
Number of call buttons 2
Installation technique Bus system
Mounting method indoor station Surface mounted
Colour indoor station Black
Mounting method outdoor station Surface mounted
Material outdoor station Aluminium
Colour outdoor station Black
Picture system PAL
Property picture system Colour
Overhear protected No
Can be connected to smartphone Yes
Internal communication Yes
Hands free Yes
With day/night function Yes
Opening angle camera 105 °
Zoom, pan/tilt function No
With memory function Yes
Screen diagonal 177.8 mm
Screen diagonal (inch) 7 inch
Manual adjustable camera No
Label space/information surface Yes
Hearing aid compatible No
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Width 172 mm
Height 125 mm
Depth 19 mm
Built-in depth 0 mm
degree of impact strength (IK) IK07
Degree of protection (IP) IP54
Operating / setting temperature (Min-Max) 5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type DC
Nominal voltage (Min-Max) 18-27 V
Supply current (Min-Max) 0.038-0.55 A
Sound level 80 dB
Halogen free Yes
Antimicrobial treatment No
Cable nature for connection Flexible or rigid
Fitted with rainproof plate protection Yes
With complemantary luminous signal Yes
Mounting method Supporting bracket
Vertical fixing center distance (Min-Max) 60-75 mm
Horizontal fixing center distance (Min-Max) 60-82 mm
Contains Batteries and/or Accumulator No
Loudness setting Yes
Addressable Yes
Door entry system with mobile application Yes
Number of ringtones 15
Remote opening of gate / Electric door opener Yes
Screen resolution Other
Screen brightness setting Yes
Screen contrast setting Yes
Memory video function Yes
Camera type Fixed
Max distance between internal and external unit 200 m
Connected object Yes
Operating method Wifi network 2.4G, SCS
Application store for download App Store, Google Play Store
Programming way Remote
With voice command No
Interoperable connection Protocol No
Connectable by Internet box Yes
Application name Home + Security
Product use function Door entry systems
