Linea 3000 BTicino

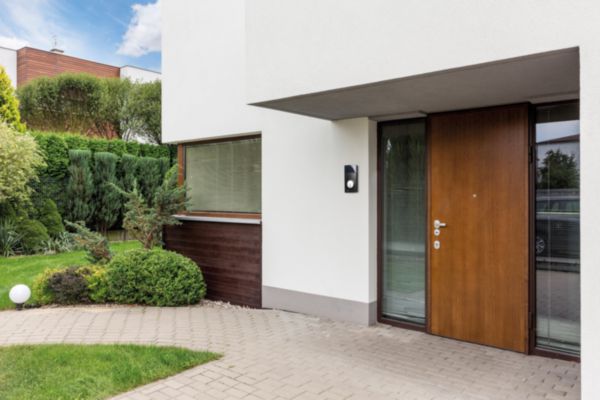

Hands-free connected video kit with Linea 3000 Black and Classe 300EOS

BT-363916 | 8005543678954

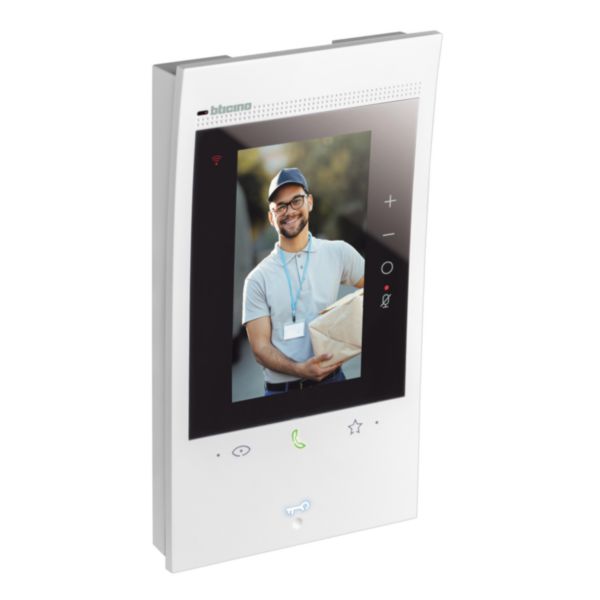

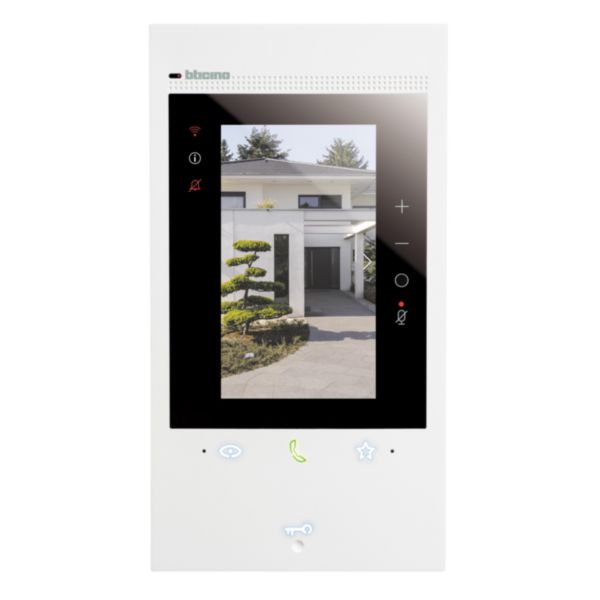

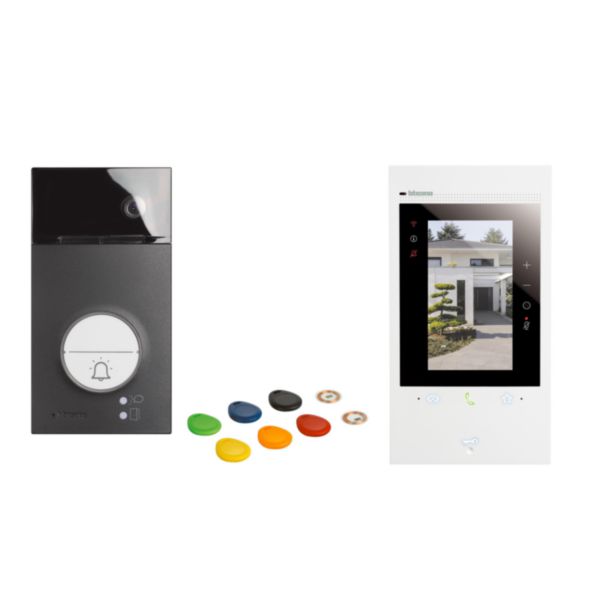

One-family hands-free kit with : connected MX / Classe300X hands-free video internal unit with teleloop and LINEA 3000 pushbutton panel in Black finish.Connected 2-wires / Wi-Fi hands-free video internal unit with integrated Amazon Alexa voice assistant, 5 ” vertical LCD touch screen display, video door entry answering machine and teleloop function for use by hearing aids equipped with selector (T). It is equipped with a physical key for opening the lock and capacitive keys for controlling the main video door entry functions: hands-free communication, activation of the external unit / camera cycling and favorite key (configurable to activate the quick actions that the user uses most frequently - eg . additional locks, staircase Light control, intercom). There are signaling LEDs for : connection status to the Wi-Fi network, info / notifications and call exclusion.It is possible to interact with the integrated Alexa voice assistant via dedicated capacitive keys or with the voice to activate video door entry functions, smart home functions, routines, reminders etc. Through the touch display it is possible to access the notification list, the favorite video door entry, security and smart home commands (if present). Possibility of voice communication with porter switchboard - if present in the system - upon specific call. The device must be configured through physical insertion of the configurators or from the menu, taking advantage of a greater possibility of customizing the functions and associated texts. Thanks to the Wi-Fi connection it is possible to associate the video internal unit with the Home + Security App (available for Android and iOS). The App allows you to use the main functions of the video door entry unit (call reception, lock opening, display of the event timeline and activation of the external unit / camera cycling. Through the Home + Security App it is also possible to manage the products of the Netatmo Security offer (outdoor and indoor cameras, door and window sensors, indoor siren, smoke detector, doorbell with video camera and smart lock). This allows you to quickly and easily create a Smart security system. The device also allows you to create and manage smart home solutions both BUS SCS and Zigbee technology, without adding dedicated gateways. Wall installation with bracket included. Possibility of Wi-Fi connection or via RJ45 ethernet cable using the dedicated accessory BT-344844. LINEA 3000 pushbutton panel with front panel in Black finish zamak, wide-angle color camera, proximity reader and a kit of colored badges and two clear discs for lock opening. Configurable for single-family and two-family installations. It can manage up to a maximum of 20 badges (125 KHz) for opening an electric lock (including the one for managing the system). Name tag illuminated by white LED. Can be wall or flush mounted with the specific accessories: (350020) flush mounting box and (343063) flush mounting accessory - to be purchased separately. Can be equipped with rain roof (343053) - to be purchased separately. The push button panel has an IP54 degree of protection - IK10 degree of robustness.
Description

KIT: 2 WIRES/Wi-Fi video internal unit with Alexa built-in with teleloop, 5" vertical touch display to see notifications & favorites, key for intercom, open locks and see camera; Home+Security App. LINEA 3000 entry panel in black finishing

Product characteristics
  • Alexa built-in device: it is possible to interact with Alexa with dedicated capacitive keys or with the voice to activate video door entry functions, smart home functions, routines, reminders etc.
  • 5" vertical touch display with possibility to customize favorites, see notification and check answering machine. With teleloop

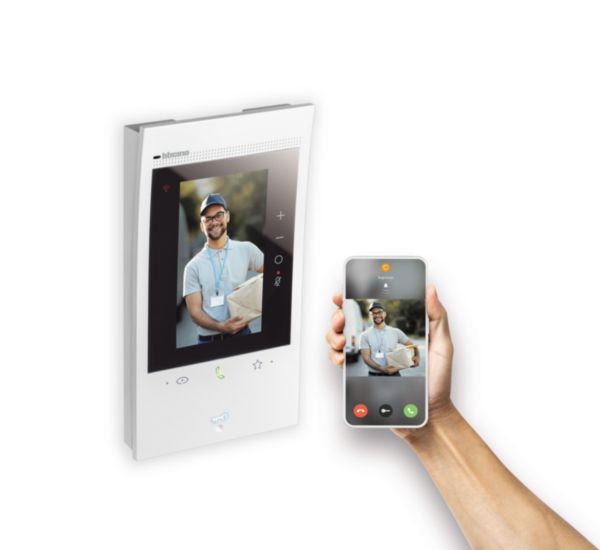

  • Smart security products natively integrated. Home+Security App to manage the security and door entry system remotely
  • The indoor unit also allows to create and manage both BUS SCS and Zigbee Smart Home solutions without adding dedicated gateways
  • LINEA 3000 entry panel in black matte finishing for one or two calls.
Products benefits
Installation
  • Traditional 2-WIRES installation and connectivity via Wi-Fi or Ethernet (with dedicated accessory BT-344844). The configuration is possible through device menu or using the configurators. Wall installation with bracket included
Usage
  • Alexa built-in voice service to manage your home and daily activities; intuitive vertical 5" touch display and Home+Security App to manage the security devices and door entry system.
Advantages
  • Alexa built-in gives the possibility to exploit all Alexa functions and activate video door entry functions, smart home functions, routines, reminders using the voice
  • Possibility to integrate Netatmo security devices such as smart camera, window and door sensor, smart siren and smoke sensor. From the H+S App is possible to manage all the door entry and the smart security functions.
  • New and modern design with vertical 5" touch display to access the notification list, the favorite video door entry, security and smart home commands. Entry panel with elegant black matte finishing and one or two calls.
Technical Characteristics
With video Yes
Number of indoor stations 1
Number of outdoor stations 1
Number of call buttons 2
Installation technique Bus system
Mounting method indoor station Surface mounted
Colour indoor station White
Mounting method outdoor station Surface mounted
Material outdoor station Aluminium
Colour outdoor station Black
Picture system PAL
Property picture system Colour
Overhear protected No
Can be connected to smartphone Yes
Internal communication Yes
Hands free Yes
With day/night function Yes
Opening angle camera 110 °
With memory function Yes
Screen diagonal 127 mm
Screen diagonal (inch) 5 inch
Manual adjustable camera Yes
Label space/information surface Yes
Hearing aid compatible Yes
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa Yes
IFTTT support available No
Width 130 mm
Height 230 mm
Depth 40 mm
degree of impact strength (IK) IK07
Degree of protection (IP) IP54
Operating / setting temperature (Min-Max) -25-70 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC/DC
Nominal voltage (Min-Max) 20-27 V
Supply current (Min-Max) 0.04-1 A
Frequency (Min-Max) 50-60 Hz
Sound level 80 dB
Standby consumption 215 mA
Halogen free Yes
Antimicrobial treatment No
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 0.28-2.5 mm²
Fitted with USB plug Yes
Fitted with rainproof plate protection Yes
With complemantary luminous signal Yes
Mounting method Surface mounted/recessed mounted
Control mode Wireless
Contains Batteries and/or Accumulator No
Additional unit Yes
Loudness setting Yes
Addressable Yes
Door entry system with mobile application Yes
Number of ringtones 6
Remote opening of gate / Electric door opener Yes
Screen resolution 1280x720
Screen brightness setting Yes
Screen contrast setting Yes
Memory video function Yes
Camera type Fixed
Video recorder angle 110 °
Max distance between internal and external unit 200 m
Communication rank type Other
Connected object Yes
Operating method Wifi network 2.4G, SCS
Application store for download App Store, Google Play Store
Programming way Smartphone apps
With voice command Yes
Programmable No
Interoperable connection Protocol No
Connectable by Internet box Yes
Compatible voice assistants Amazon Alexa
Application name Home + Security, Home + Control
Product use function Door entry systems
