Sfera BTicino

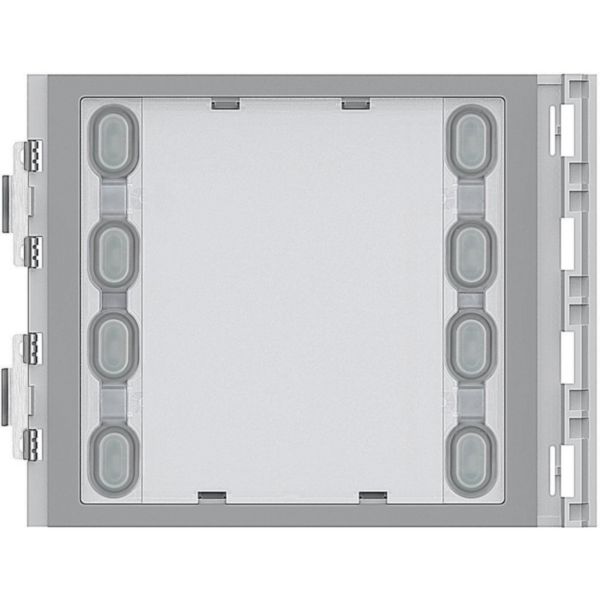

Sfera additional 8-pushbutton modules on double column

BT-352100 | 8005543441602
Sfera additional 8-pushbutton modules arranged on double column. To be used with speaker modules 351000 – 351100 and audio/video modules 351200 - 351300. Connection by the multicable supplied. BackLighting of nameplates controlled by the speaker module or the audio/video module connected. To be completed with surround plate.
Description

Sfera additional 8-pushbutton modules arranged on double column. To be used with speaker or audio/video modules. To be completed with surround plate.

Product characteristics
  • 1 Sfera module
  • Dimension: 91X115 mm
  • To be used with speaker modules 351000 – 351100 and audio/video modules 351200 - 351300.
Products benefits
Advantages
  • Sfera modular system features modern look suitable for all types of homes.High perception of quality and sturdiness across the whole range.
Technical Characteristics
Model Speak/ring
Installation technique Bus system
Width 91 mm
Height 115 mm
Depth 27 mm
Number of call buttons 8
Colour Other
Connected object No
Documentation
1 documents
Technical Sheet
BT00600-A-EN | PDF (368 KB) | EN
1 documents
PEP-EPD
LGRP-00223-V01.01-EN | PDF (975 KB) | EN
1 documents
Catalog Commercial Page
3248522 | PDF (2.3 MB) | EN
