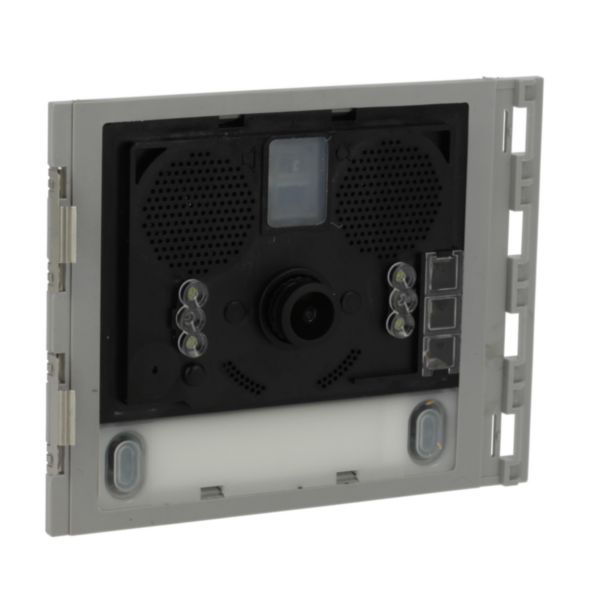

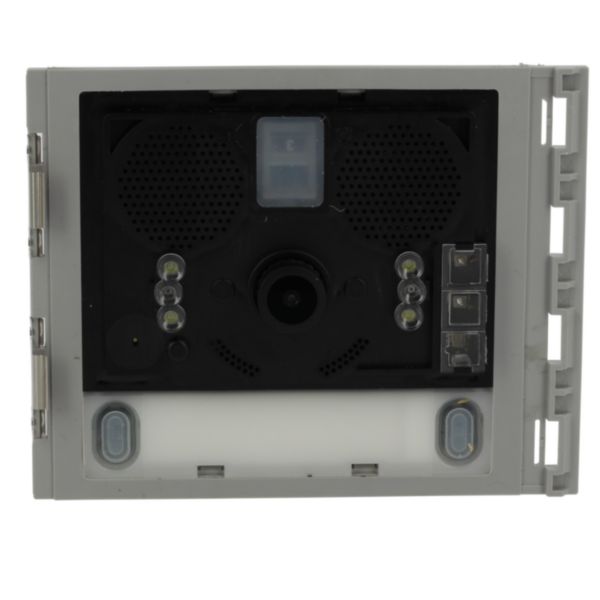

Sfera wide-angle audio video module with 5 MP HQ Camera for the creation of 2-wires video door entry systems

Sfera audio video module with HQ Camera for the creation of 2 WIRES video systems. Equipped with a wide-angle 5 MP HQ Camera with digital filters and white LEDs for illumination of the shooting field. The video signal is transmitted to the video intercoms via PAL coding on 2-wires SCS BUS technology. Speaker and microphone volume adjustments. Manages up to a maximum of 98 button calls using additional double row button modules. Horizontal viewing angle (119°), vertical viewing angle (92°). It allows the activation of an electric door lock connected directly to the S+ and S- terminals (18 V 4 A impulsive - 250 mA maintenance at 30 Ohm max) and the connection of a local door lock release button to the PL terminals. Prepared for additional power supply. Equipped with front LEDs and multilingual voice synthesis (can only be activated from the TiSferaDesign software) to signal the operating status: door opener, active communication, call forwarded and system busy. Integrated optical sensor for turning on the backLight at night. To be completed with finishing front plate. The device must be configured physically or via PC and specific software - downloadable for free from the website www.homesystems-legrandgroup.com.
